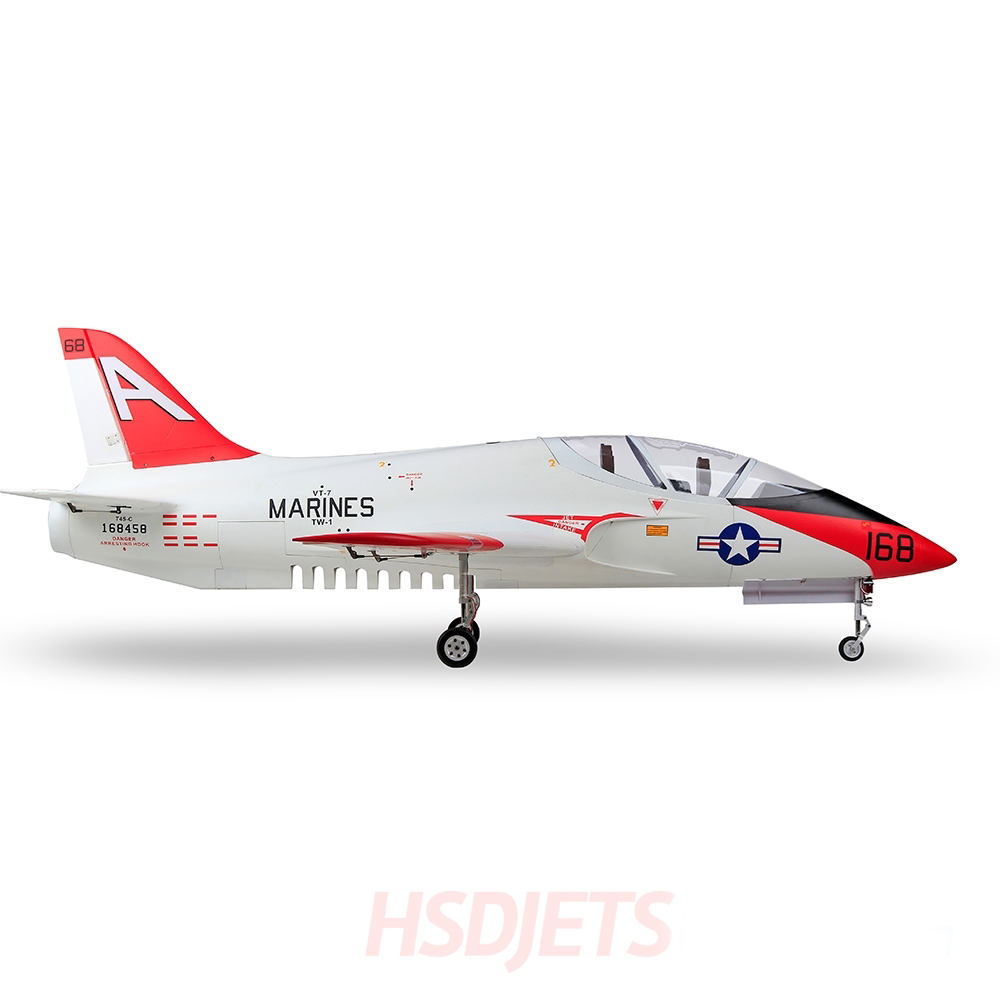

HSDJETS Super Viper V4 Navy Colour 105mm S-EDF 12S PNP


Availability: In stock

SKU: HSDA01070402J Category:






Q: What does PNP mean?
A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed. *Note: If bought with a turbine, the turbine will not be pre-installed.

Weight27.5000 kg
Dimensions52.5600 × 21.3000 × 16.9300 cm
Add Turbine

No Thank You, Swiwin SW-60B (6kg Thrust)



Wingspan1500mm (59.1in)
Length1663mm (65.5in)
Flying Weight5kg (11 lb) with 12S Battery
S-EDF/MotorS-EDF 105mm 4258/700KV brushless
Number of EDF Blade11 blades
Cruising speedabout 180 km/h
Flying timeabout 3-5 mins
Wing area34.28 dm2
Wing load145.9 g/dm2
Main material35 times EPO
Painting surfacematte paint
Suitable experience level□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System7 channel (required & not included)
ESC160A/12S Hobbywing AS150
UBEC6A (2P Du-Pont and JR connector)
Control SystemIntegrated Mix-Control system
Servos25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward)
25g×2 Metal gear with 480mm lead (Flap forward)
25g×2 Metal gear with 80mm lead (Elevator forward)
12g×1 Metal gear with 450mm lead (Nose wheel steering forward)
12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward)
Recommended Receiver Battery2S,7.4V,1800~2000mAh,LiPo with T type plug(required & not included)
Recommended Power Battery6S,22.2V,5000~6000mAh×2,LiPo with AS150 type plug(required & not included)
Elevator(Horizontal tail)Yes

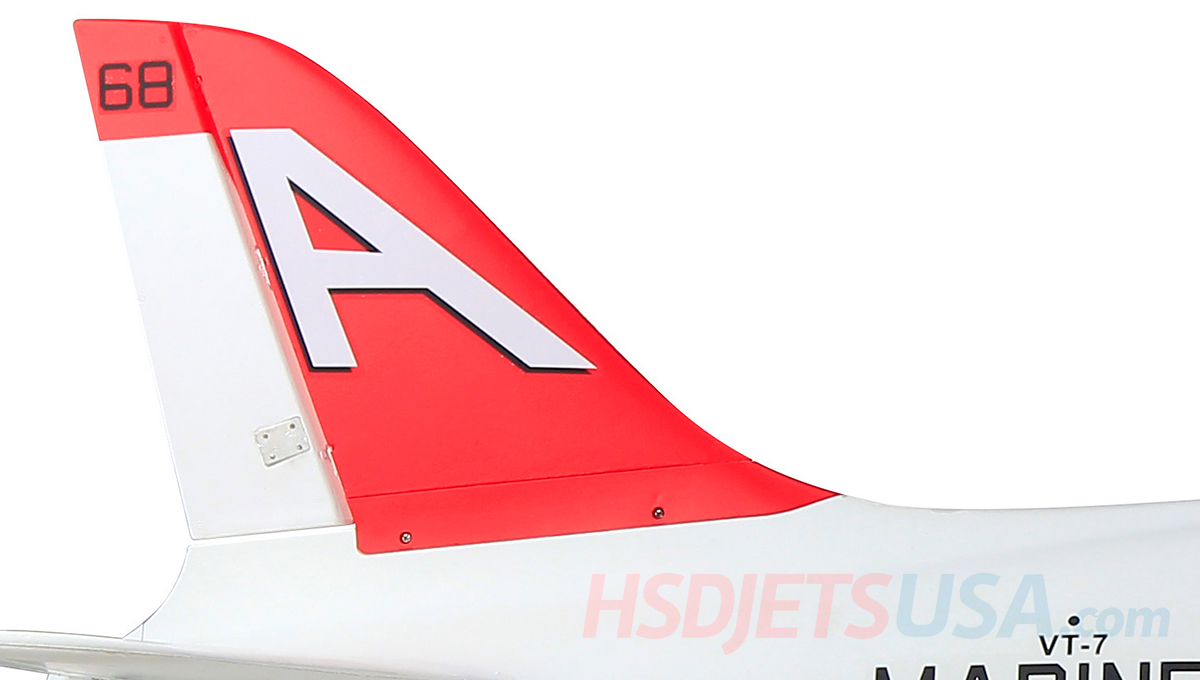

Rudder(Vertical tail)Yes
General landing gear control systemYes
LED lights systemYes
Electromagnetic brake systemYes
Reinforced gyroSelective configuration (not included)
Packaging / SizePacking Box + Outer Box(Card mark)/132.5×46×39.5(cm)
CG (Centre of Gravity)6.69in from the leading edge of the Main Wing

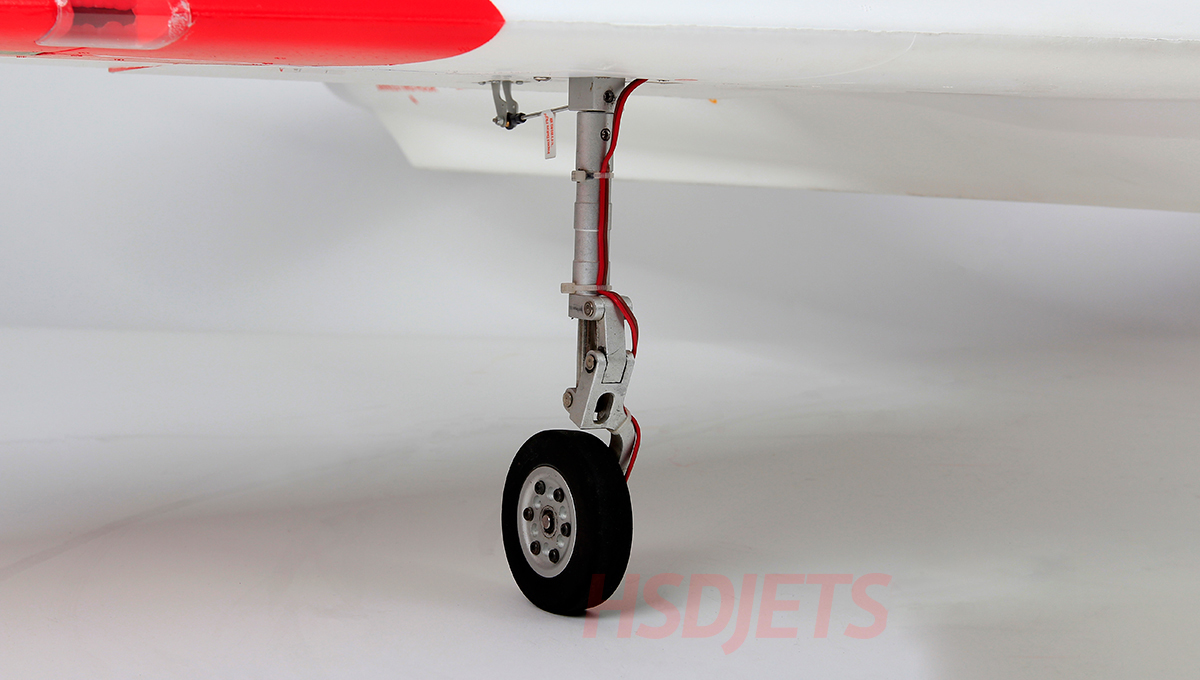

Landing GearsMetal electric retractable hydraulic landing gear×3
Battery ChargerLiPo battery charger (required & not included)


  • Fuselage×1

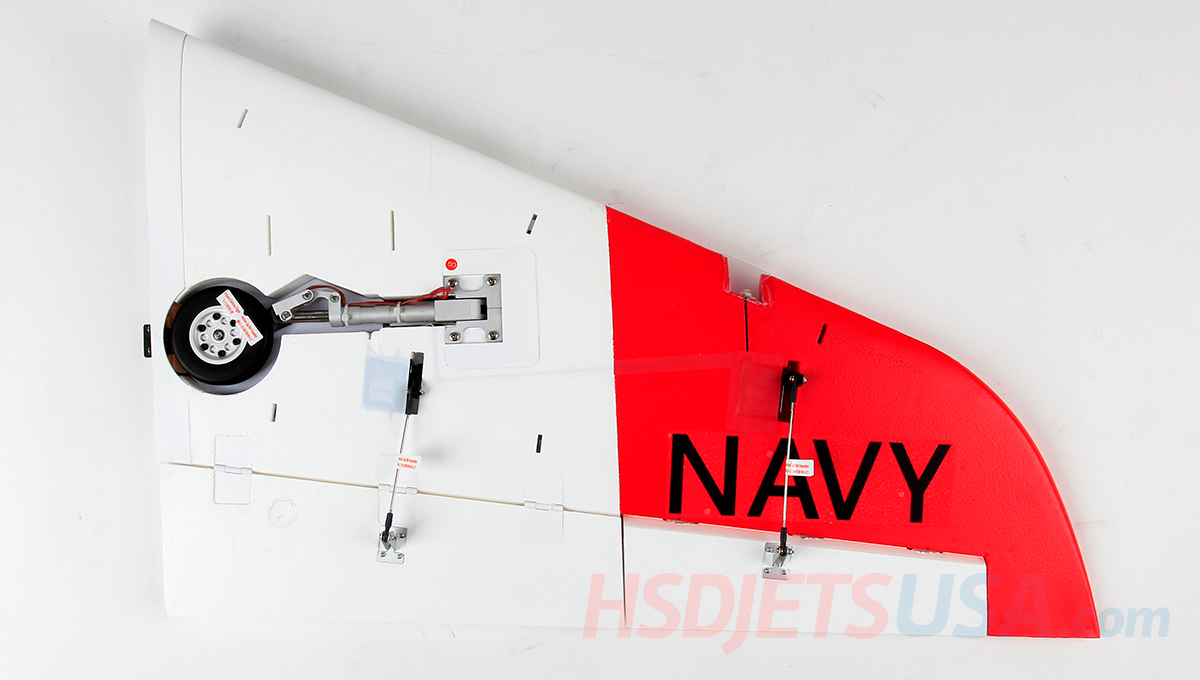

  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1
  • Nose×1
  • Cockpit canopy×1
  • Main wing aluminium tube L=598mm external diameter 16mm×1
  • Horizontal Stabilizer tube L=500mm external diameter 6mm×1
  • Sticker×1
  • Accessories Bag 1 ×1
    • Screw (PWM4×35mm)×4 (Nose)
    • Screw (PM3×14mm)×2 (Wing)
    • Screw (PM3×10mm)×2 (Wing)
    • Screw (PA2×12mm)×4
    • Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
  • Manual×1


  • 7 channel radio system(radio & receiver) (required & not included)
  • 6S,22.2V,5000~6000 mAh LiPo with AS150 type connector×2(required & not included)
  • 2S,7.4V,1800~2000 mAh LiPo with T type connector×1(required & not included)
  • LiPo battery charger (required & not included)
