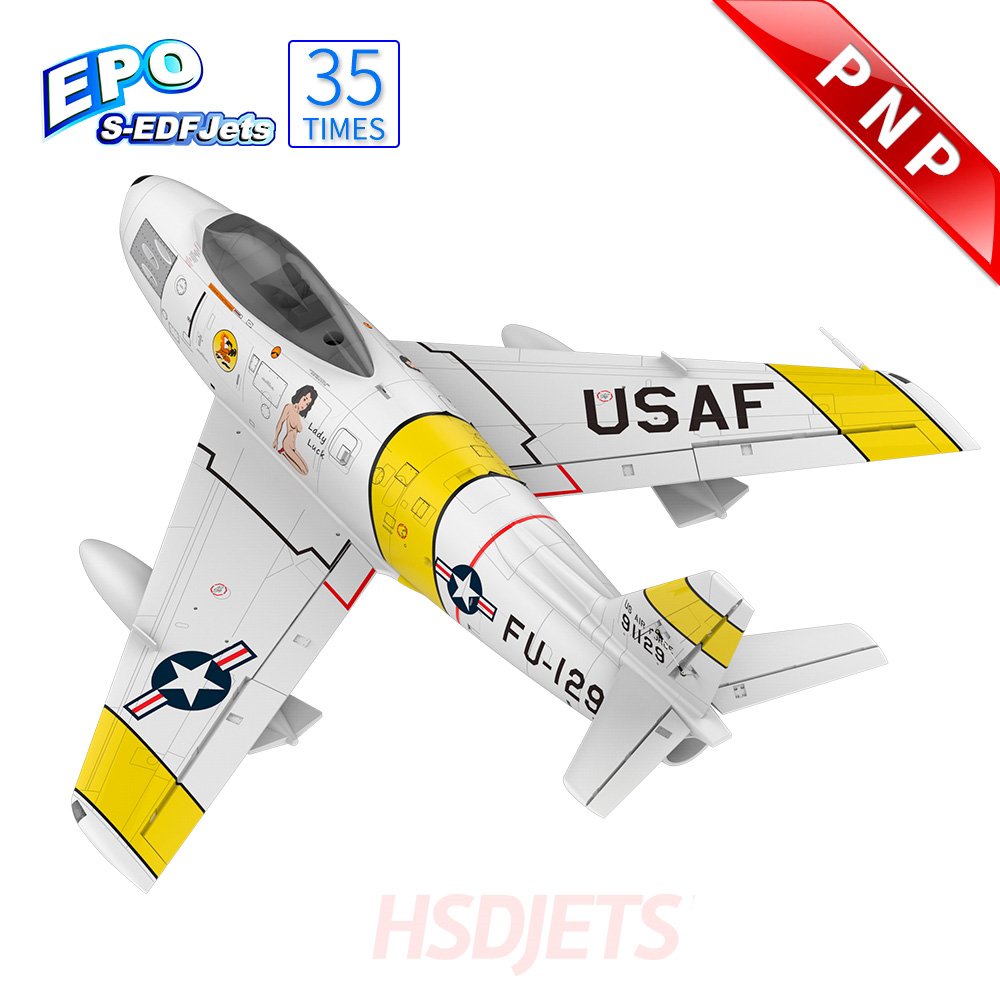

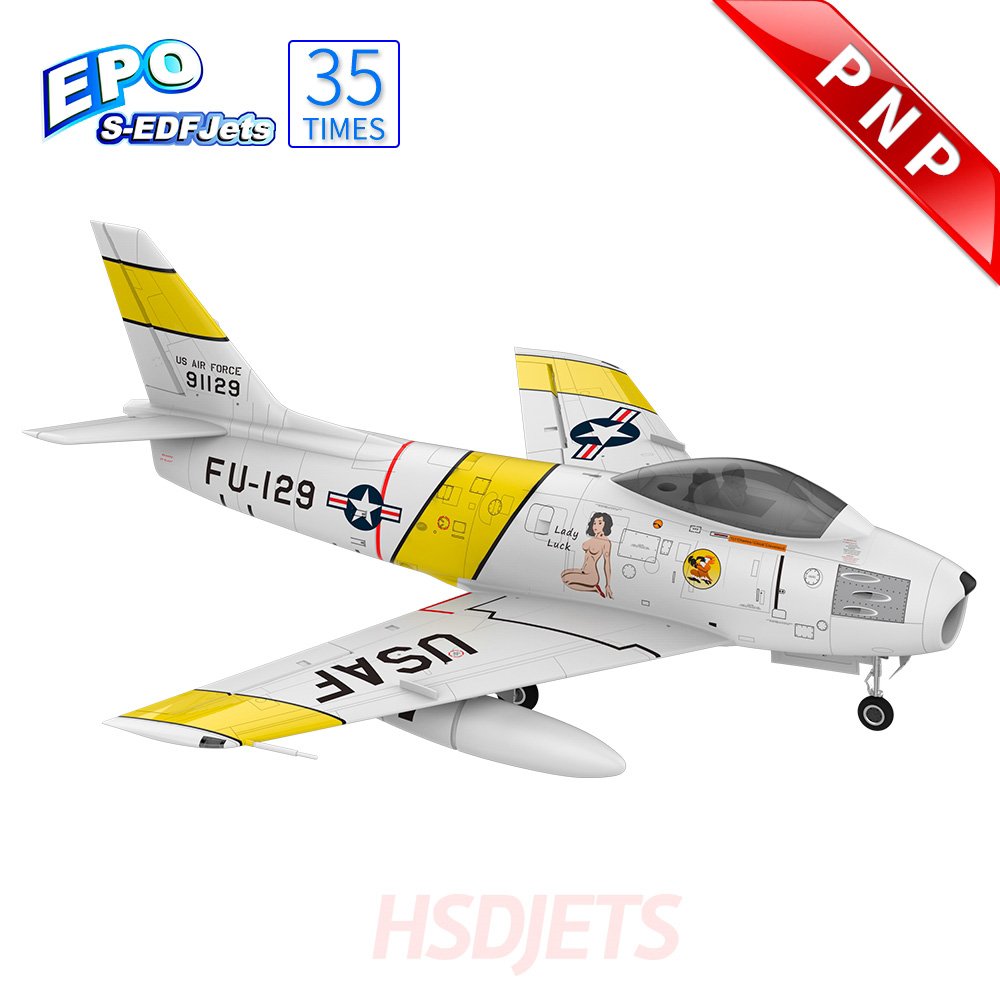

HSDJETS F-86 Yellow Ribbon S-EDF 120mm PNP 12s – Brand New Model

£1,199.00

Last One Remaining,

No dates on anymore shipping



Availability: In stock

SKU: A50 02 02 04 Category:



Q: What does PNP mean?

A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed.



Weight22.4400 kg
Dimensions57.6800 × 19.2900 × 13.1900 cm

Specifications

SPECIFICATIONS:

Wingspan1720 mm (67.7 in)
Length1715 mm (67.5 in)
Flying Weight8 kg (15.4 lb) with 6S / 22.2V / 5200mAh / 45C Li-Po×2 PCS
Flying time3~5 minutes
Wing area64.34 dm2
Wing load124.3 g/dm2
Main material35 times EPO
Painting surfaceMatte environmental water-borne paint + decal
Suitable experience level□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System8 channel (required & not included)

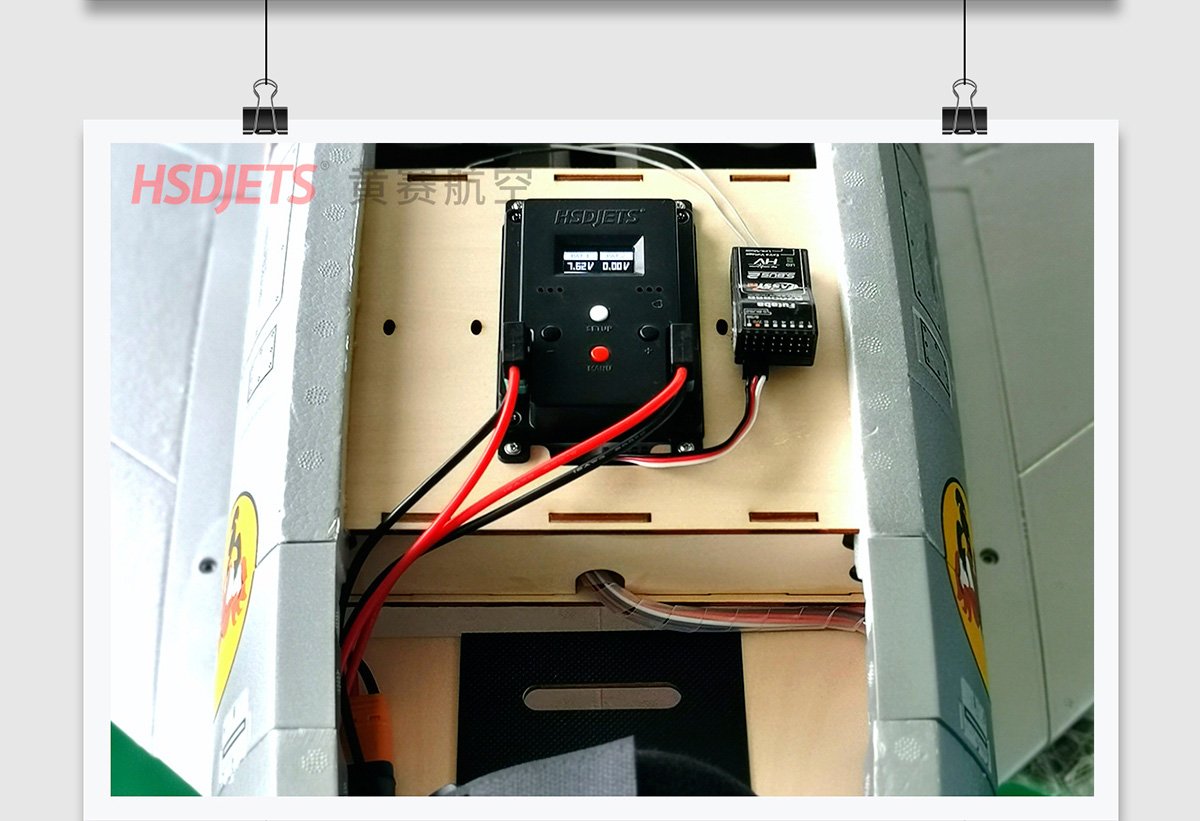

Control SystemMFC-2085
Motor5268-KV640(Inner rotor)

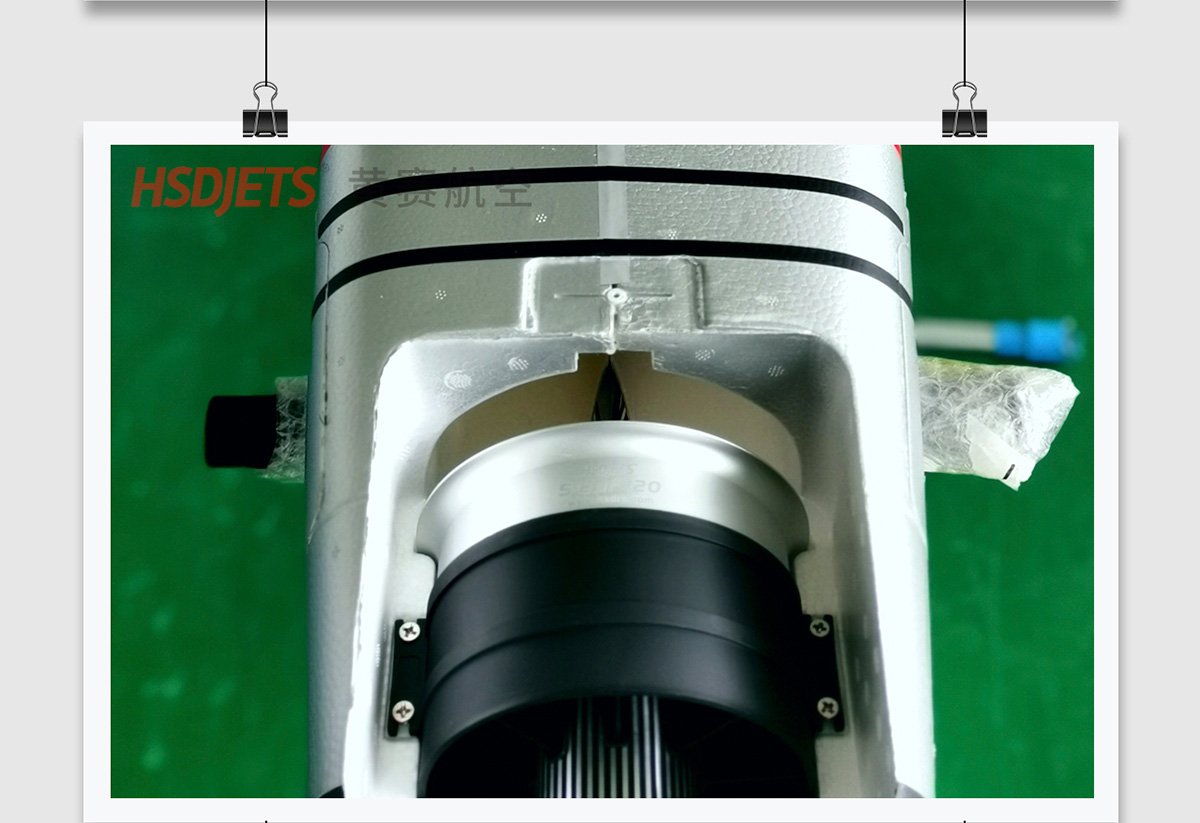

EDFS-EDF 120mm-10 blade
ESCHobbywing 160A brushless

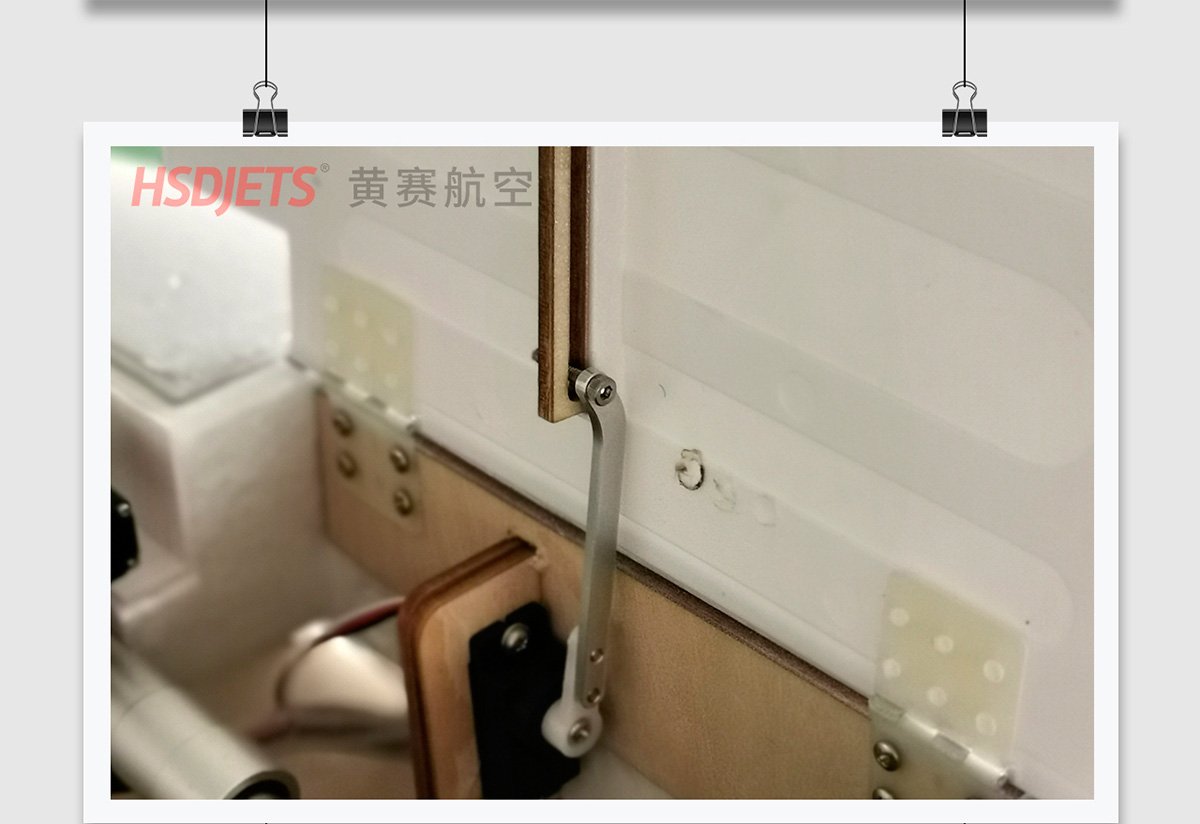

Servos25g×2 Metal gear with 560mm lead (Left & Right ailerons forward)
25g×2 Metal gear with 410mm lead (Left & Right flap forward)
25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward)
25g×1 Metal gear with 230mm lead (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)
Recommended Power Battery6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery2S,7.4V,2200~5200mAh×2,LiPo with XT60 type plug(required & not included)
AileronsYes

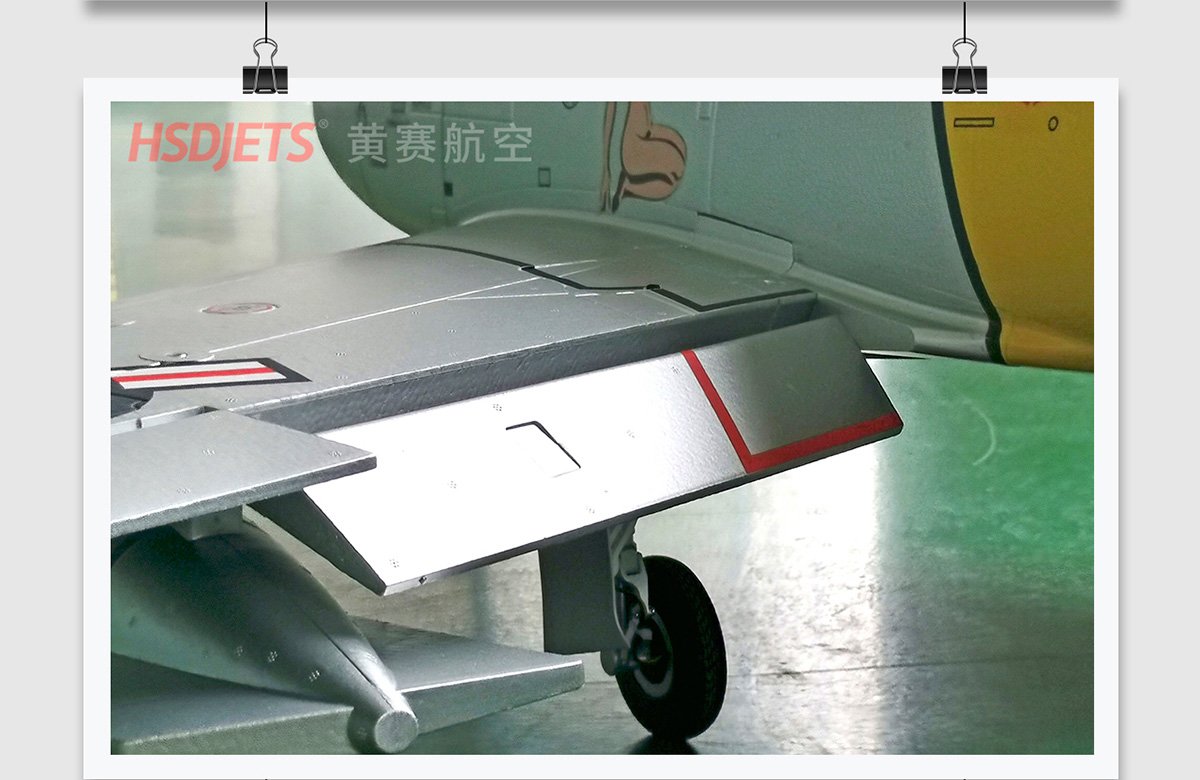

FlapsYes
Elevator(Horizontal tail)Yes
Rudder(Vertical tail)Yes
LED lights systemYes
Electromagnetic brake systemYes

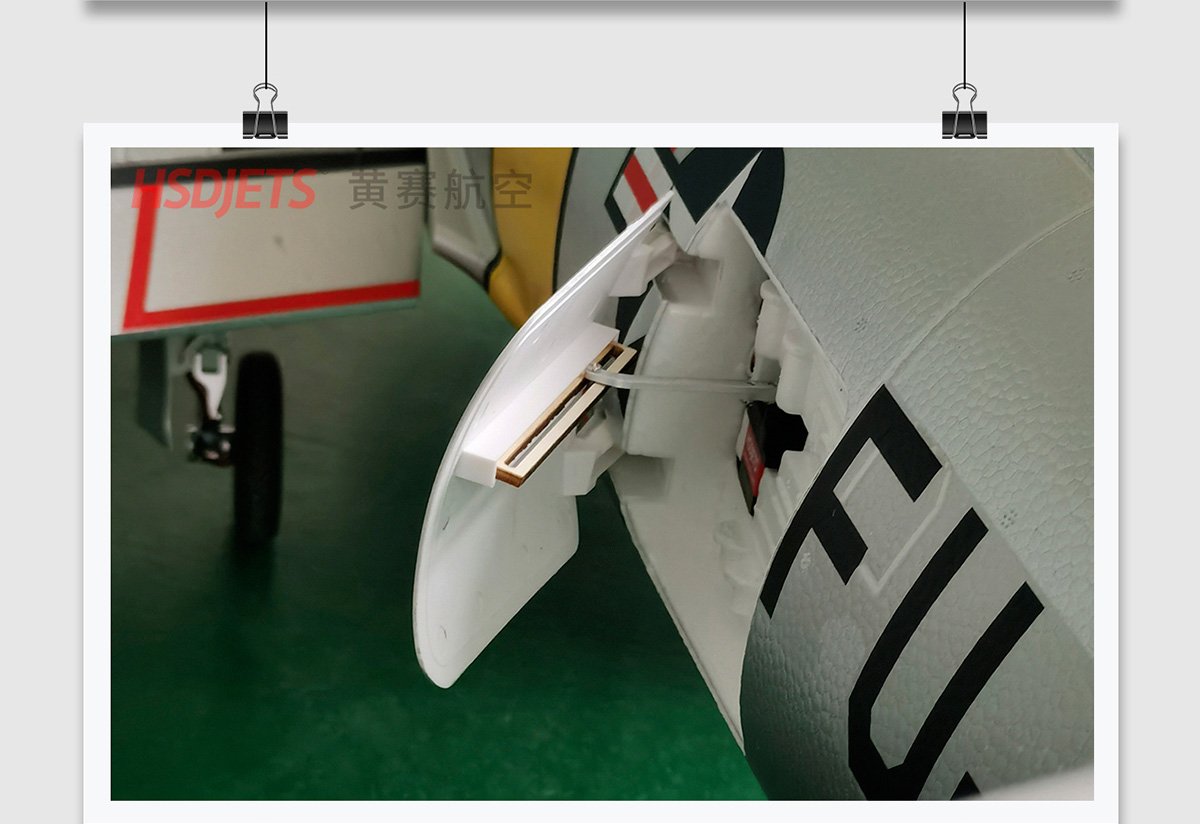

Retarder plateYes
Reinforced gyroSelective configuration (not included)
Packaging / SizePearl cotton 3D Inner box + Outer Box /1320×550×440(mm)
CG (Centre of Gravity)300~305mm from the leading edge of the Main Wing

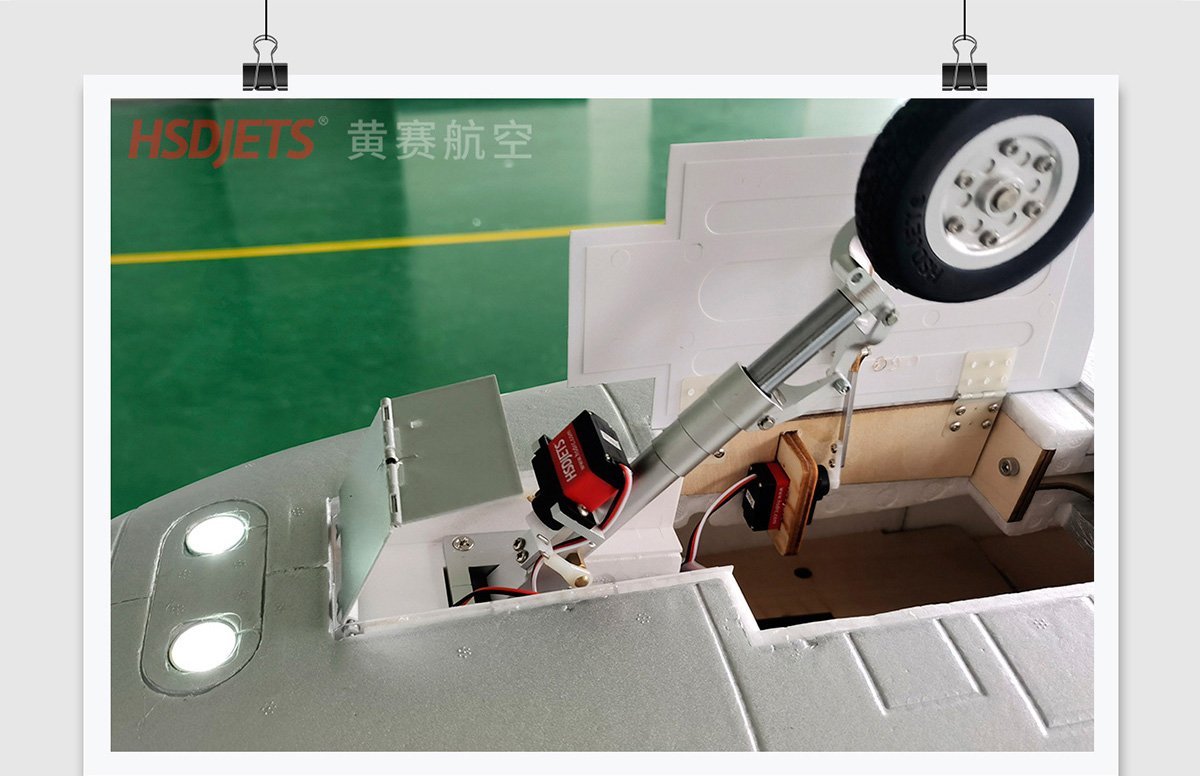

Landing GearsAll metal hydraulic simulation electric retractable landing gear×3
Battery ChargerLiPo battery charger (required & not included)

PACKAGE INCLUDES:

  • Fuselage×1 pcs
  • Left main wing×1 pcs
  • Right main wing×1 pcs
  • Nose×1 pcs
  • Cockpit×1 pcs
  • Vertical tail×1 pcs
  • Left Auxiliary oil tank×1 pcs
  • Right Auxiliary oil tank×1 pcs
  • Horizontal tail ×1 pcs
  • Main wing bolt rod 1 L=720mm external diameter 20mm×1 pcs
  • Accessories Bag 1 ×1 pcs
    • Screw (HA4×45mm)×4 pcs (Horizontal tail)
    • Screw (HM4×20mm)×4 pcs (Main wing)
    • Screw (HM4×16mm)×4 pcs (Main wing)
    • Screw (HA3×10mm)×16 pcs (Vertical tail)
    • Screw (HM4×60mm)×4 pcs (Nose + Fuselage)
    • Screw (HM4×70mm)×8 pcs (Auxiliary oil tank)
  • Accessories Bag 2 ×1 pcs
    • 100mm signal line(JR male+JR male)×8 pcs
    • Head fixed plastic parts×4 pcs
    • 3mm L-type hexagon wrench×1 pcs
    • 4mm L-type hexagon wrench×1 pcs
    • Wing antenna ×1 pcs
  • HME-262 Manual×1 pcs
  • MFC-2085 Manual×1 pcs


REQUIRES:

  • 8 channel radio system(radio & receiver) (required & not included)
  • 6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug (required & not included)
  • 2S,7.4V,2200~5200mAh×2,LiPo with XT60 type plug (required & not included)
  • LiPo battery charger (required & not included)

Videos





Manuals

HSDJETS S-EDF 120mm F86 Setup Manual PDF
