HSDJETS ME-262 Green Camo Colour S-EDF 90mm PNP 6S Twin

£1,249.99

Now In Stock

Availability: In stock

SKU: A64 01 02 00G Category:



Q: What does PNP mean?

A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed.

HSDJETS-Double-S-EDF90mm-HME-262-PNP-Assembly-and-Pre-Flight-Instructions.pdf

HSDJETS-MFC-2085-ENGLISH-MENU-INTRODUCTION-QUICK-ENTRANCE.PDF

Weight25.0000 kg
Dimensions53.0000 × 21.0000 × 17.0000 cm

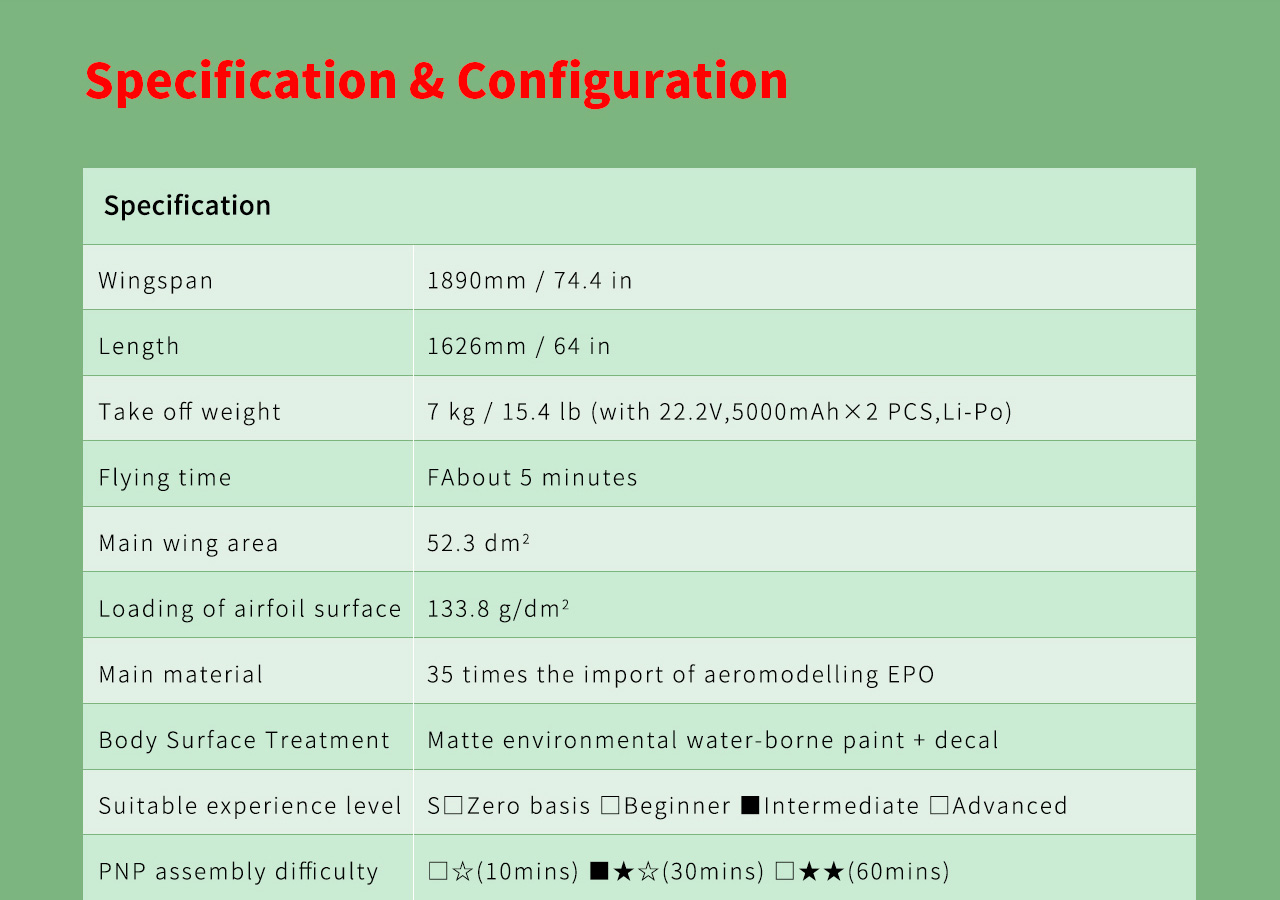

Specifications

Wingspan1890 mm (74.4 in)
Length1626 mm (64 in)
Flying Weight7kg (15.4 lb)
Flying timeAbout 5 mins
Wing area52.3 dm2
Wing load133.8 g/dm2
Main material35 times EPO

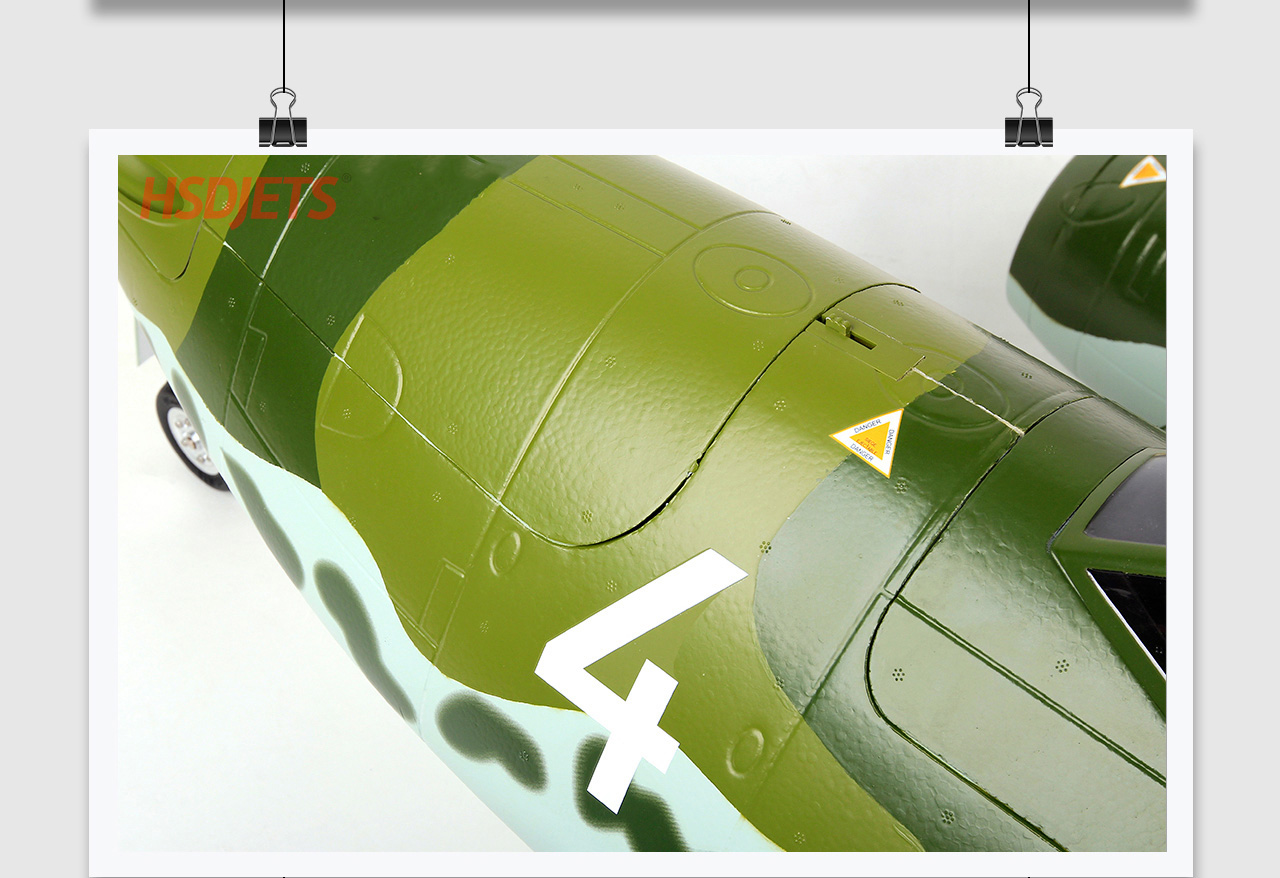

Painting surfaceMatte environmental water-borne paint + decal
Suitable experience level□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System7 channel (required & not included)
Control SystemMFC-2085-DR
Motor3560-1550KV(Outer rotor)×2 pcs

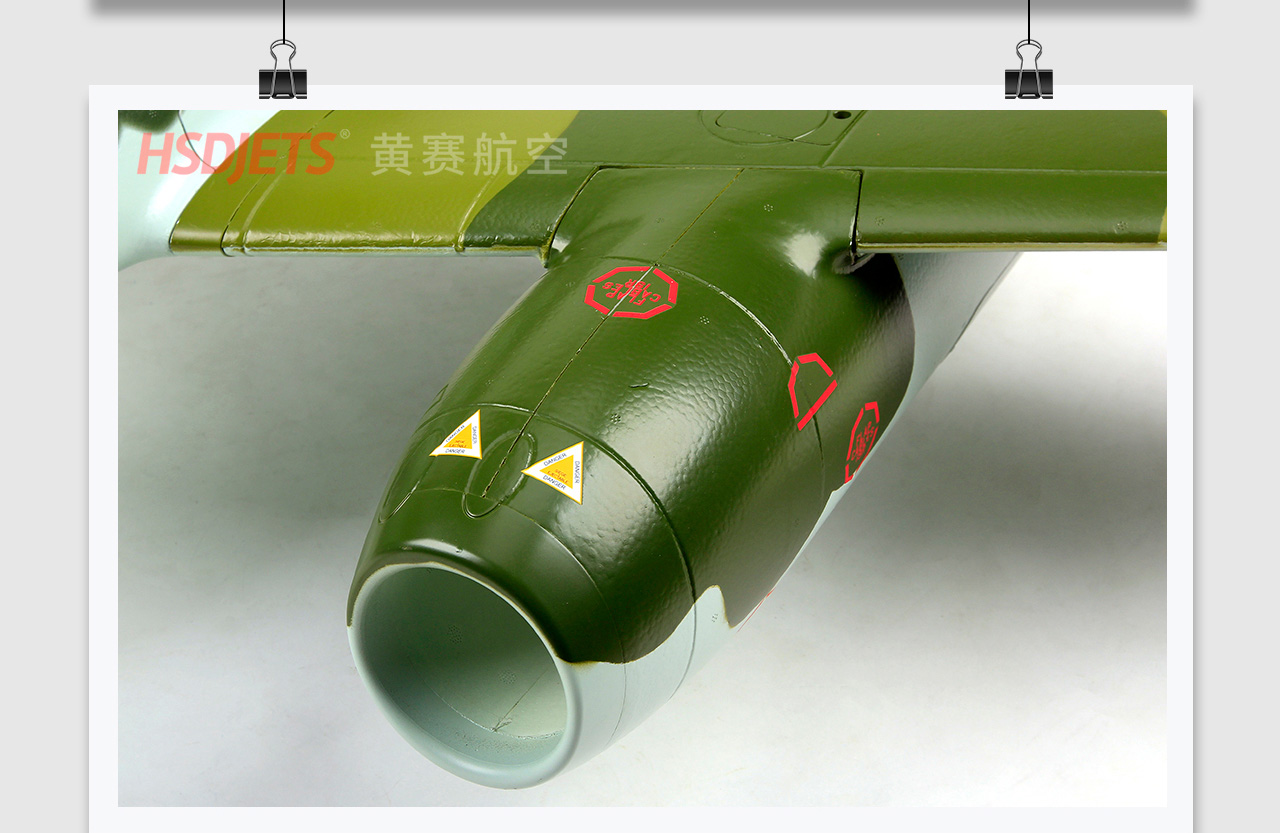

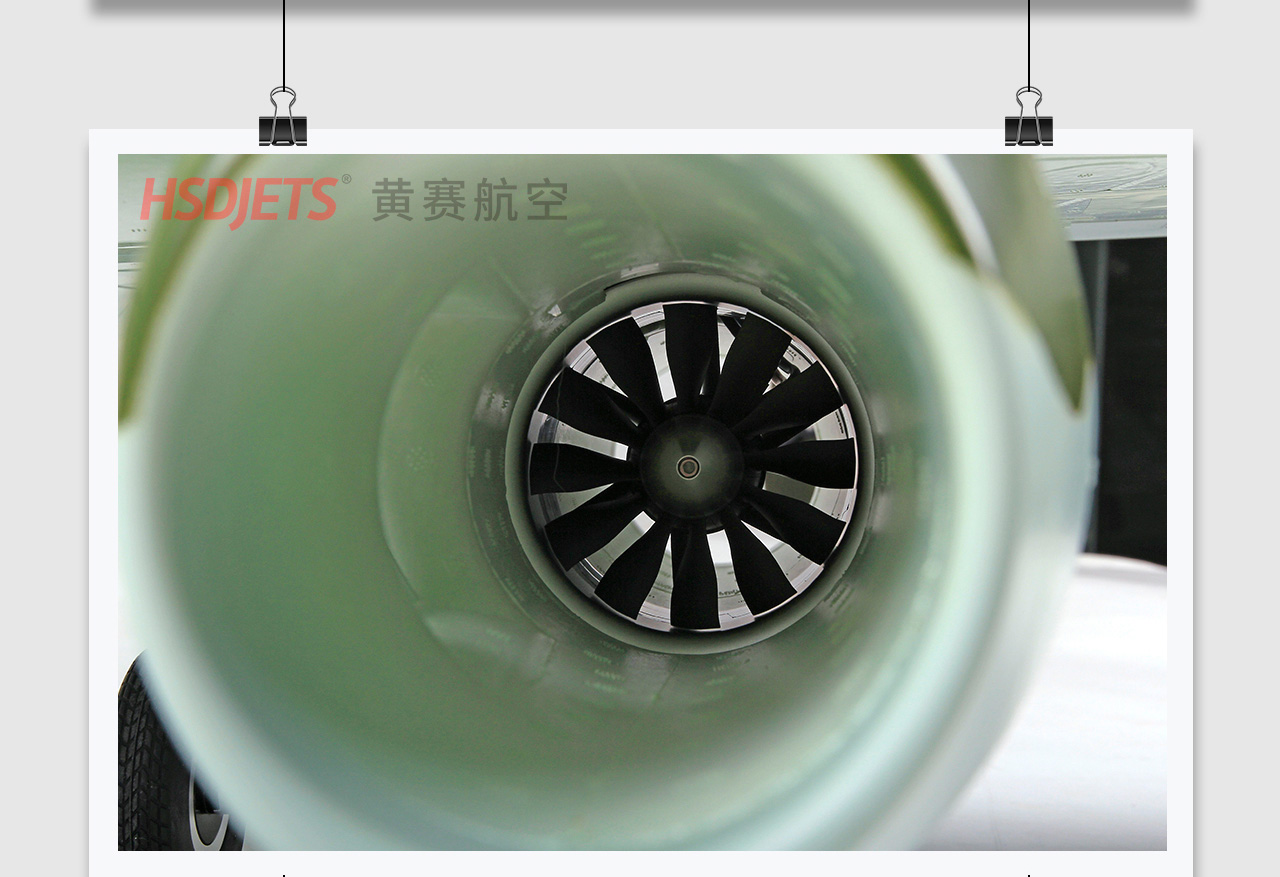

EDFS-EDF 90mm 12 Blade×2 pcs
ESC100A×2 pcs

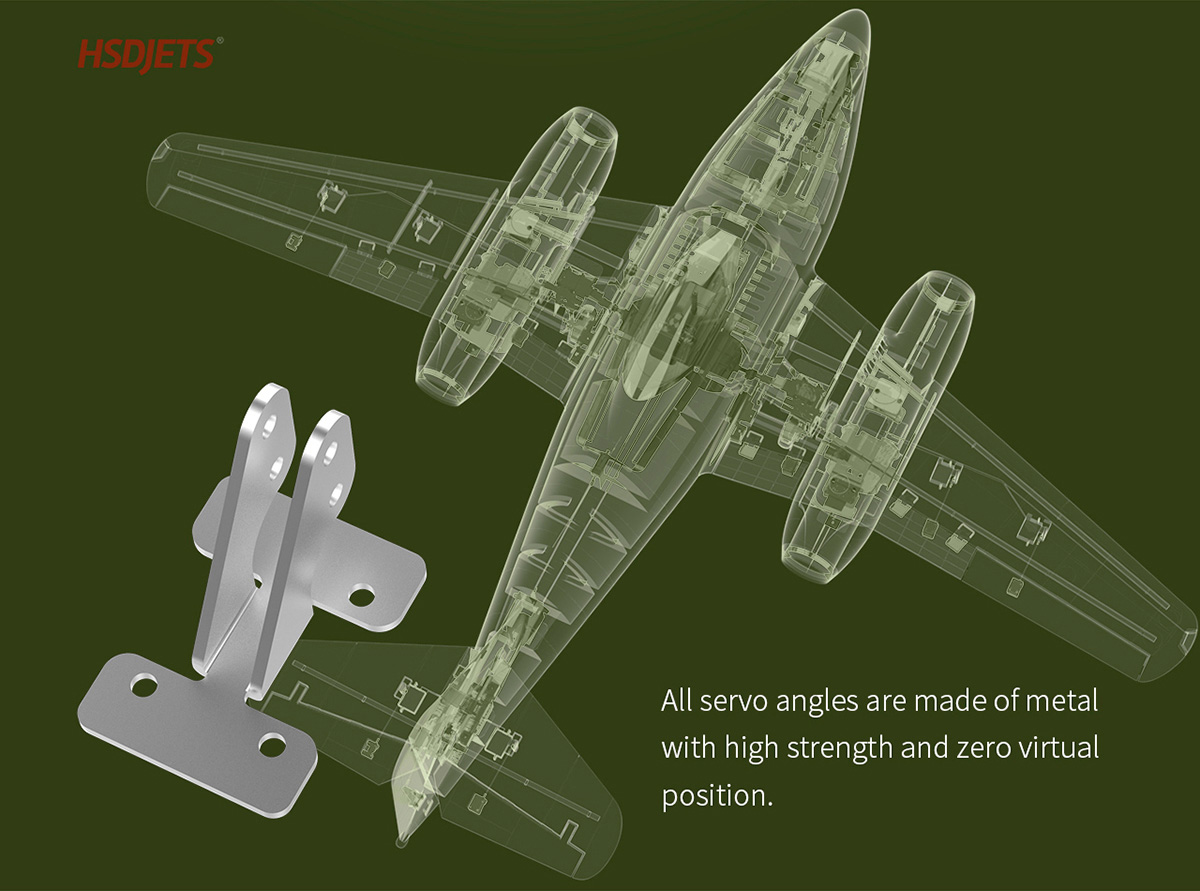

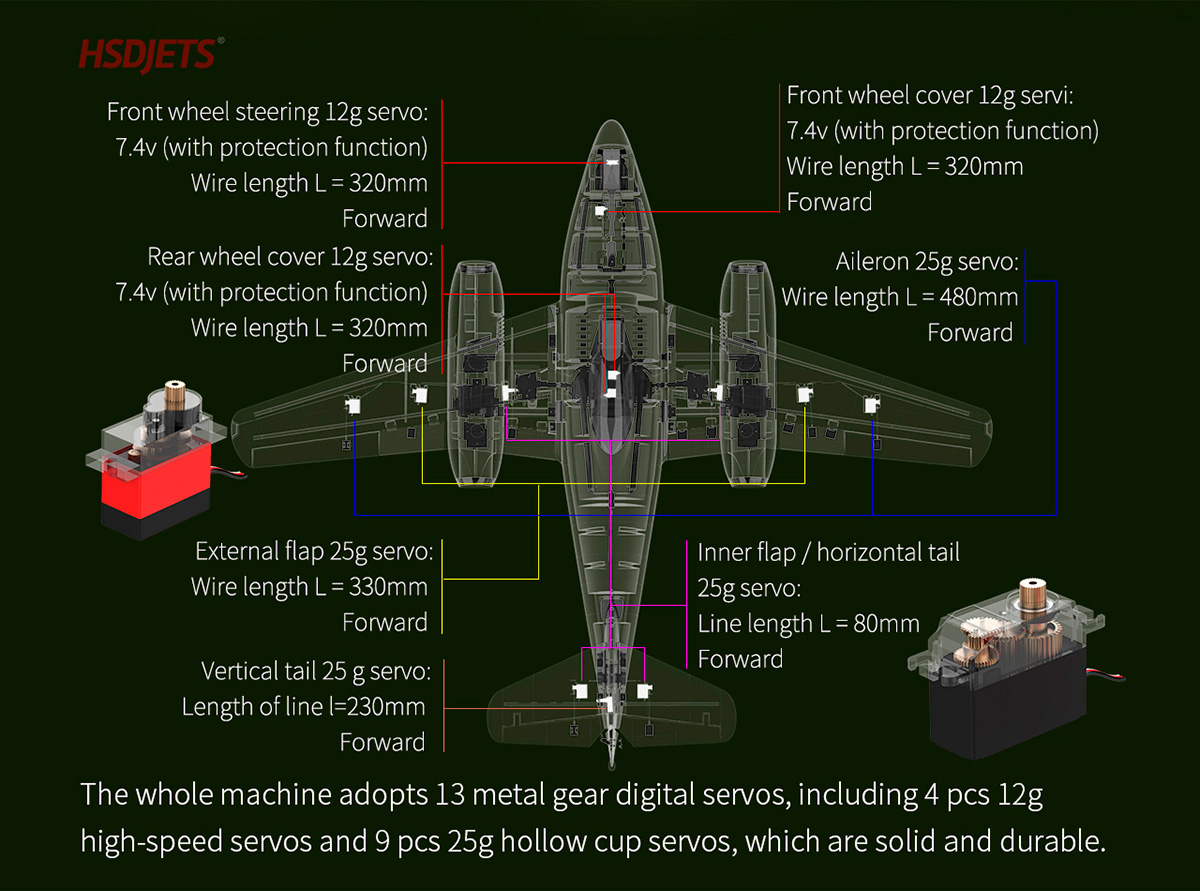

Servos25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×2 Metal gear with 330mm lead (left & right outer flap forward)
25g×1 Metal gear with 230mm lead (Vertical tail forward)
25g×4 Metal gear with 80mm lead (Elevator×2 & L/R inner flap forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Nose wheel steering forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Rear wheel cover plate forward)
Recommended Power Battery6S,22.2V,5000~6000mAh,45C×2,LiPo with XT90 type plug(required & not included)
Recommended Receiver Battery2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug(required & not included)
AileronsYes
FlapsYes
Elevator(Horizontal tail)Yes
Rudder(Vertical tail)Yes

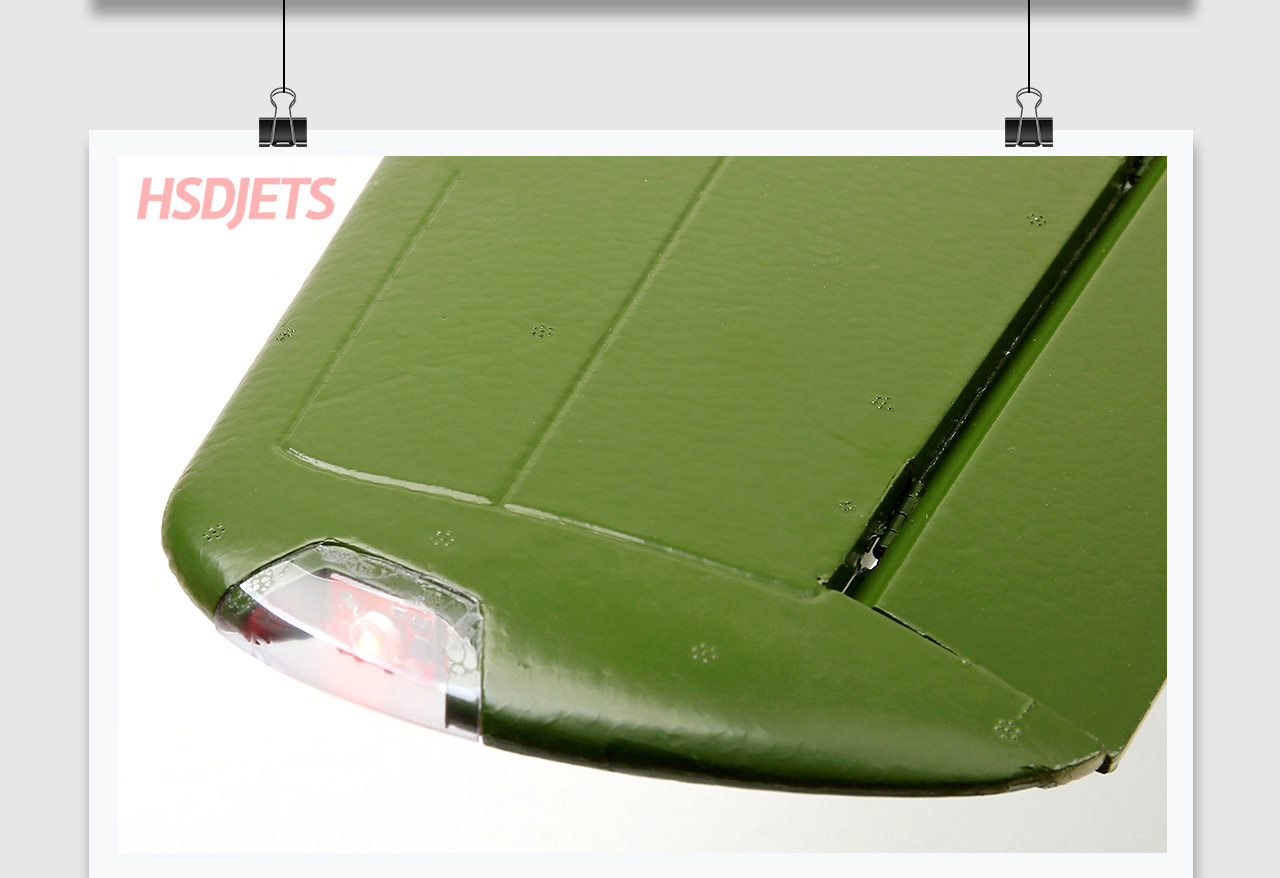

LED lights systemYes
Electromagnetic brake systemYes
Reinforced gyroSelective configuration (not included)
Packaging / SizePacking Box + Outer Box(Card mark)/1400×525×335(mm)

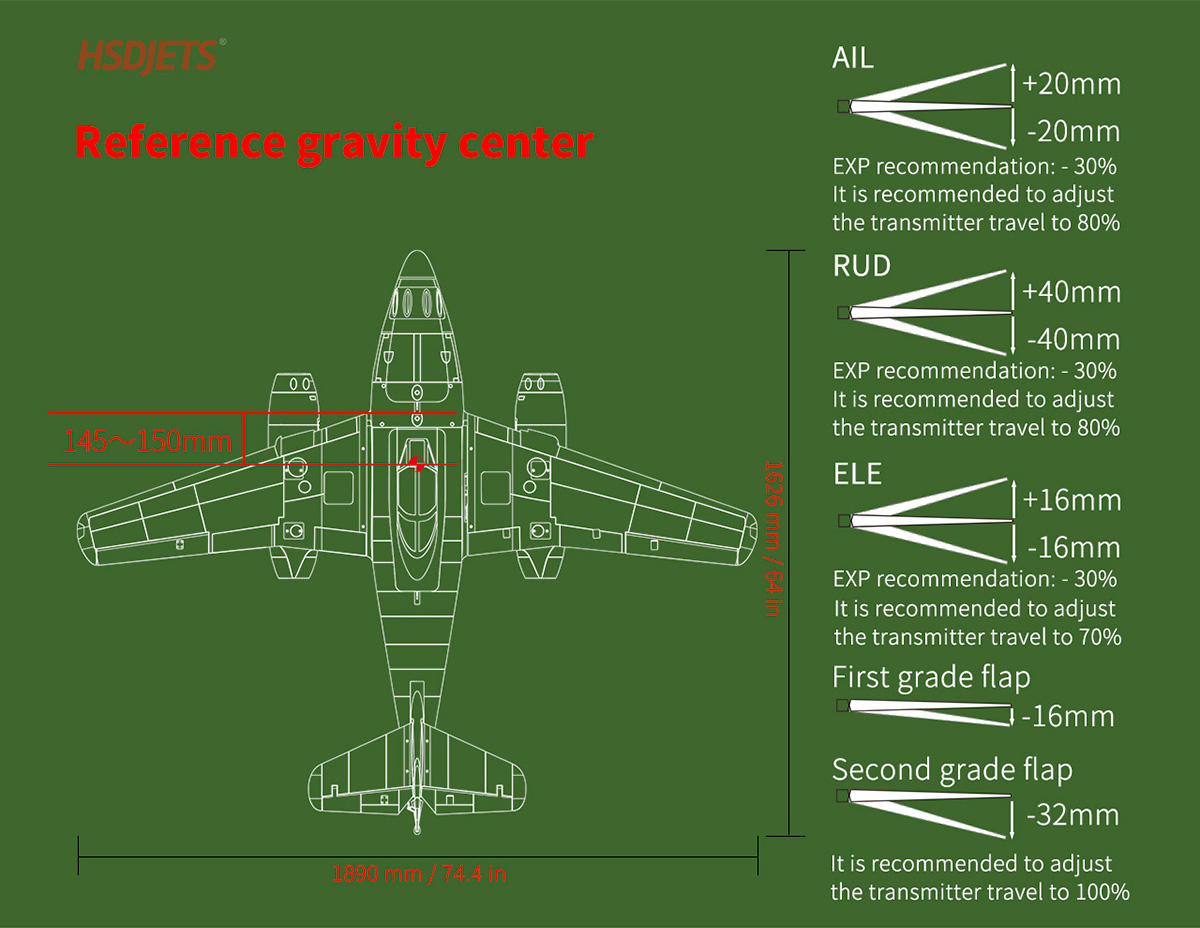

CG (Center of Gravity)145~150mm from the leading edge of the Main Wing

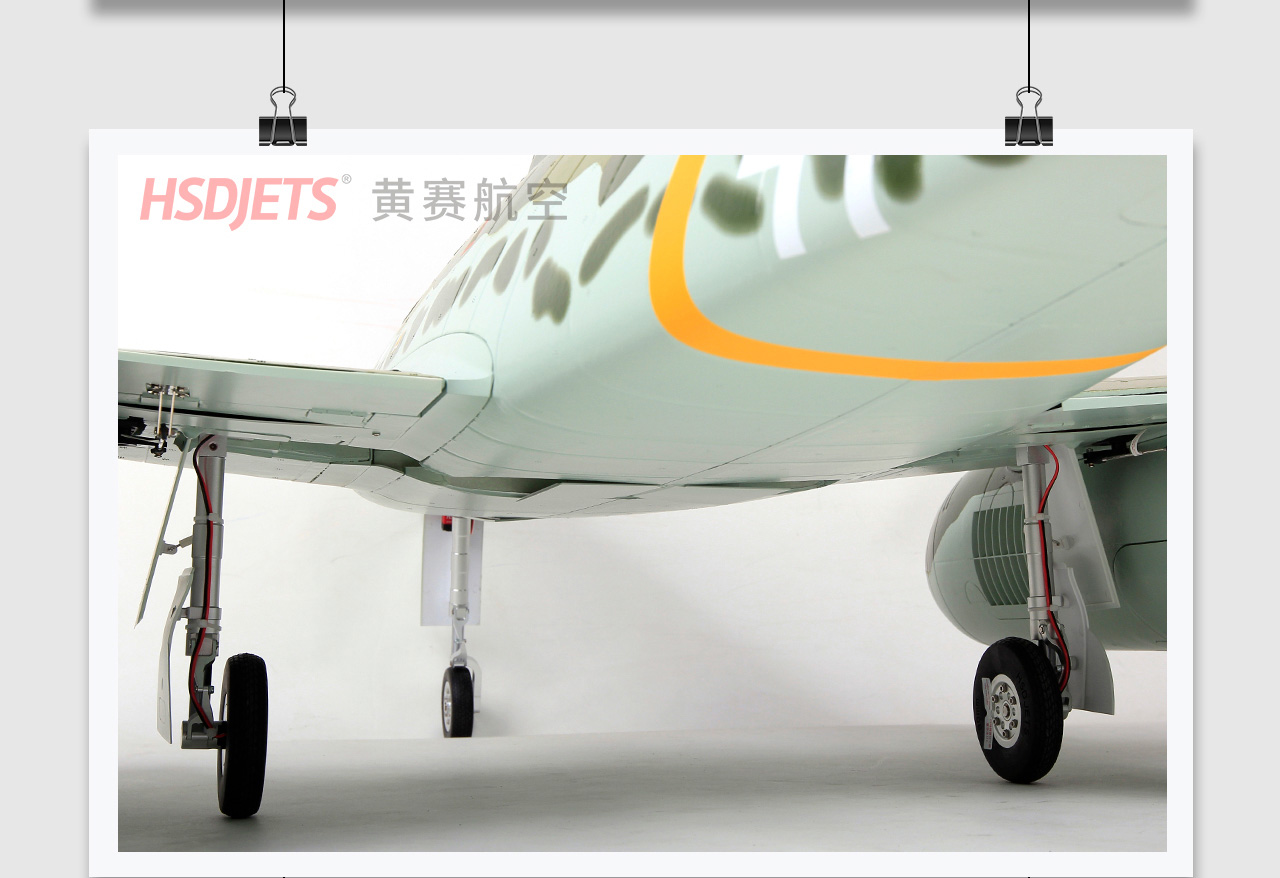

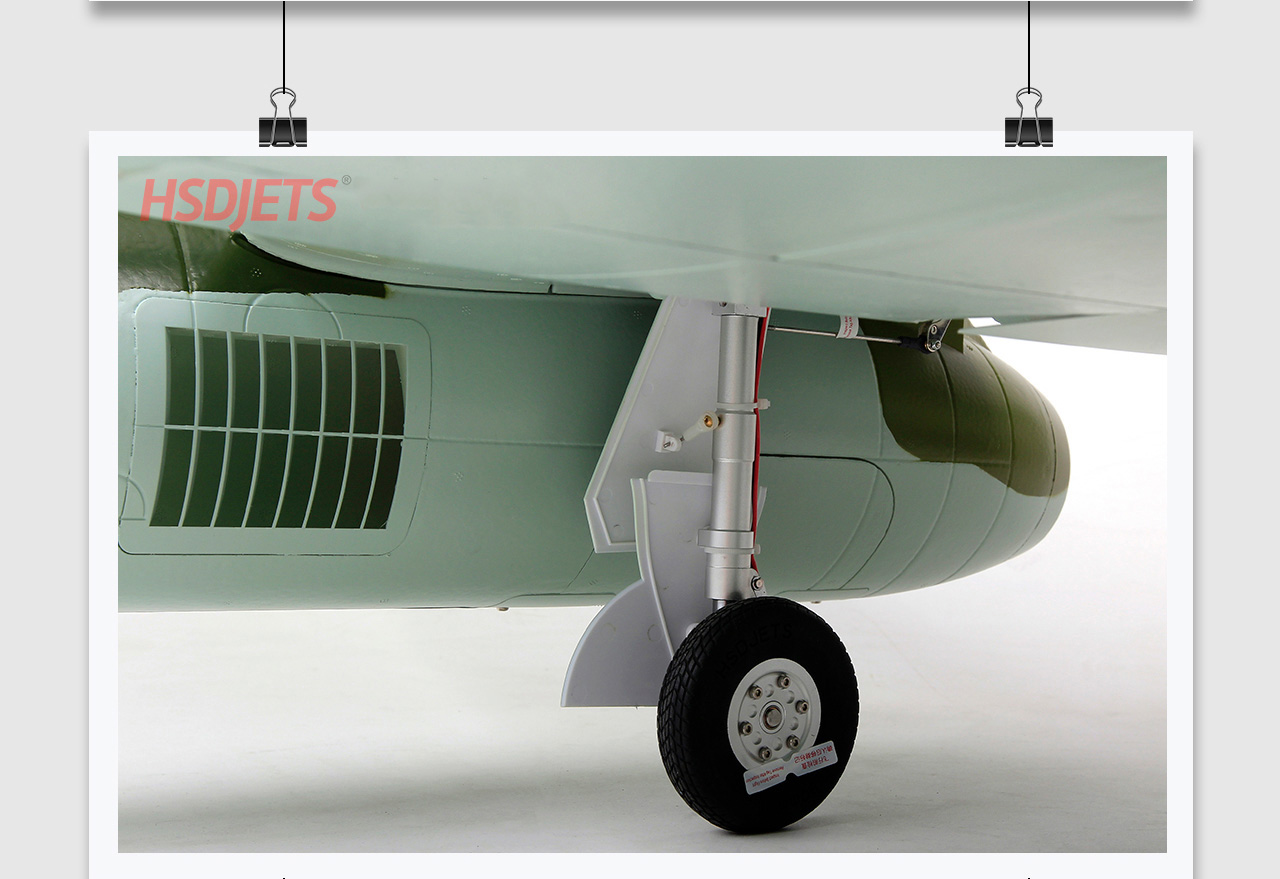

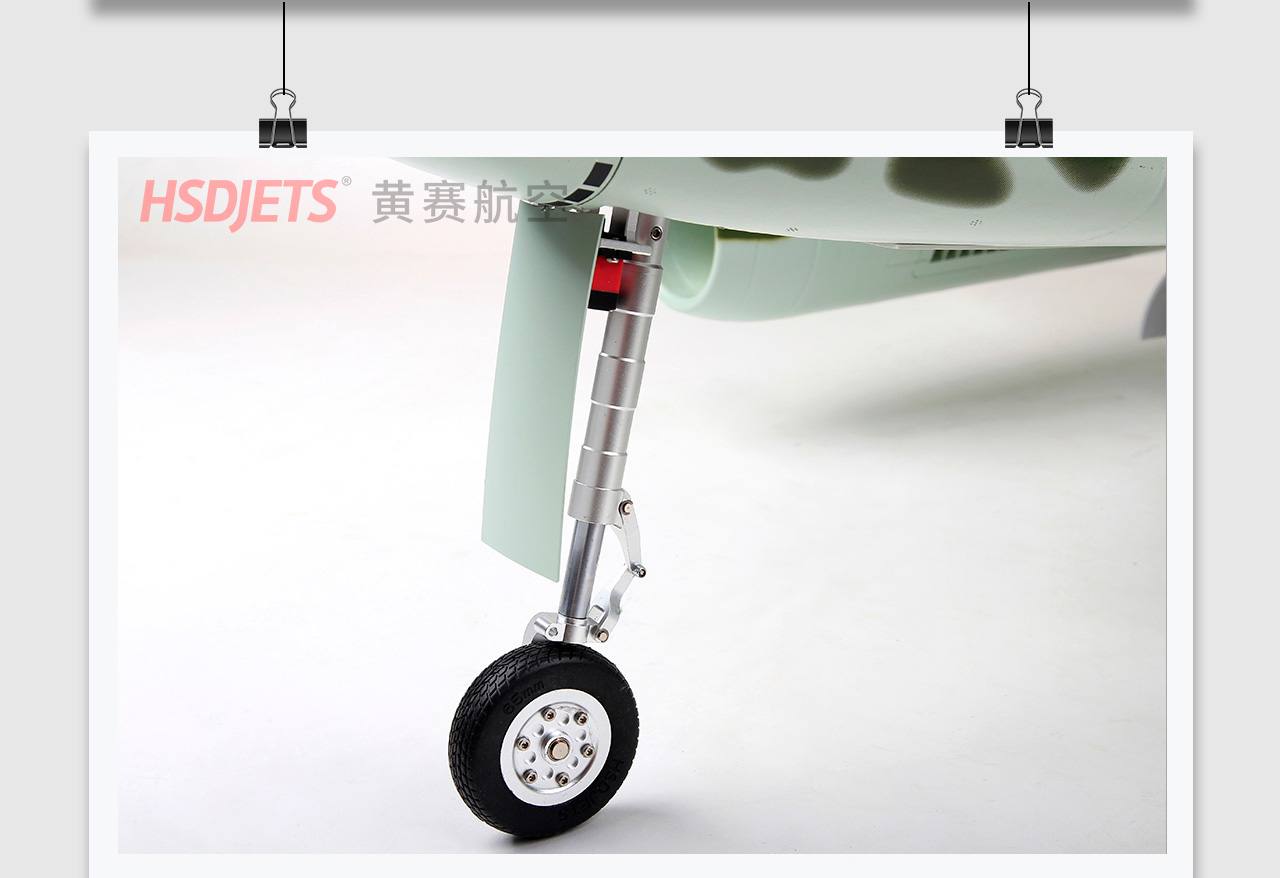

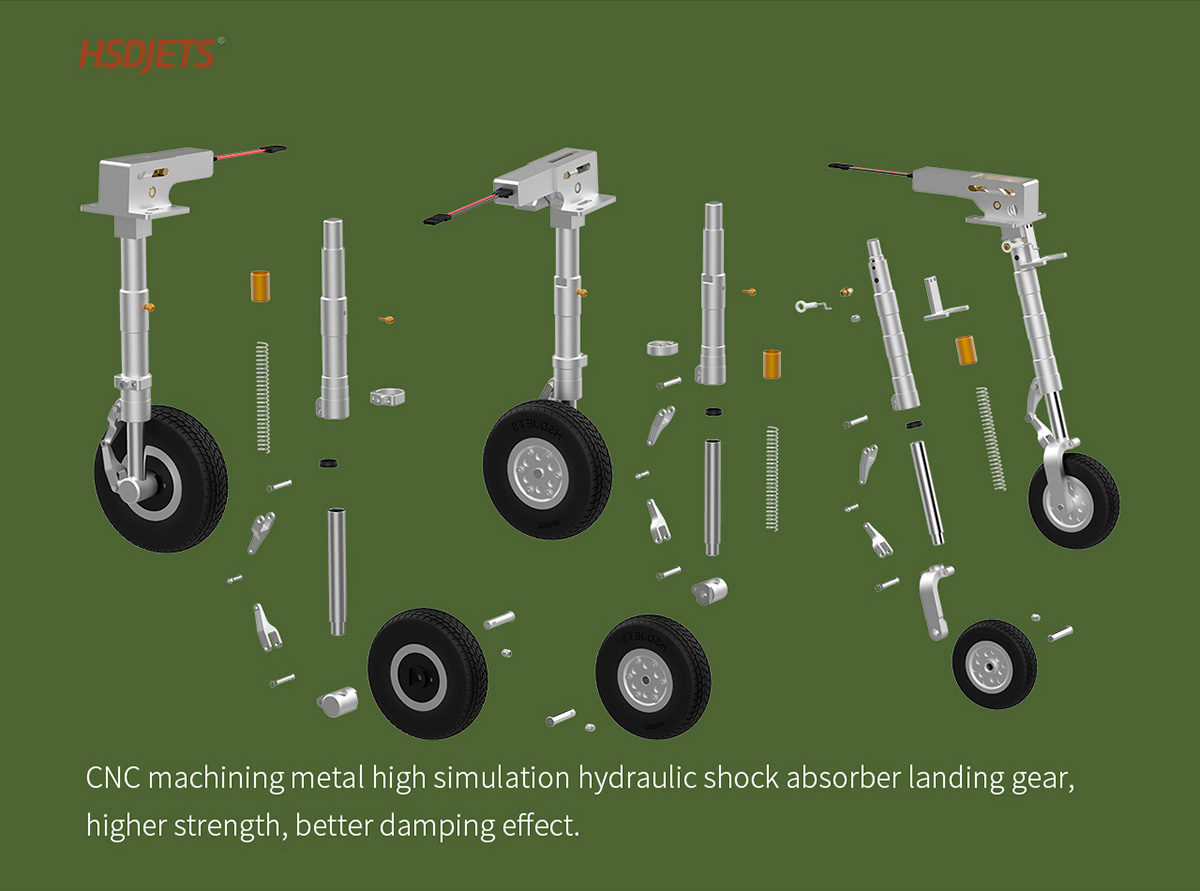

Landing GearsAll metal hydraulic simulation electric retractable landing gear×3
Battery ChargerLiPo battery charger (required & not included)

PACKAGE INCLUDES:

  • Fuselage×1 pcs
  • Left main wing×1 pcs
  • Right main wing×1 pcs

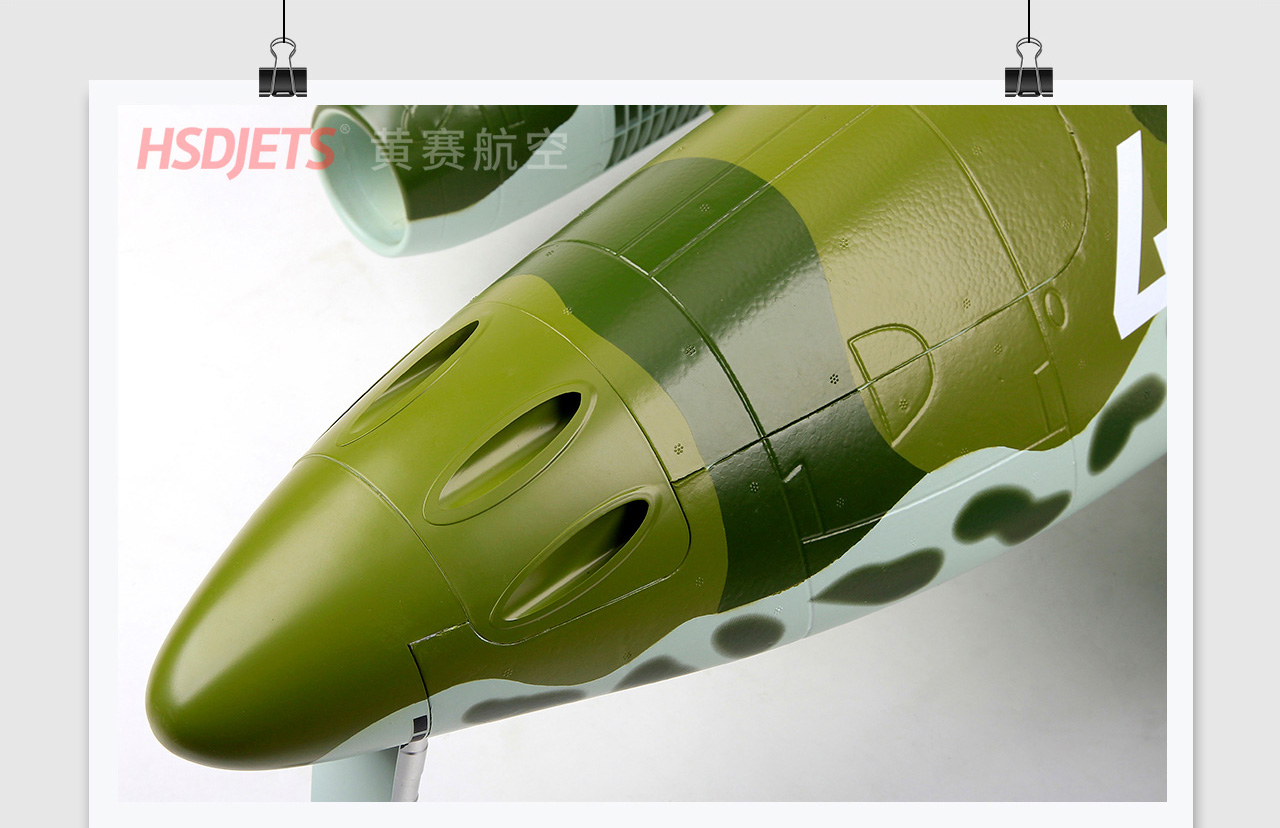

  • Nose×1 pcs
  • Vertical tail×1 pcs

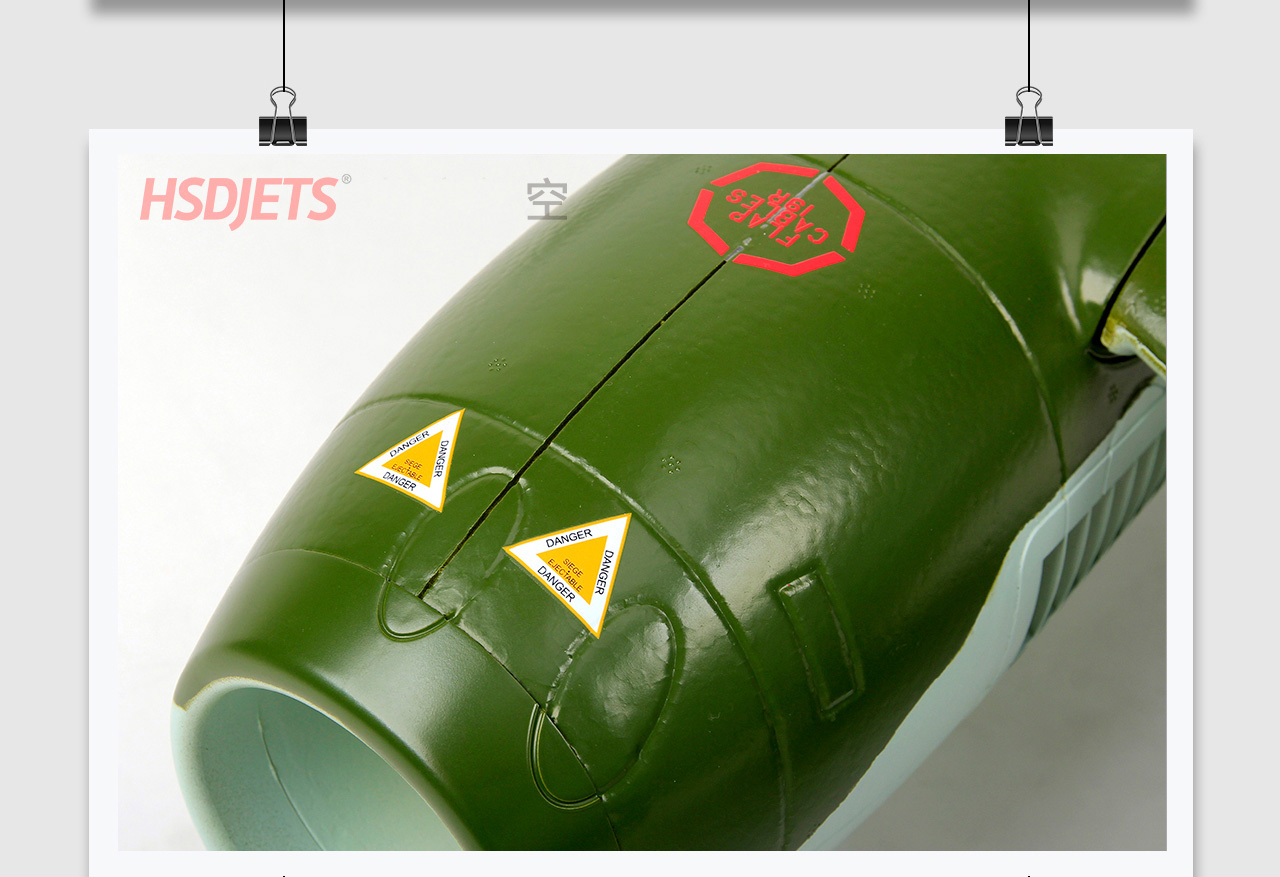

  • Left power group×1 pcs
  • Right power group×1 pcs
  • Left Horizontal tail ×1 pcs
  • Right Horizontal tail×1 pcs
  • Main wing bolt rod L=670mm external diameter 16mm×1 pcs
  • Horizontal Stabilizer bolt rod L=500mm external diameter 6mm×1 pcs
  • Accessories Bag 1 ×1 pcs
    • Screw (HA3×10mm)×16 pcs (S-EDF)
    • Screw (HM3×10mm)×20 pcs
  • Accessories Bag 2 ×1 pcs
    • 100mm signal line(JR male+JR male)×8 pcs
    • 100mm High precision Y-line(JR male+JR male)×1 pcs
  • HME-262 Manual×1 pcs
  • MFC-2085 Manual×1 pcs

REQUIRES:

  • 7 channel radio system(radio & receiver) (required & not included)
  • 6S,22.2V,5000~6000,45C×2,LiPo with XT90 type plug (required & not included)
  • 2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug (required & not included)
  • LiPo battery charger (required & not included)

Videos

Manuals

HSDJETS-Double-S-EDF90mm-HME-262-PNP-Assembly-and-Pre-Flight-Instructions.pdf

HSDJETS-MFC-2085-ENGLISH-MENU-INTRODUCTION-QUICK-ENTRANCE.PDF
