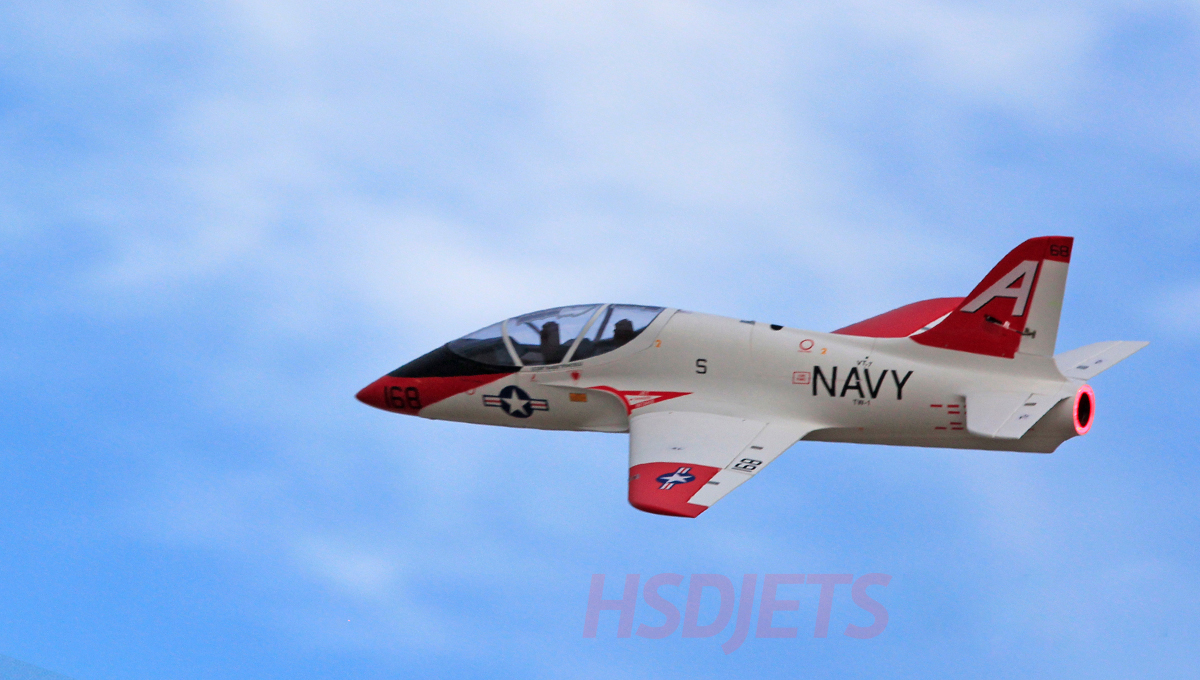

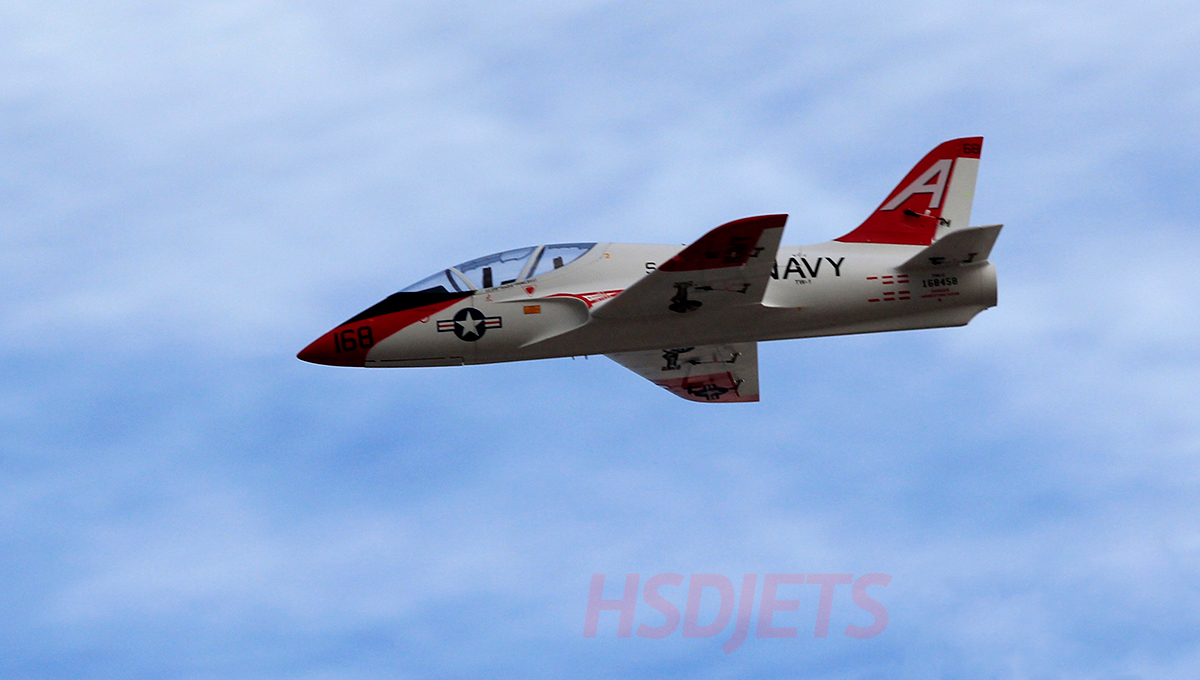

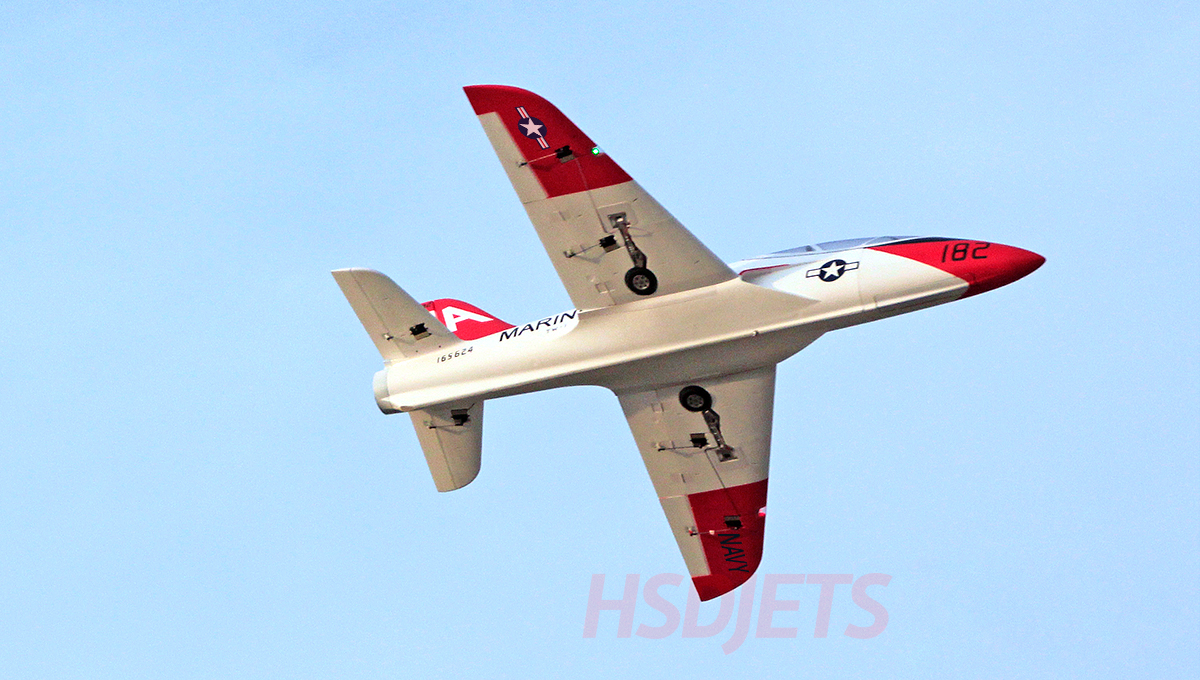

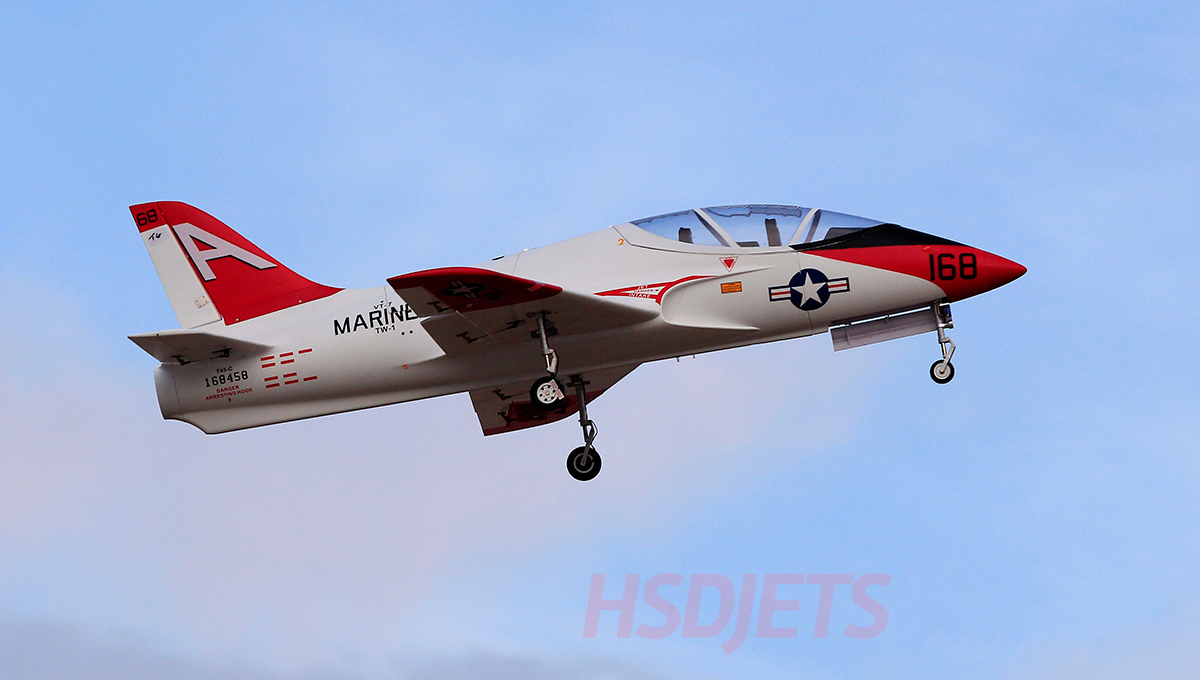

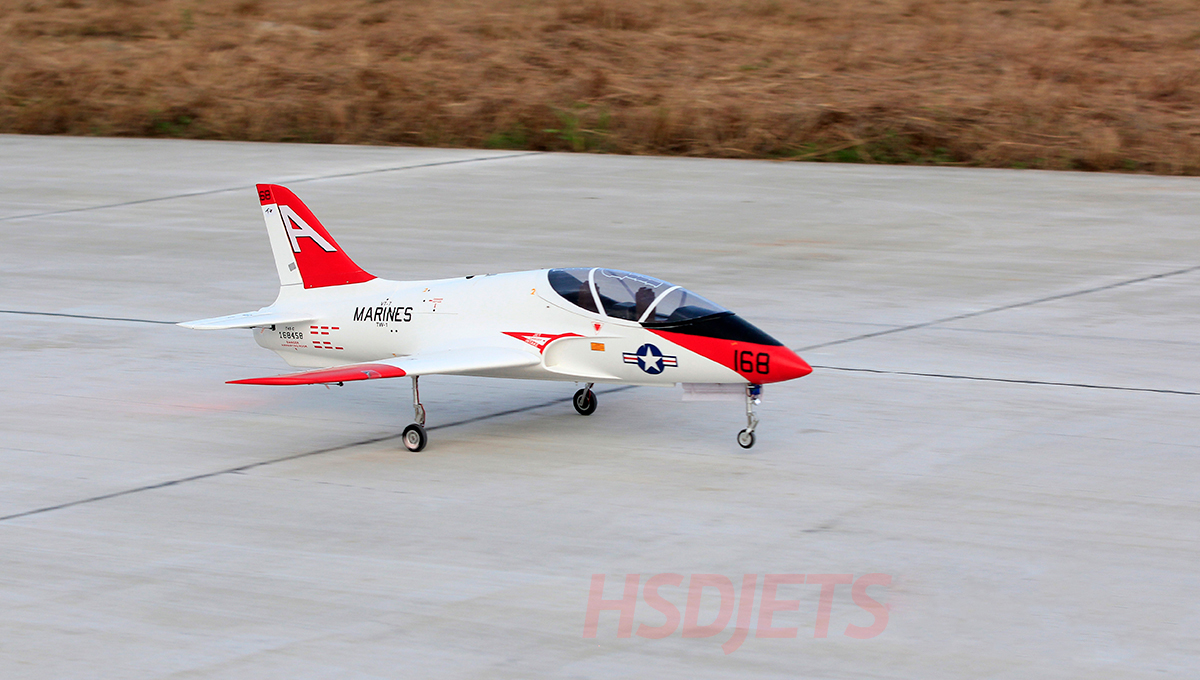

HSDJETS Super Viper Foam Turbine Navy Colour PNP With Smoke System

£1,149.00£2,749.00

Clear
SKU: A15 02 02 00X Categories: ,

This is the latest version







Q: What does PNP mean?
A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed. *Note: If bought with a turbine, the turbine will not be pre-installed.

Weight27.5000 kg
Dimensions52.5600 × 21.3000 × 16.9300 cm
Add Turbine

No Thank You, Swiwin SW-60B (6kg Thrust) (Fine from tarmac), Kingtech K70G4+ (Recommended), More Power Add Swiwin SW-80B (8kg Thrust)

Specifications

SPECIFICATIONS:

Wingspan1500mm (59.1in)
Length1663mm (65.5in)
Flying Weight6.5kg (14.3 lb)
Turbine EngineSW60B 6KG brushless (required & not included)
Cruising speed250 km/h
Flying time5 mins (full throttle)
Wing area34.28 dm2
Wing load189.6 g/dm2
Main material20 times EPO
Painting surfacematte paint
Suitable experience level□Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System8 channel (required & not included)

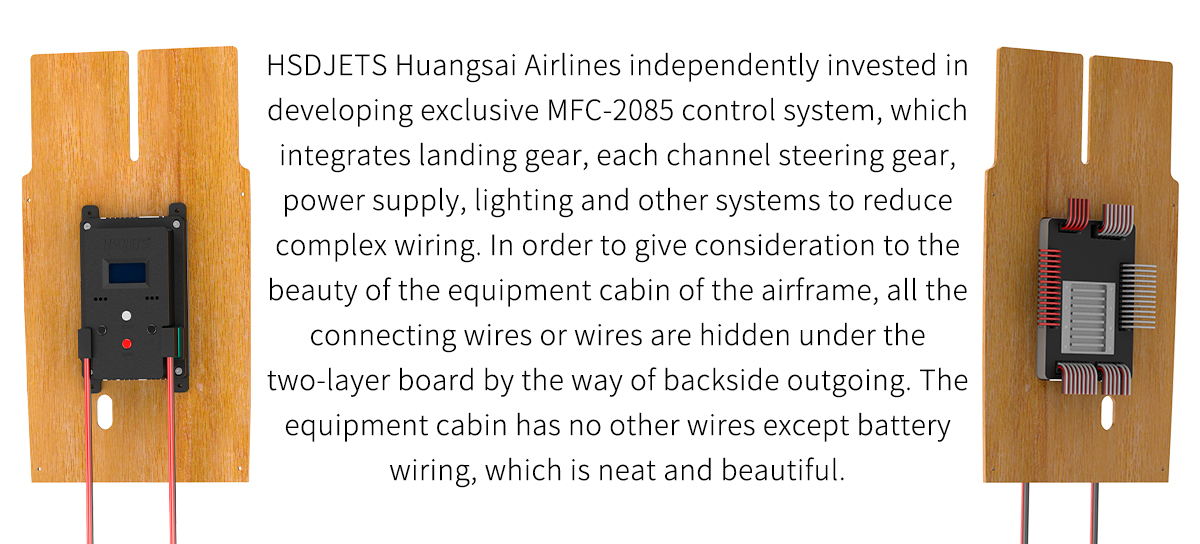

Control SystemMFC-2085

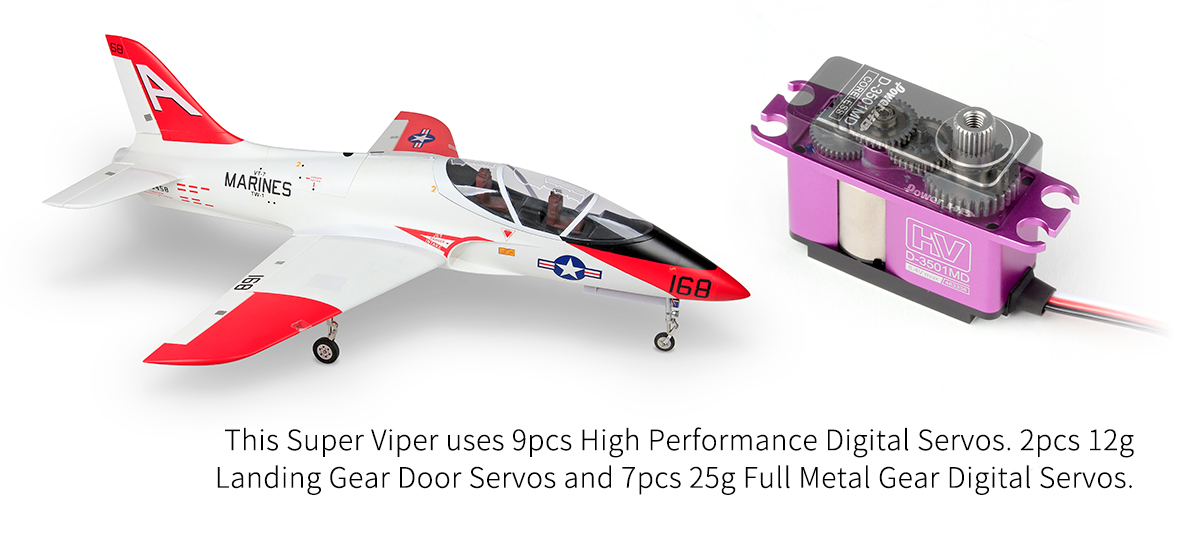

Servos25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×3 Metal gear with 190mm lead (Flap×2 & rudder×1 forward)
25g×2 Metal gear with 80mm lead (elevator forward)
12g×1 Metal gear with 300mm lead (Nose wheel steering forward)
12g×1 Metal gear (360°lock Hatch cover forward)
Recommended Battery2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug(required & not included)
AileronsYes
FlapsYes
Elevator(Horizontal tail)Yes
Rudder(Vertical tail)Yes
The smoke systemYes

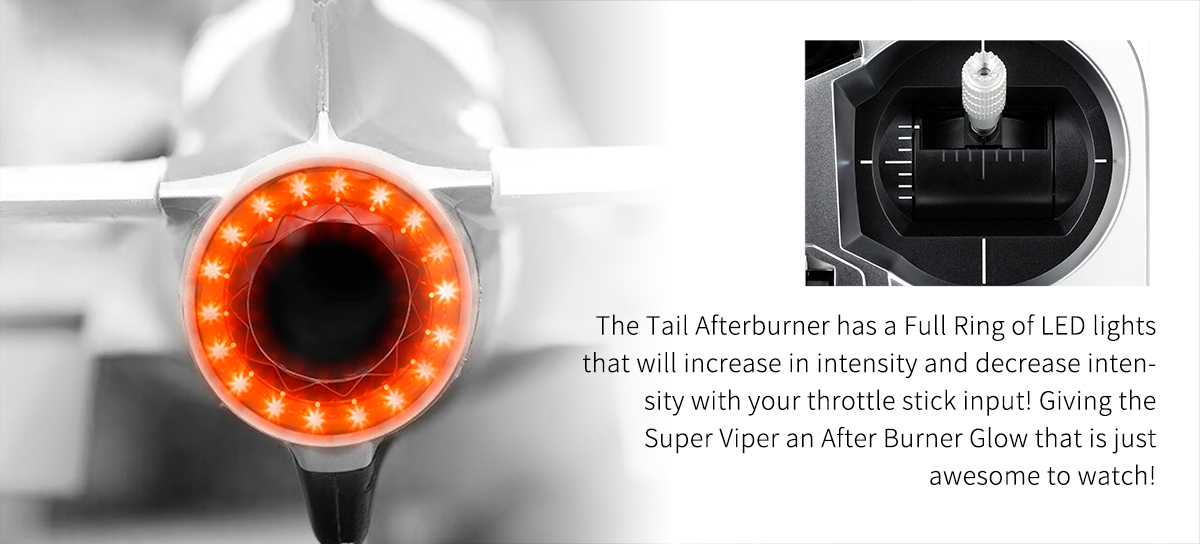

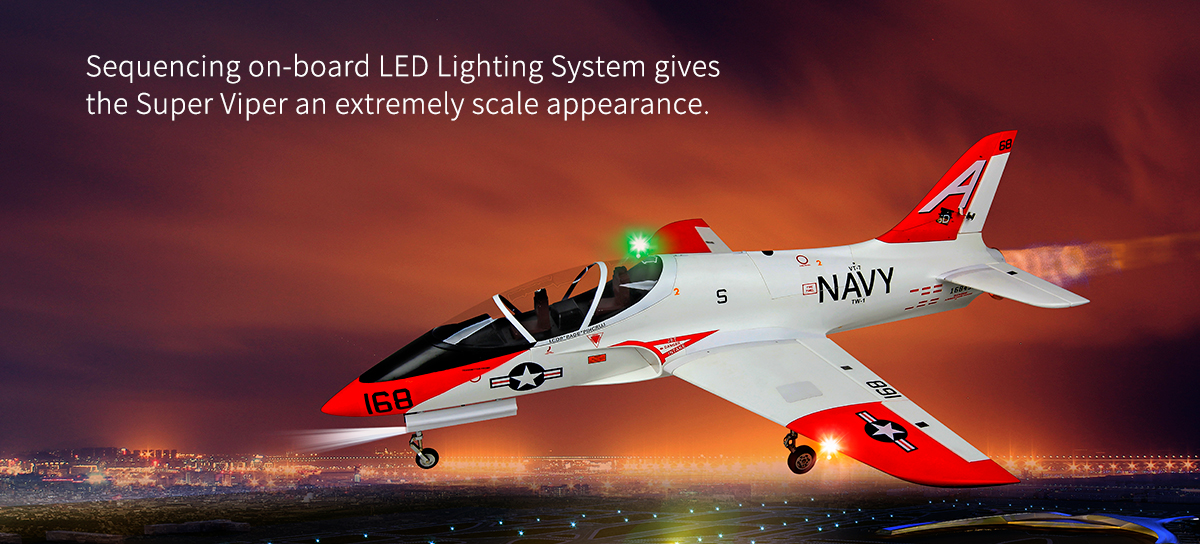

LED lights systemYes
Electromagnetic brake systemYes
Reinforced gyroSelective configuration (not included)
Packaging / SizePacking Box + Outer Box(Card mark)/132.5×46×39.5(cm)
CG (Centre of Gravity)170mm from the leading edge of the Main Wing

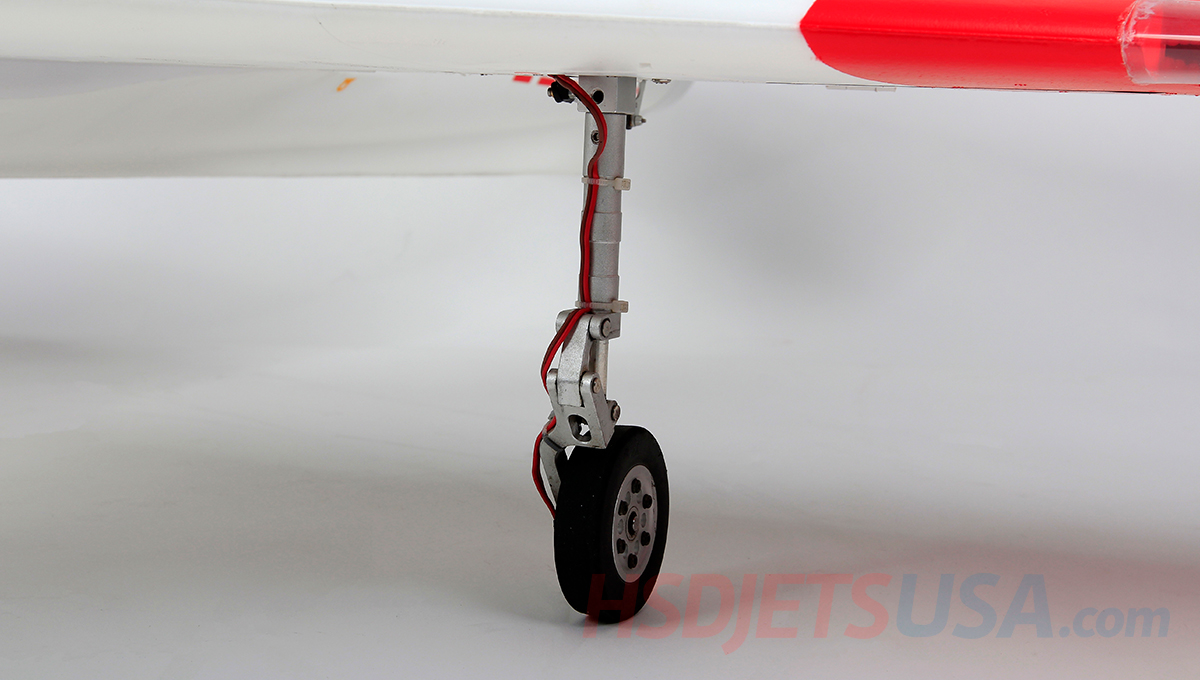

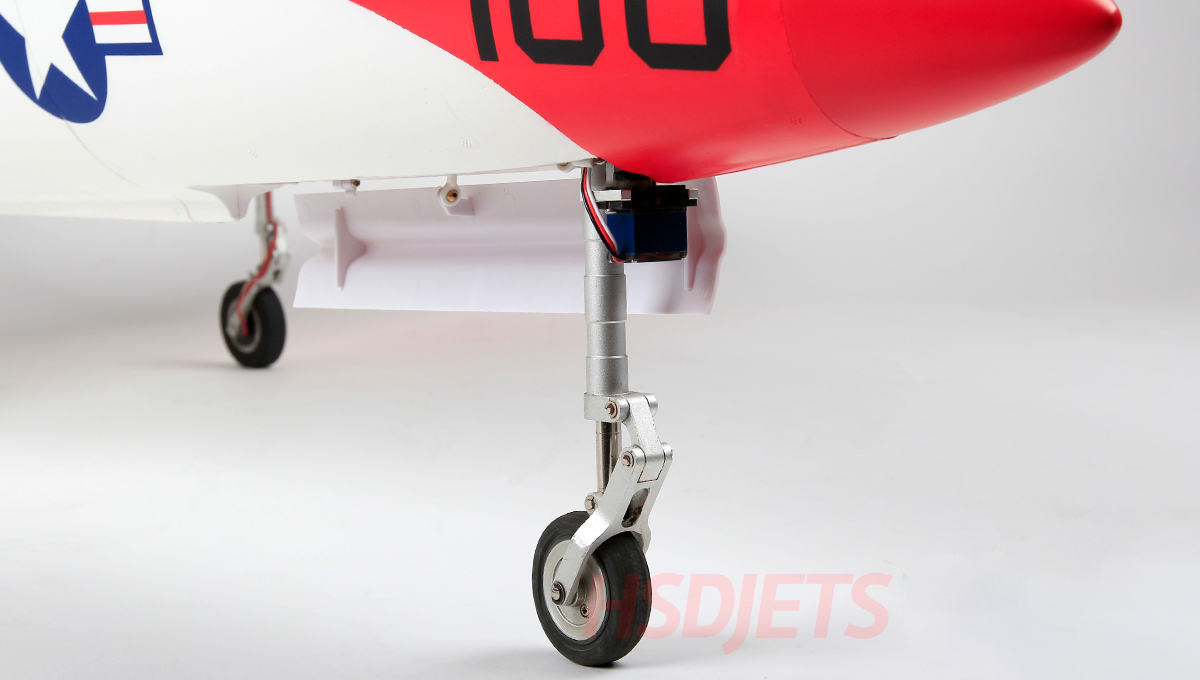

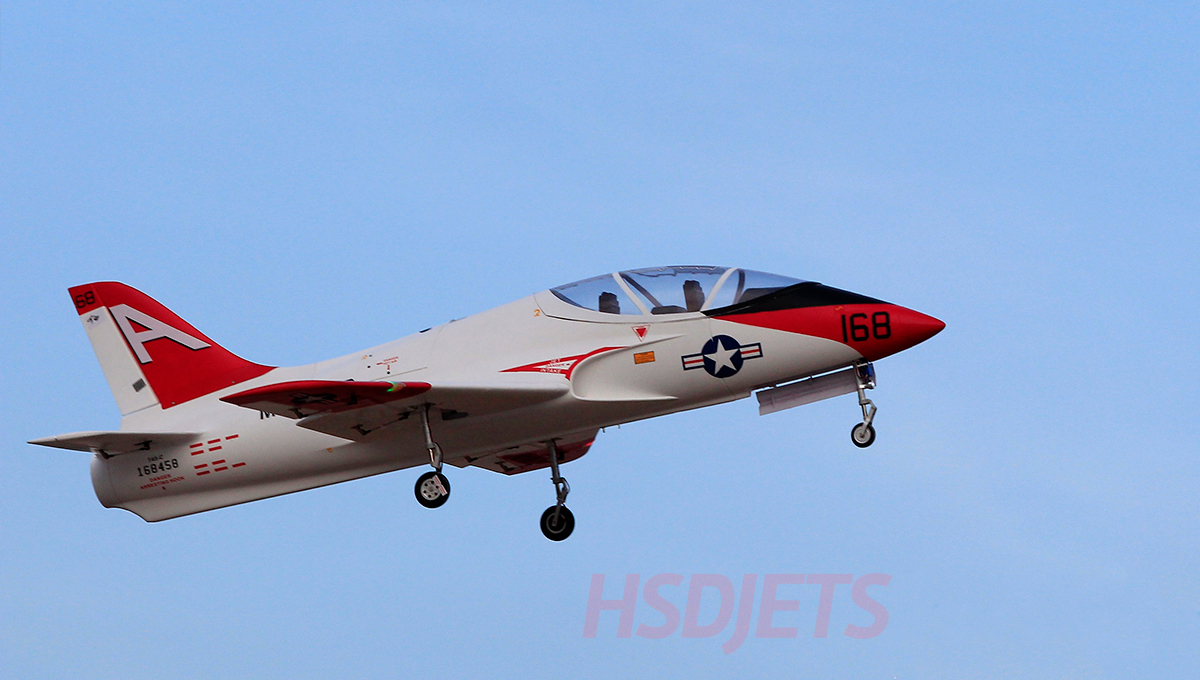

Landing GearsMetal electric retractable hydraulic landing gear×3
Battery ChargerLiPo battery charger (required & not included)

PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1
  • Nose×1
  • Cockpit canopy×1
  • Main wing carbon tube L=598mm external diameter 16mm×1
  • Horizontal Stabilizer carbon tube L=500mm external diameter 6mm×1
  • Sticker×1
  • Capping board×1
  • Accessories Bag 1 ×1
    • Nylon rocker arm of the servo ×2
    • Double sided sponge paper×1
    • Screw (HM4×35mm)×4 (Nose)
    • Screw (HM3×14mm)×2 (Wing)
    • Screw (HM3×10mm)×2 (Wing)
    • Screw (PA3×14mm)×4 (Engine)
    • Screw (PA3×10mm)×4 (Tail nozzle)
    • Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
  • Accessories Bag 2 ×1
    • L type 3mm inner six corner board hand×1
    • Screw (HM4×35mm)×4 (Nose)
    • Screw (HM3×14mm)×2 (Wing)
    • Screw (HM3×10mm)×2 (Wing)
    • Screw (PA3×14mm)×4 (Engine)
    • Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
  • Manual×1


REQUIRES:

  • 6KG – 7KG Turbine (required & not included)
  • 8 channel radio system(radio & receiver) (required & not included)
  • 2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug (required & not included)
  • LiPo battery charger (required & not included)

Videos



Manuals

HSDJETS Super Viper Foam Turbine V3.pdf

HSDJETS-MFC-2085 ENGLISH MENU INTRODUCTION QUICK Guide.PDF
