£1,449.99
Availability: In stock
Q: What does PNP mean?
A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed. *Note: If bought with a turbine, the turbine will not be pre-installed.
| Weight | 27.5000 kg |
|---|---|
| Dimensions | 52.5600 × 21.3000 × 16.9300 cm |
| Add Turbine | No Thank You, Swiwin SW-80B (8kg Thrust, Recommended), More Power add the KingTech K-85G4+ (8.5kg Thrust) |
| Wingspan | 2018 mm (79.4 in) |
| Length | 1800 mm (70.9 in) |
| Flying Weight | 10.7kg (23.5 lb) with 1800cc Aviation kerosene |

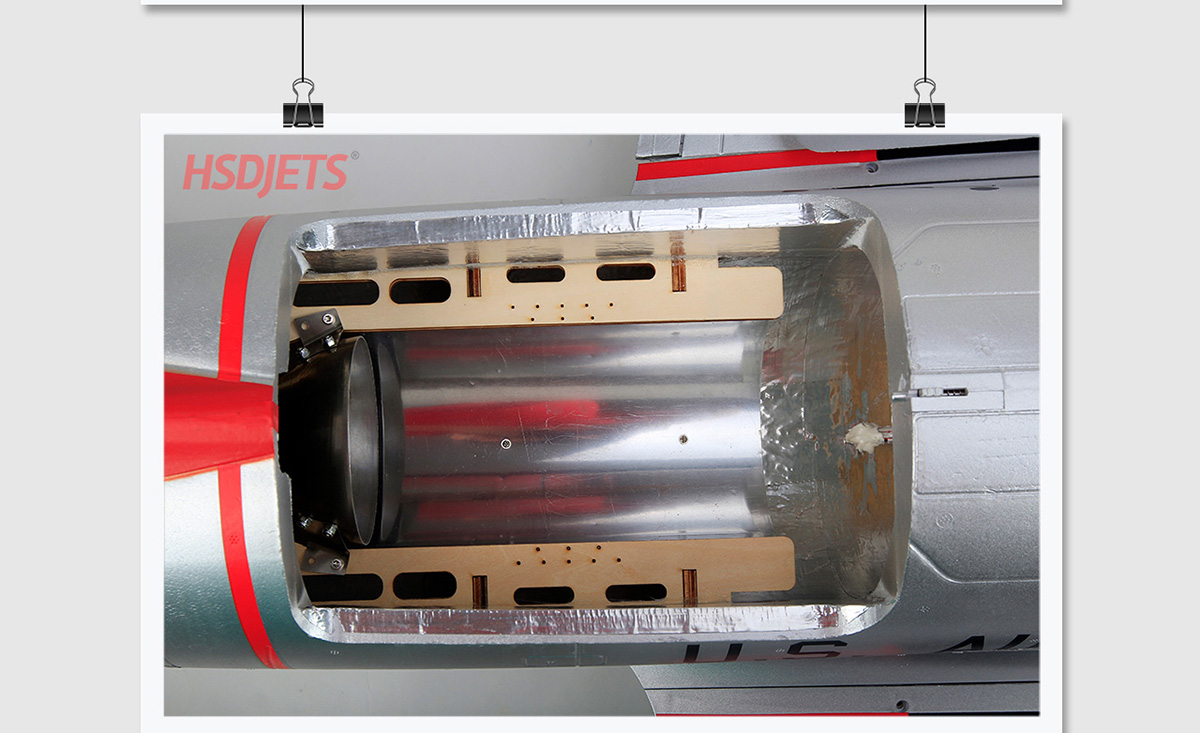

| Turbine Engine | SW80B 8KG brushless / SW60B 6KG brushless (required & not included) |
| Cruising speed | 150～200 km/h |
| Flying time | 3～5 mins (full throttle) |
| Wing area | 56.5 dm2 |
| Wing load | 184.1 g/dm2 |
| Main material | 20 times EPO |
| Painting surface | matte paint |
| Suitable experience level | □Zero basis □Beginner □Intermediate ■Advanced |
| PNP Assembly difficulty | □☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature | 0℃～40℃ |
| Radio System | 7 channel (required & not included) |

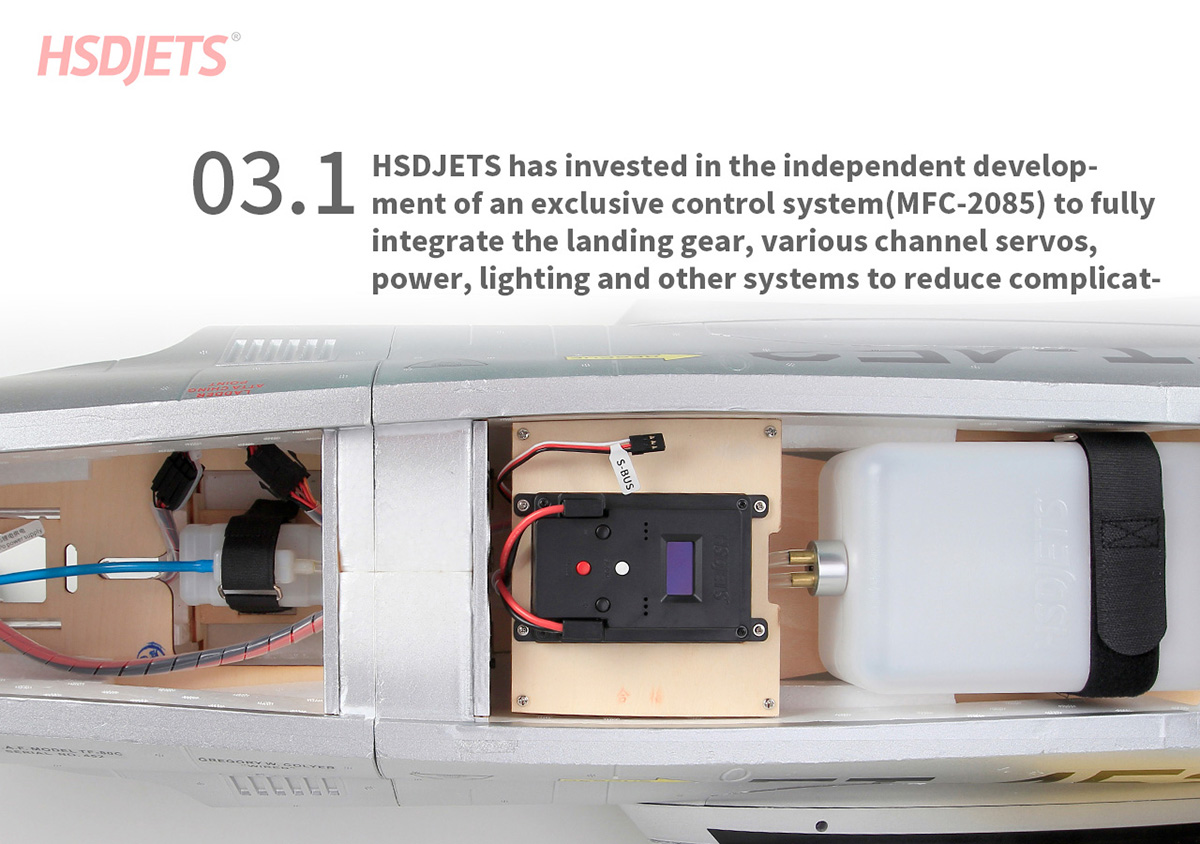

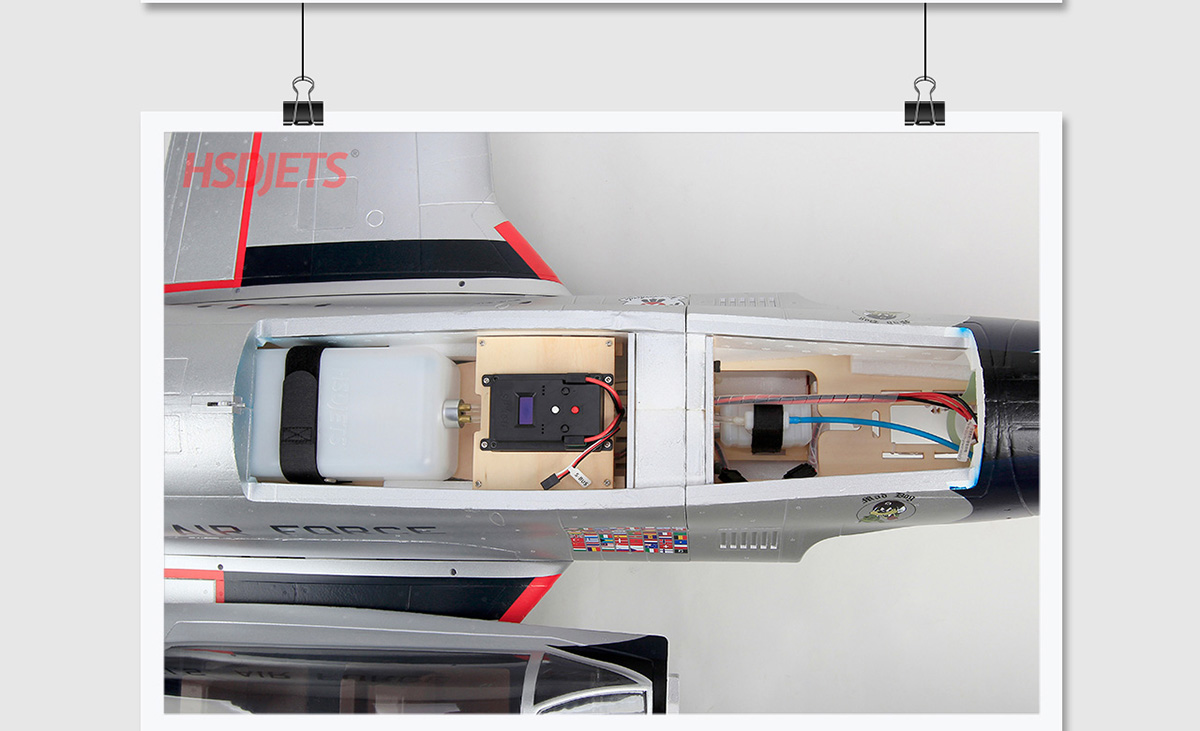

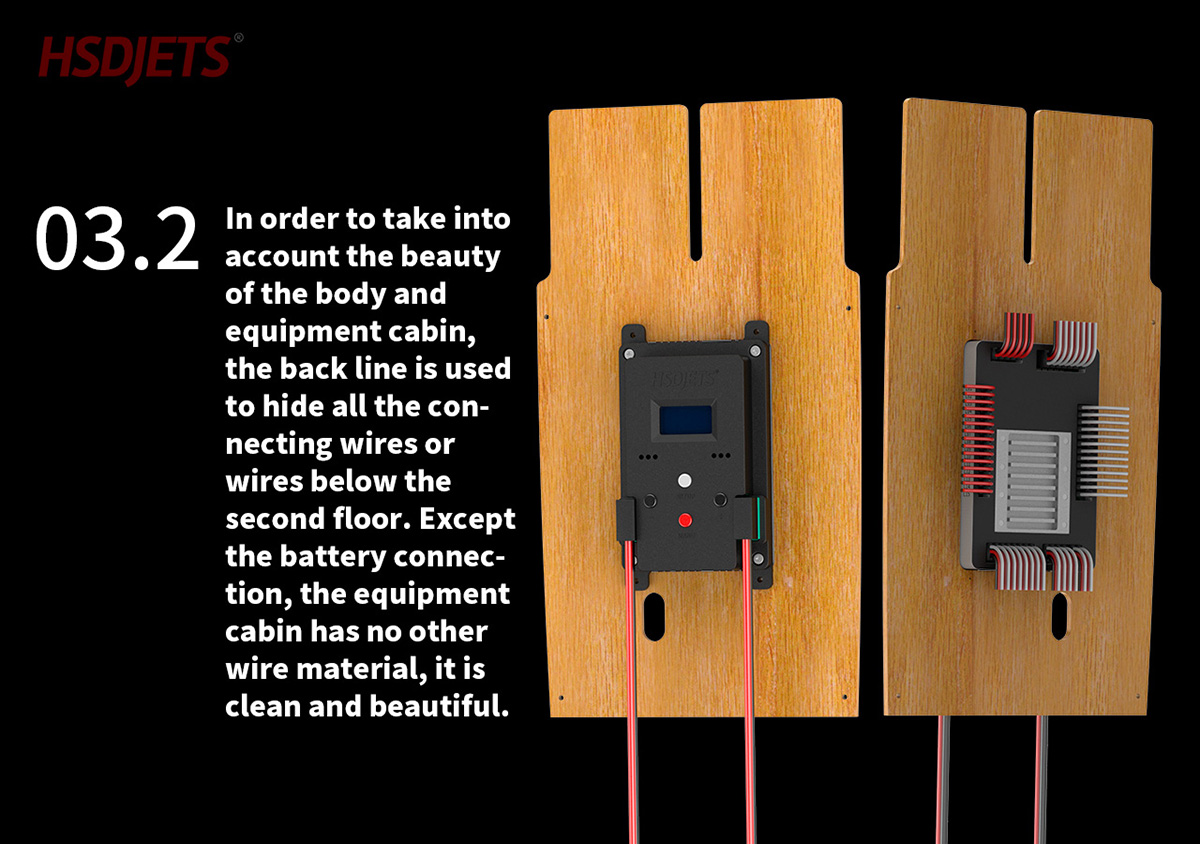

| Control System | MFC-2085 |
| Servos | 7.4V 25g×2 Metal gear with 480mm lead (left & right ailerons forward) 7.4V 25g×2 Metal gear with 230mm lead (Flap×2 forward) 7.4V 25g×3 Metal gear with 80mm lead (elevator×2 & rudder×1 forward) 7.4V 12g×1 Metal gear with 380mm lead with protection function (Nose wheel steering forward) 7.4V 12g×1 Metal gear with 320mm lead with protection function (Front wheel cover plate forward) 7.4V 12g×2 Metal gear with 80mm lead with protection function (Rear wheel cover plate forward) |
| Recommended Battery | 2S,7.4V,5200mAh×2,LiPo with XT60 type plug(required & not included) |
| Ailerons | Yes |
| Flaps | Yes |
| Elevator(Horizontal tail) | Yes |
| Rudder(Vertical tail) | Yes |
| The smoke system | No |
| LED lights system | Yes |

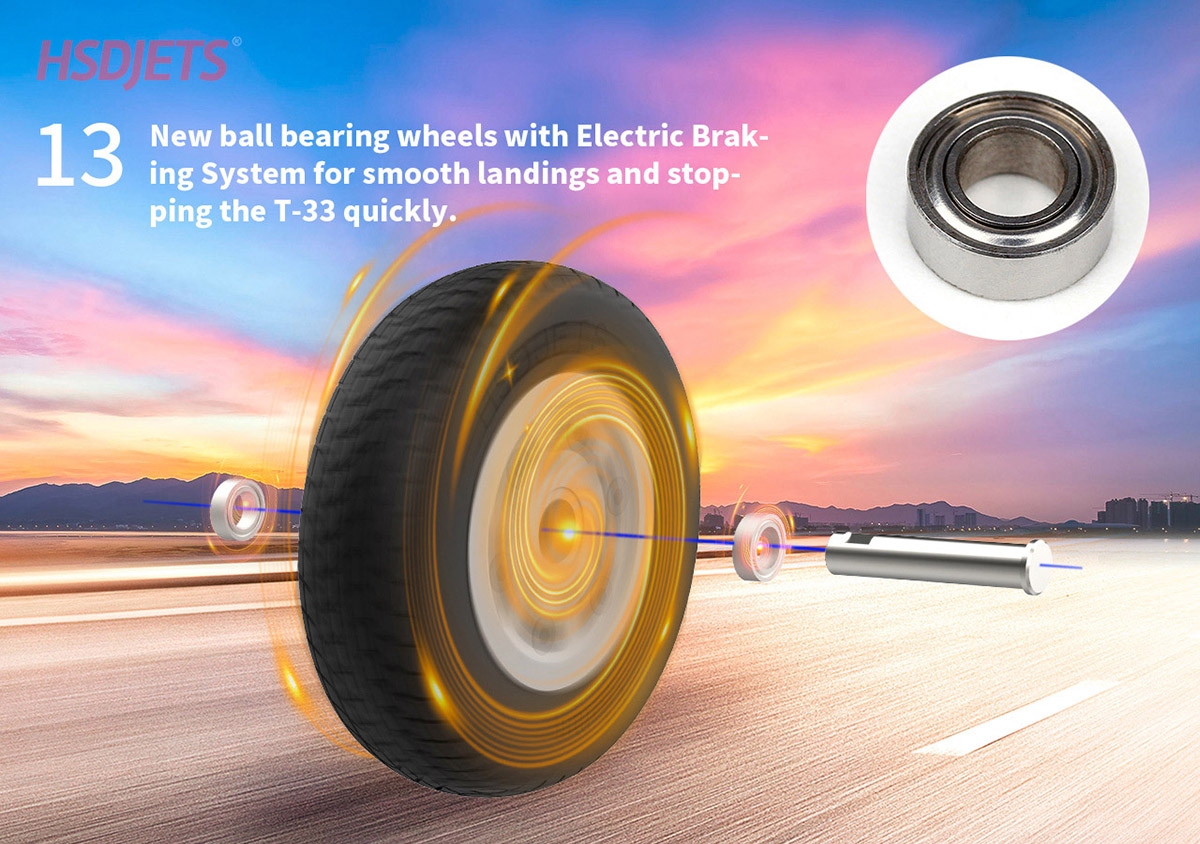

| Electromagnetic brake system | Yes |
| Reinforced gyro | Selective configuration (not included) |
| Packaging / Size | Packing Box + Outer Box(Card mark)/52.56×21.3×16.9(inch) |
| CG (Center of Gravity) | 180mm from the leading edge of the Main Wing |

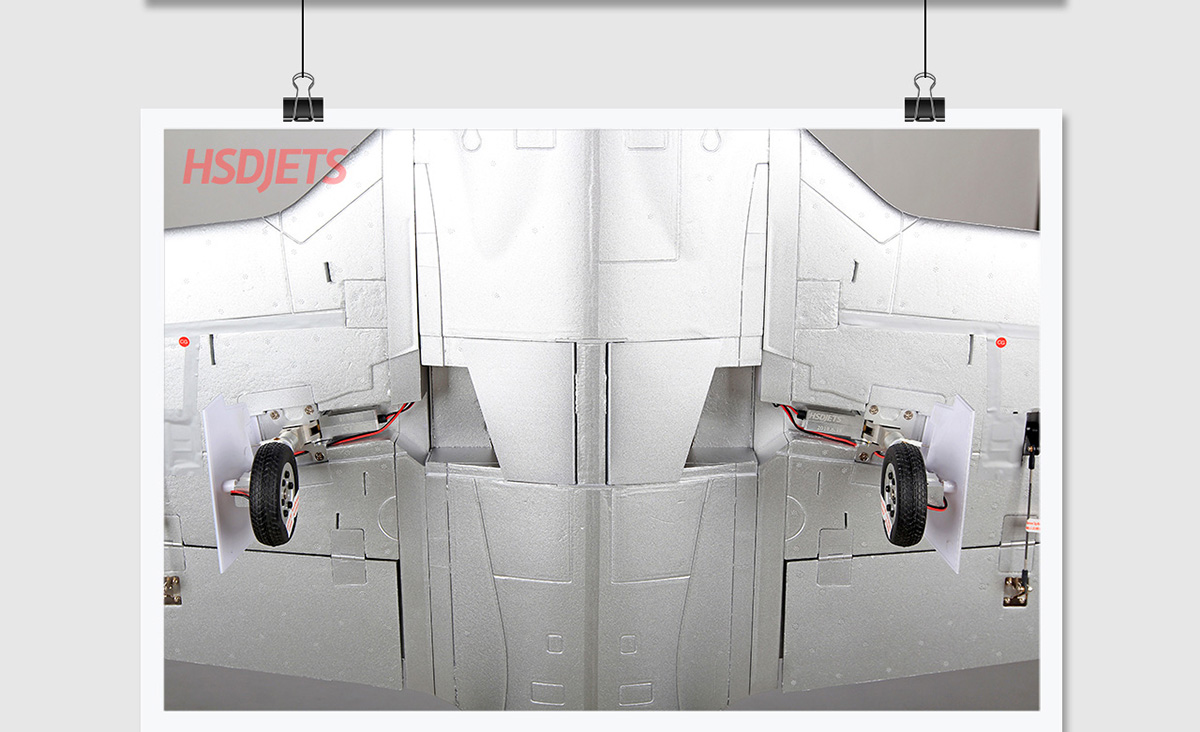

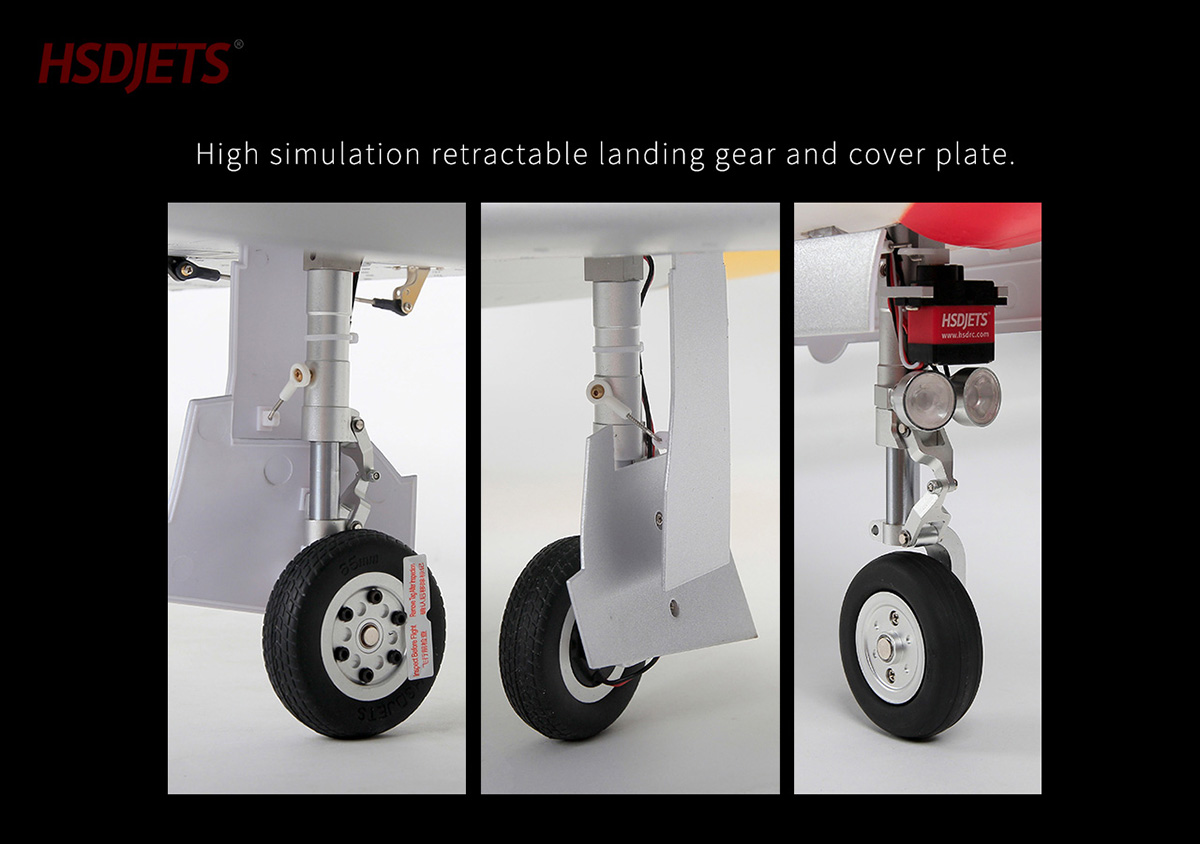

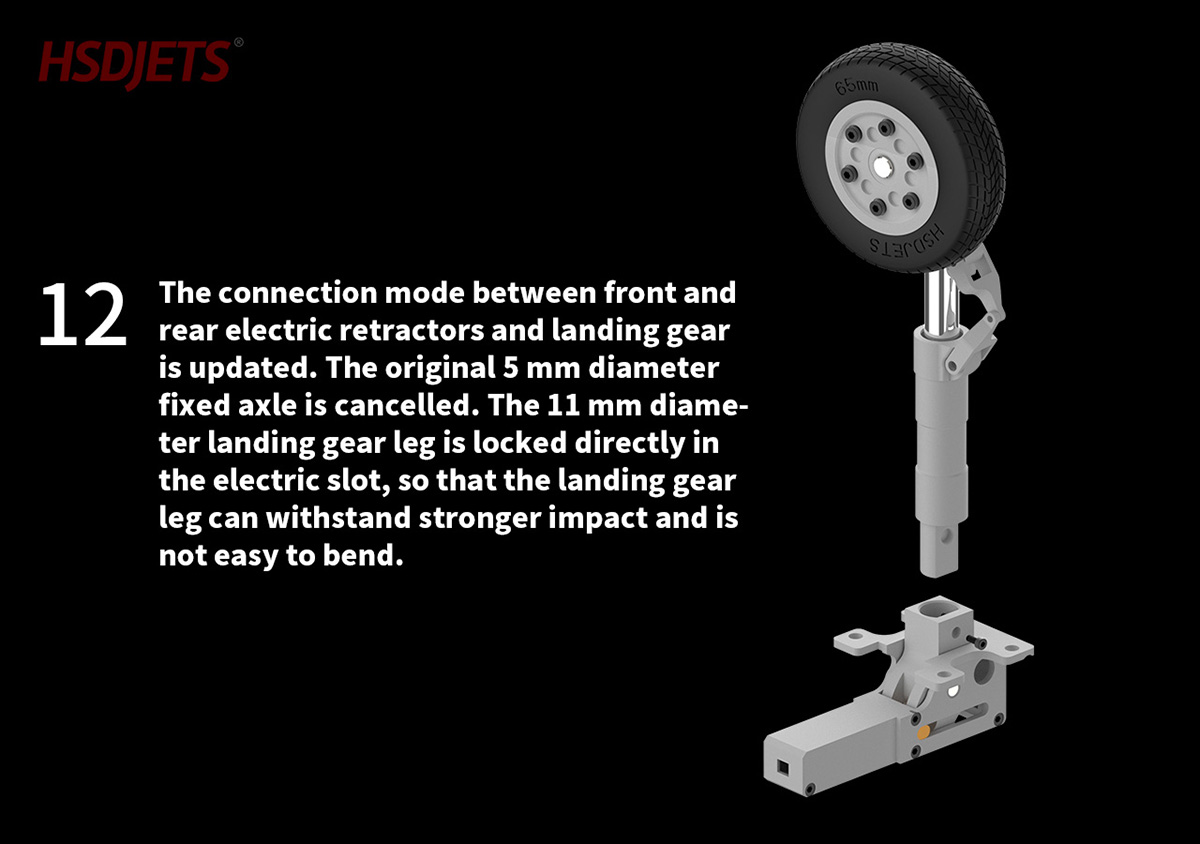

| Landing Gears | Metal electric retractable hydraulic landing gear×3 |
| Battery Charger | LiPo battery charger (required & not included) |
PACKAGE INCLUDES:
REQUIRES:
HSDJETS-T-33-Foam-Turbine-Assembly-and-debugging-guide.pdf
HSDJETS-MFC-2085-ENGLISH-MENU-INTRODUCTION-QUICK-ENTRANCE.PDF
