SWH-240B v3 Turbine Engine (24KG thrust) Brushless

£3,099.99



Availability: In stock

SKU: SWWT240B-001 Category:
  • Brushless starter and telemetry functions*
  • 32Bit auto restart ECU

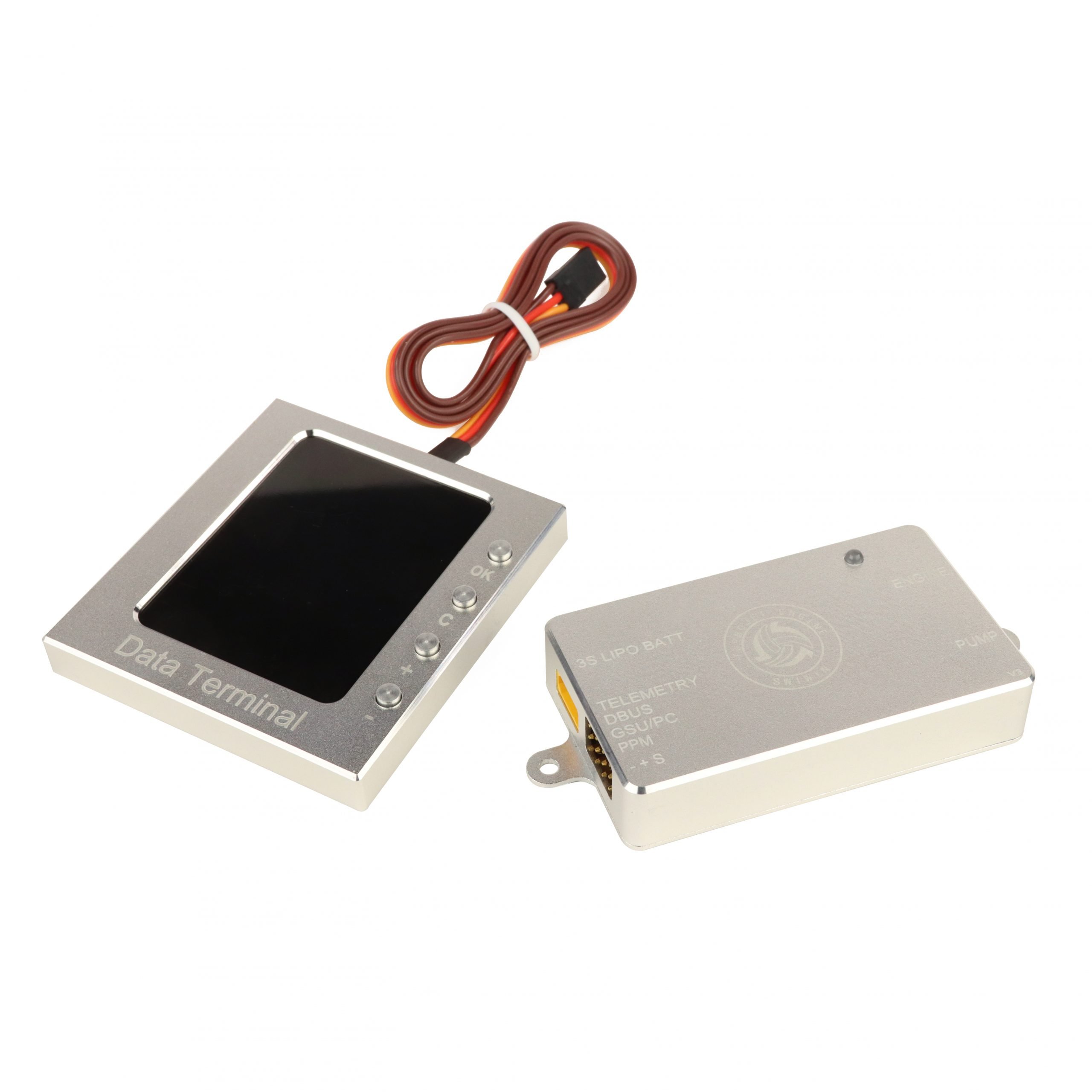

  • Colour screen data terminal
  • CNC compressor wheel
  • Very fast throttle response
  • Best cost/performance 220N turbine
  • Build in FOD screen
  • Silver/Rose Gold colour canHi Ya,

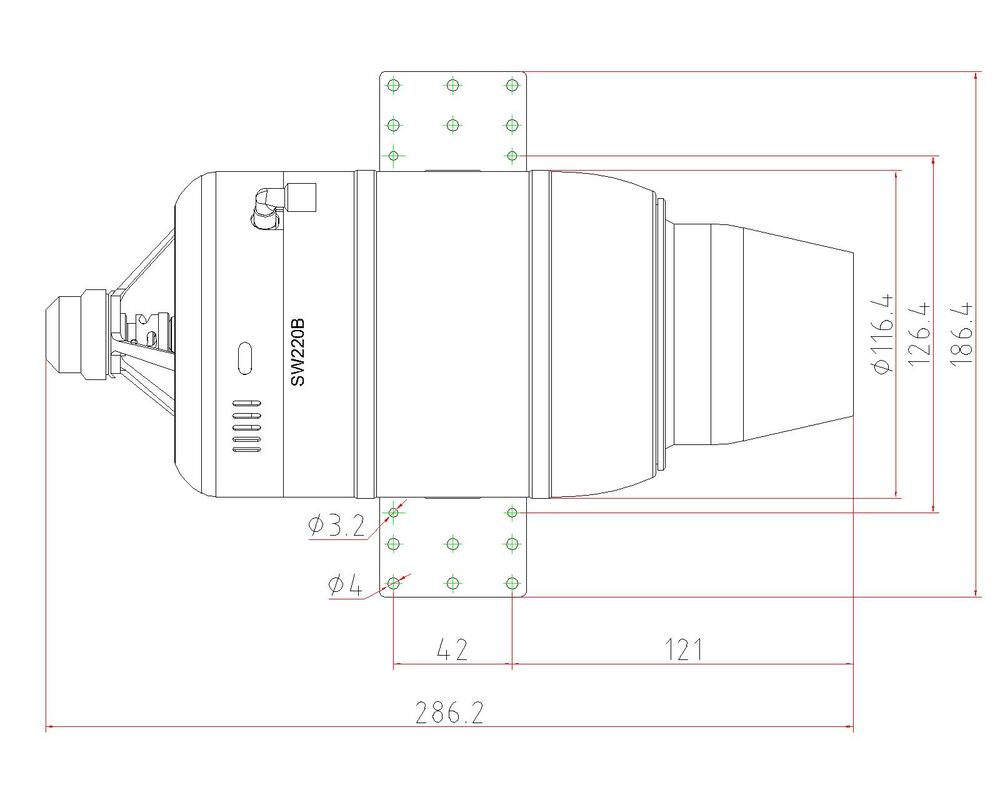

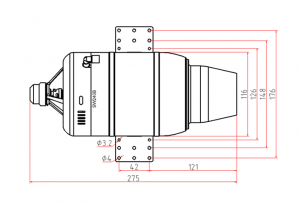

    Diameter: 116 mm
    Length: 275 mm
    Total weight: 1700 grams
    Max speed: 118000RPM
    Idle speed: 38000 RPM
    Thrust: 24 kg (ambient temperature 15℃)
    Rated exhaust temperature: 760 ℃
    Full throttle fuel consumption: 685 g/min
    Fuel used: kerosene or diesel oil
    Lubricating oil: 5% Mobil Pegasus II
    Regular maintenance period: 25 hours





*Additional cable required for Spektrum Telemetry

Weight5.0000 kg
Dimensions10.0000 × 7.5000 × 6.0000 cm

Specifications

Videos



Manuals

Swiwin turbine brushless manual.pdf
