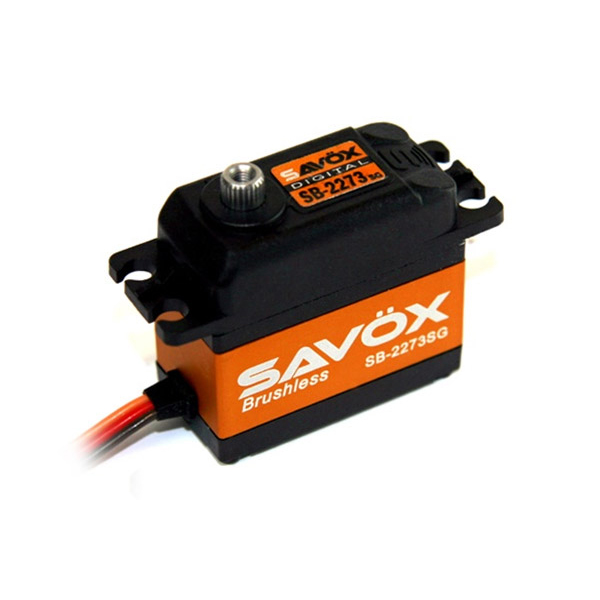

Savox SB-2273SG HV Brushless Digital Servo 28KG/0.095s


Out of stock

Email when back in stock

SKU: SAV-SB2273SG Category:

This is the Savox SA-2273SG High Speed Brushless Unique Steel Gear Digital Servo.

SB2274SG Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
  • The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Our servos are totally green – from materials to production, these servos are environmentally friendly.
  • Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

Spec Check:


  • Dimensions(mm): 40.3×20.2×38.5
  • Weight(g): 69.0
  • Speed(@6.0V sec/60): .12
  • Torque(@6.0V oz-in): 319.4 / 23kg
  • Speed(@7.4V sec/60): .095
  • Torque(@7.4V oz-in): 388.8 / 28kg
  • Gear: Steel
  • Bearing: 2BB
  • Case: Full Aluminum
  • 25 Tooth Spline

Weight2.0000 kg
Dimensions5.0000 × 5.0000 × 5.0000 cm
