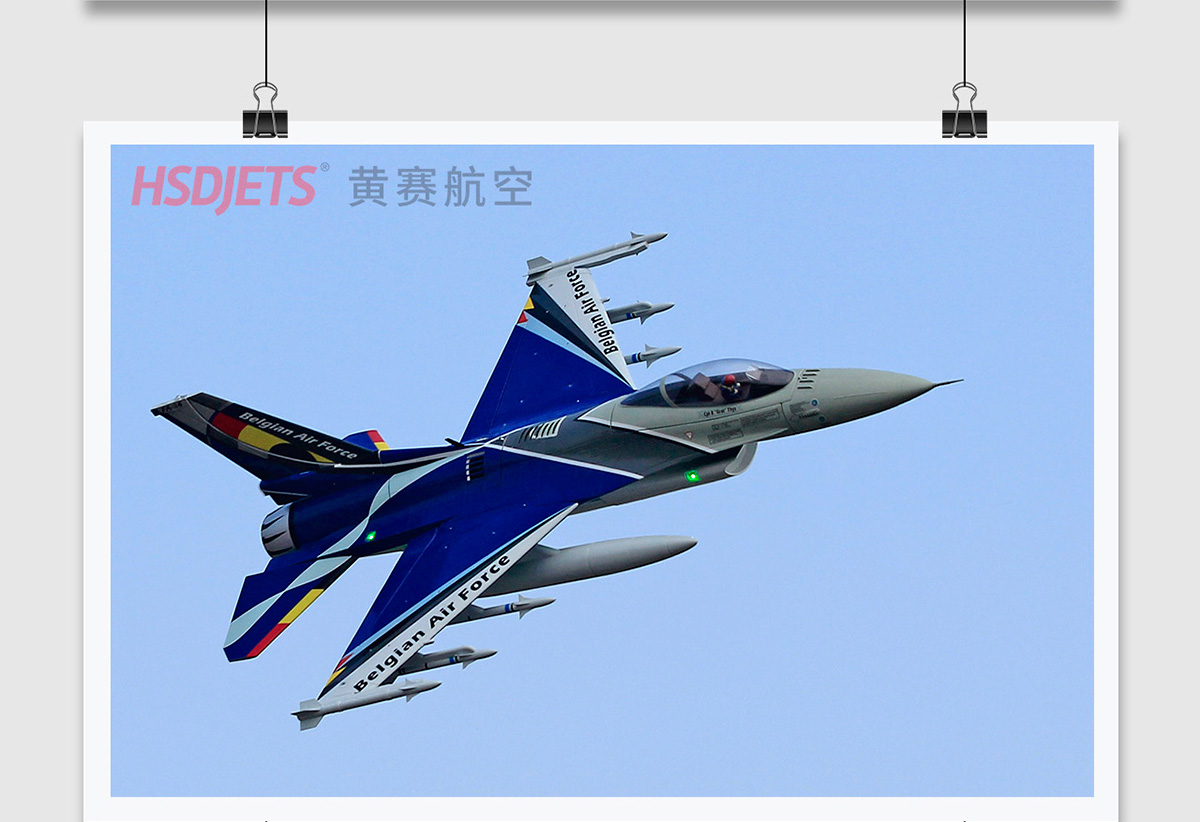

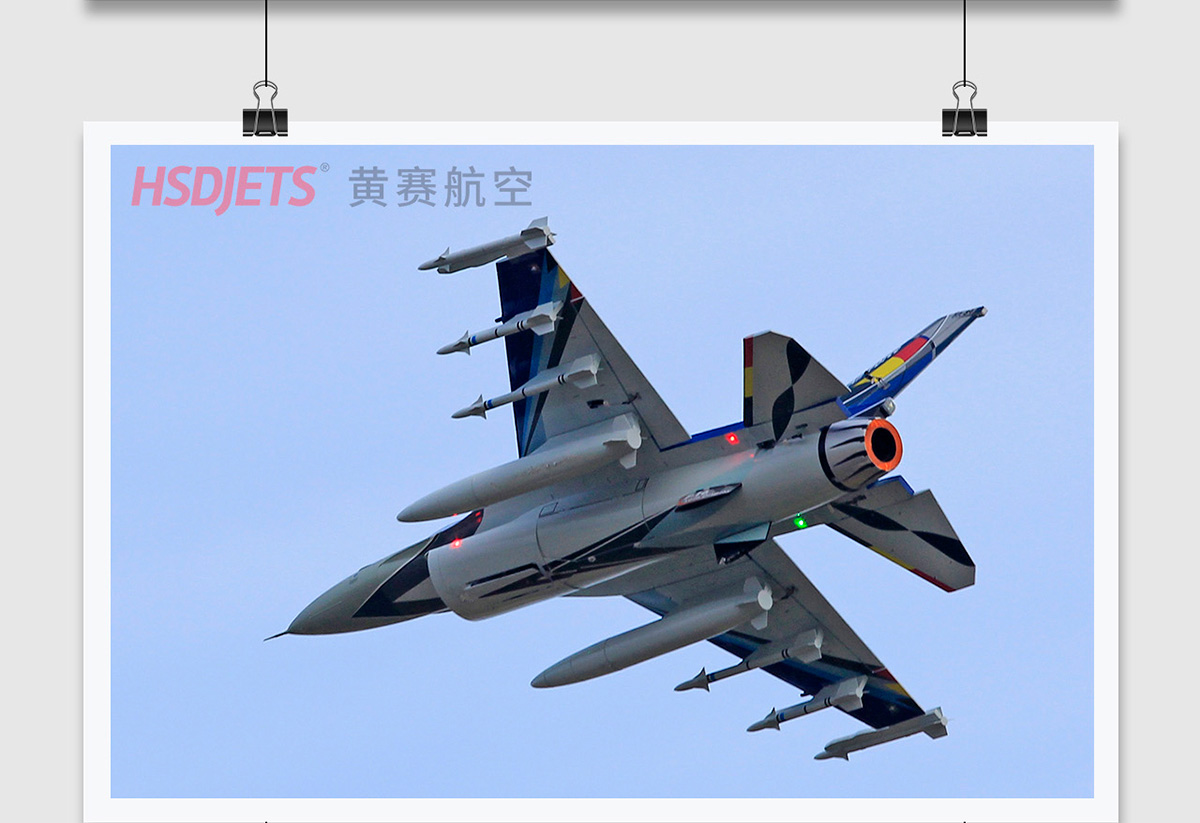

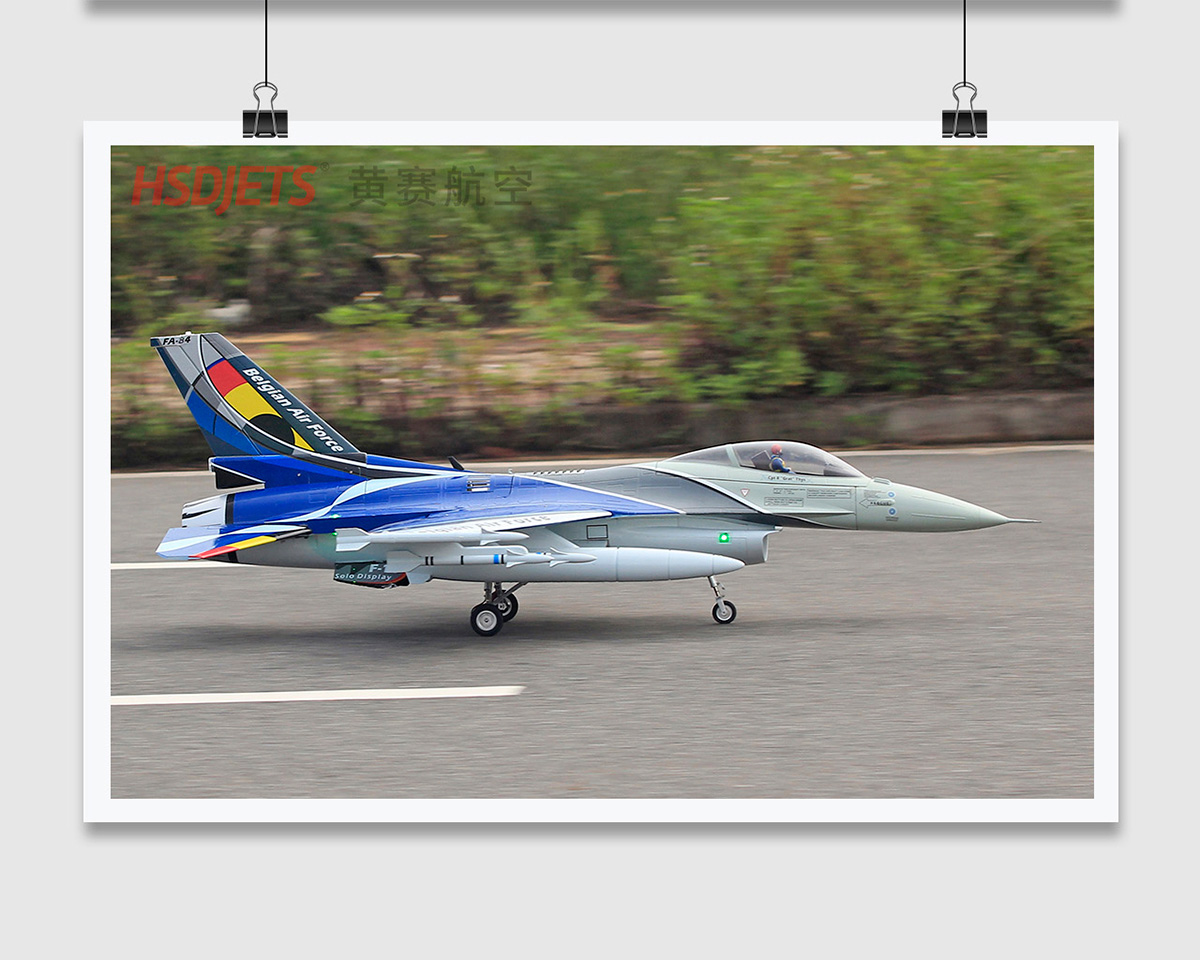

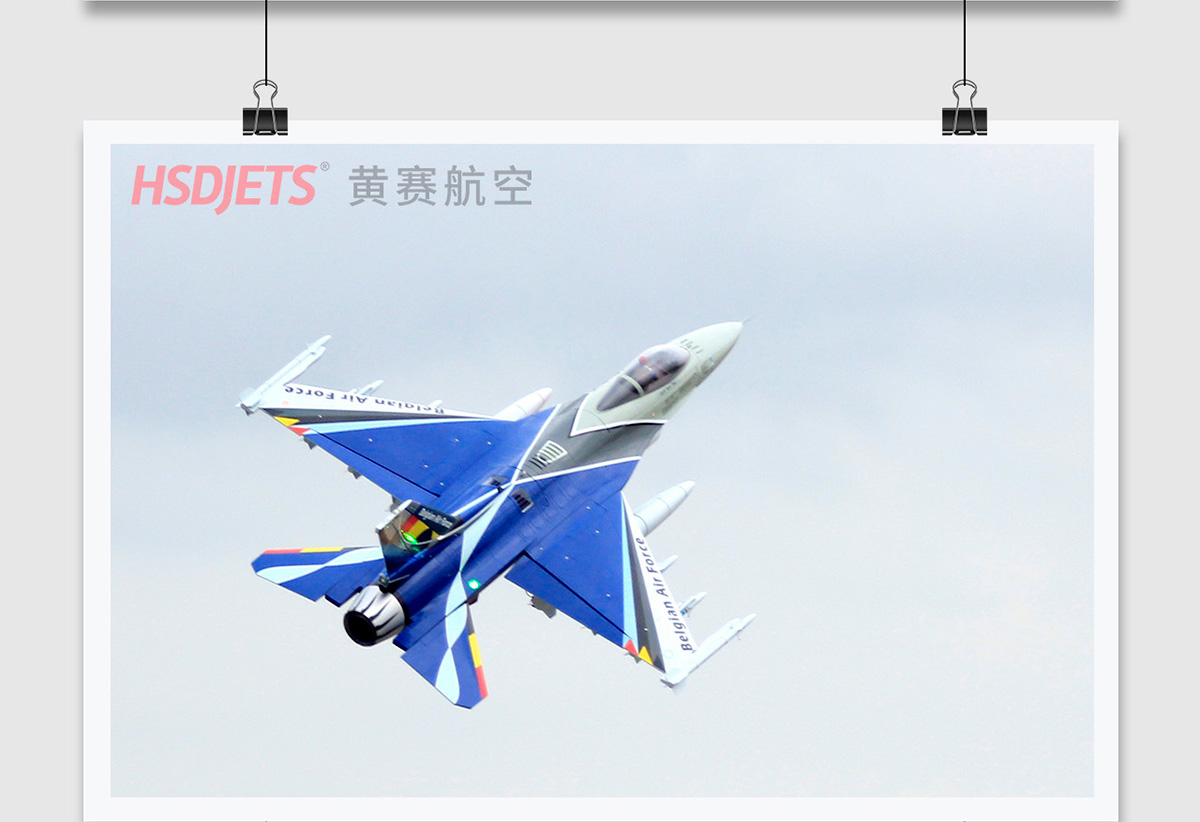

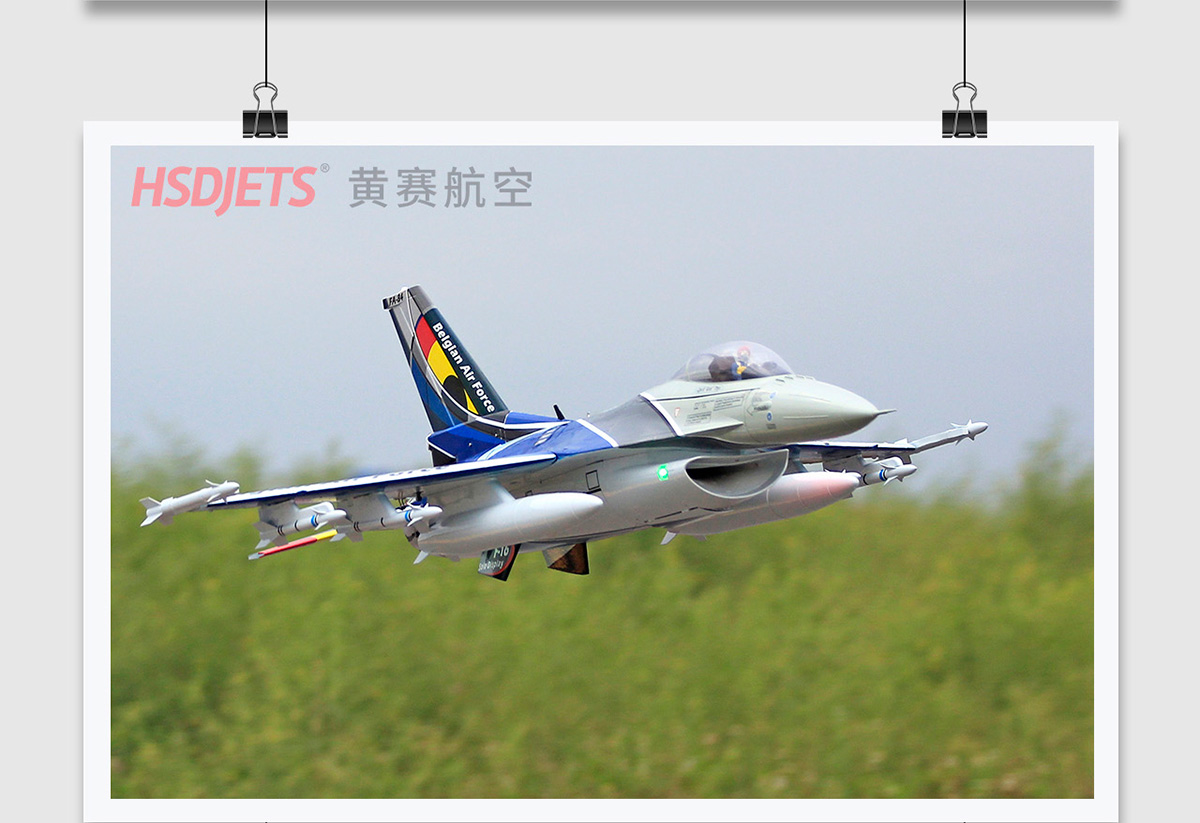

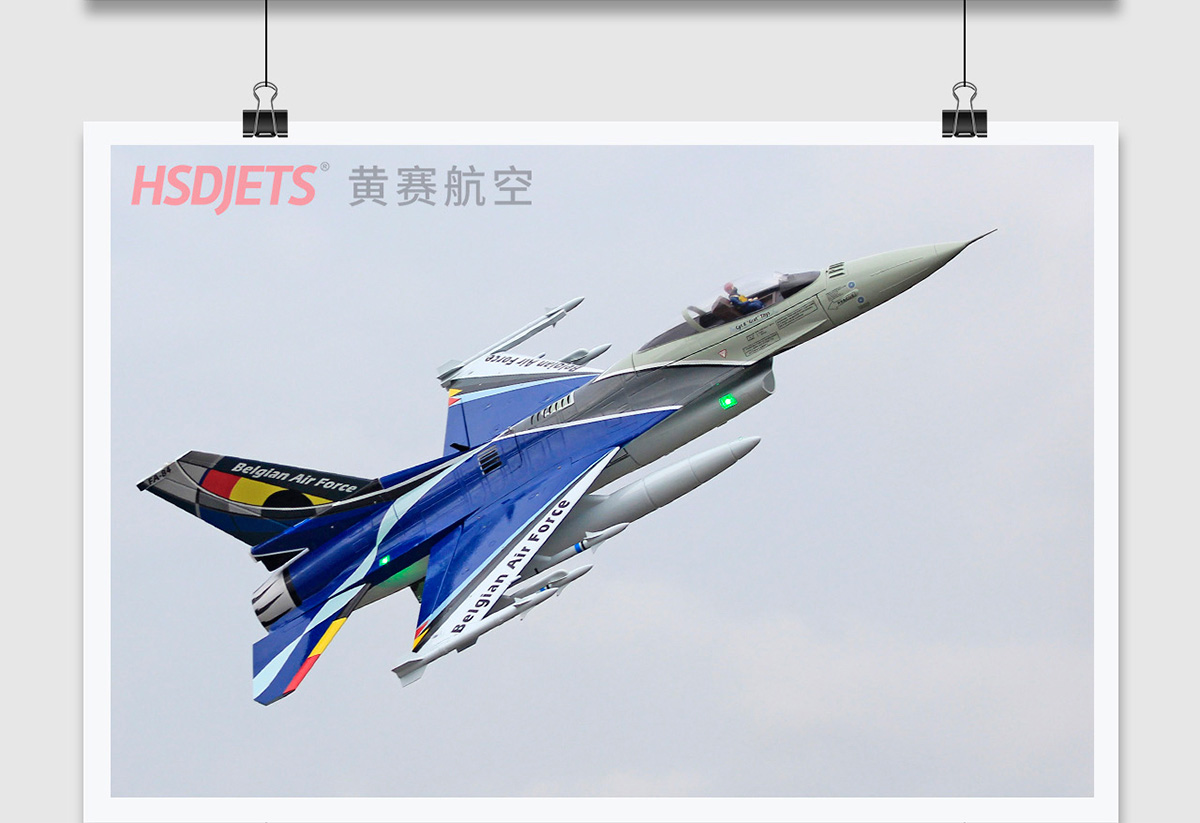

HSDJETS F-16 6kg Turbine Foam Jet V2, Belgian (PNP, no turbine)


*Not recommended for grass runways – See below

Availability: In stock

SKU: HSDA16060200 Categories: ,






Q: What does PNP mean?

A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed. *Note: If bought with a turbine, the turbine will not be pre-installed.

*: A: The reason grass runways are not recommended, is due to the size of the undercarriage and wheels, not all grass runways/flying fields are the same, many are rough with divots and if the grass is not smooth, flat or is not short this could rip the undercarriage out and we can’t warranty this. While Tarmac and Concrete tend to be a lot smoother, flatter and more uniformed.

Weight24.6400 kg
Dimensions57.3200 × 20.3900 × 13.2700 cm
Add Turbine

No Thank You, Swiwin SW-80B (8kg Thrust), More Power add the KingTech K-85G4+ (8.5kg Thrust)


Wingspan1344mm (52.9in)
Length1809mm (71.2in)
Flying Weight8.5kg (18.7 lb)(with 1800cc Aviation kerosene)
Turbine Engine6~8KG Turbine (required & not included)
Cruising speed150~200 km/h
Flying time3~5 mins
Wing area47.6 dm2
Wing load178.6 g/dm2
Main material20 times the import of aeromodelling EPO
Painting surfaceMatte environmental water-borne paint + decal
Suitable experience level□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System6 channel (required & not included)
Control SystemMFC-2085
Servos(All 7.4V High voltage)40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward)
25g×2 Metal gear with 150mm lead (left & right Aileron forward)
25g×1 Metal gear with 230mm lead (Rudder forward)
12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward)
12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward)
12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward)
12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)
Recommended Battery2S,7.4V,3300~5200mAh×2,LiPo with XT60 type plug(required & not included)
Elevator(Horizontal tail)Yes
Rudder(Vertical tail)Yes
The smoke systemNo

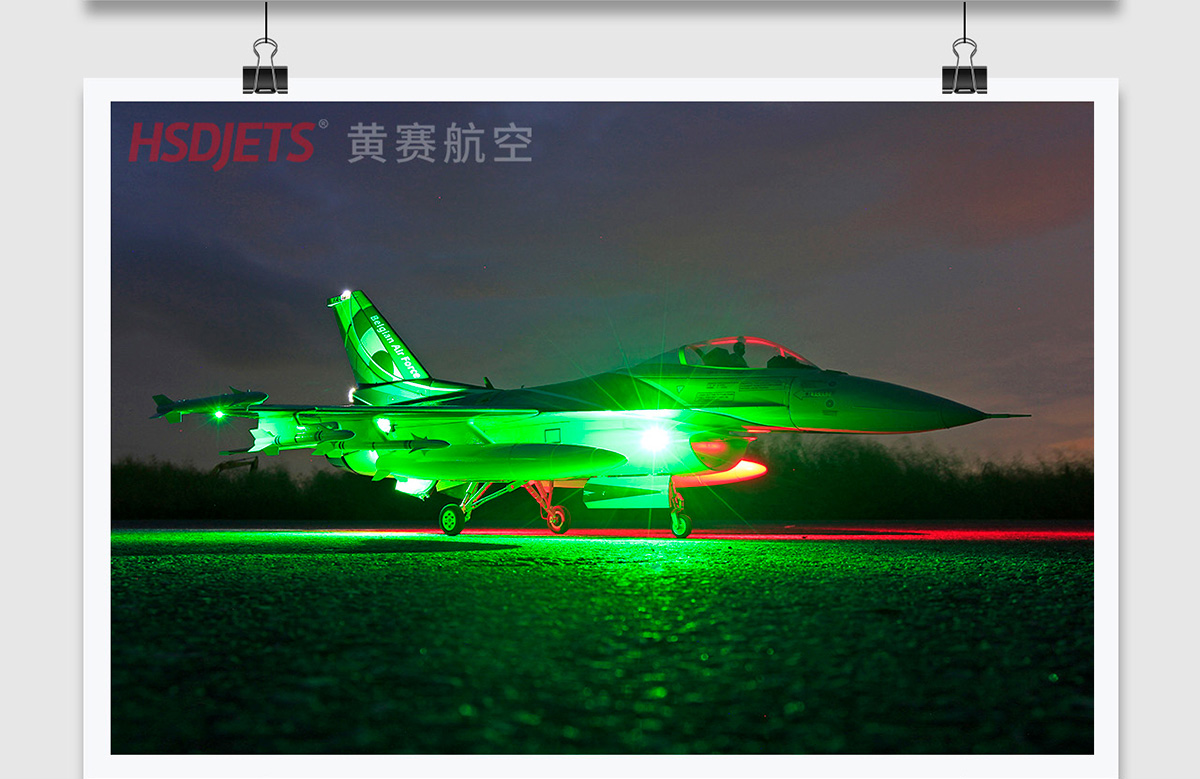

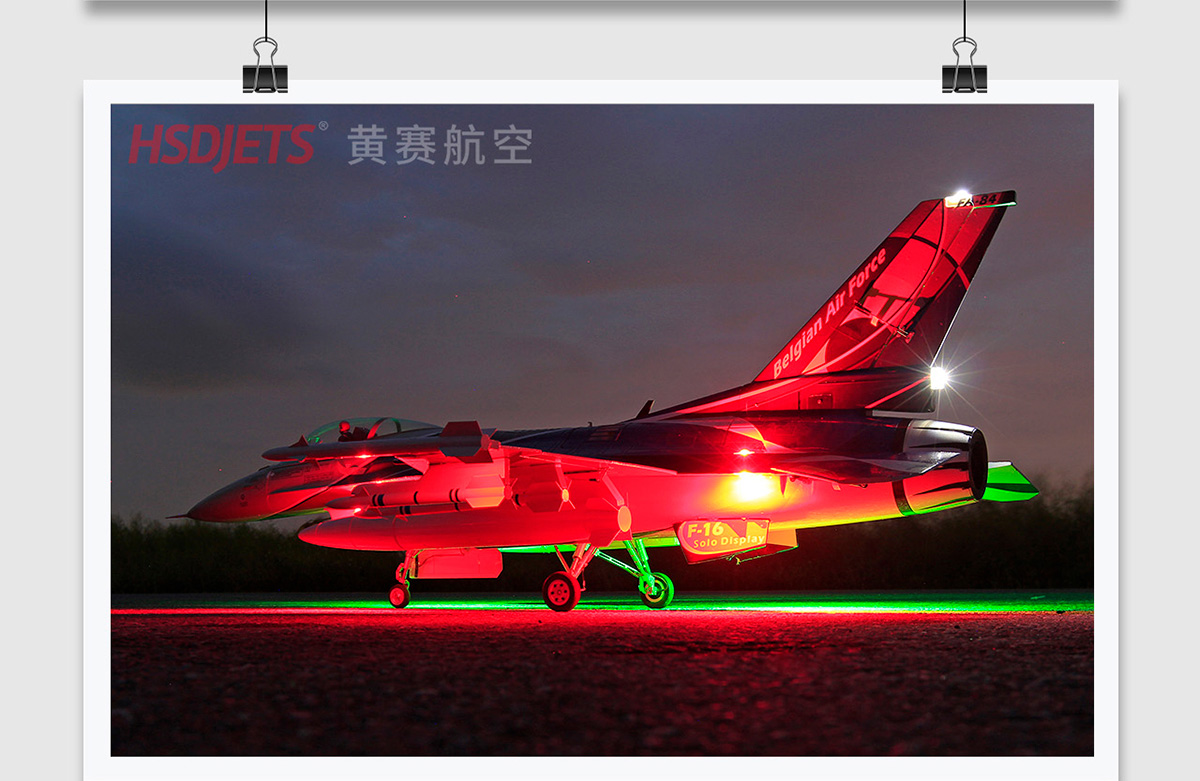

LED lights systemYes
Electromagnetic brake systemYes
Reinforced gyroSelective configuration (not included)
Packaging / SizePacking Box + Outer Box(Card mark)/1456×518×337(mm)
CG (Centre of Gravity)155160mm from the leading edge of the Main Wing
Landing GearsAll-metal simulation electronic retractable landing gear×3
Battery ChargerLiPo battery charger (required & not included)


  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Nose×1
  • Cockpit canopy×1
  • Vertical Stabilizer×1
  • Left Horizontal tail ×1
  • Right Horizontal tail ×1

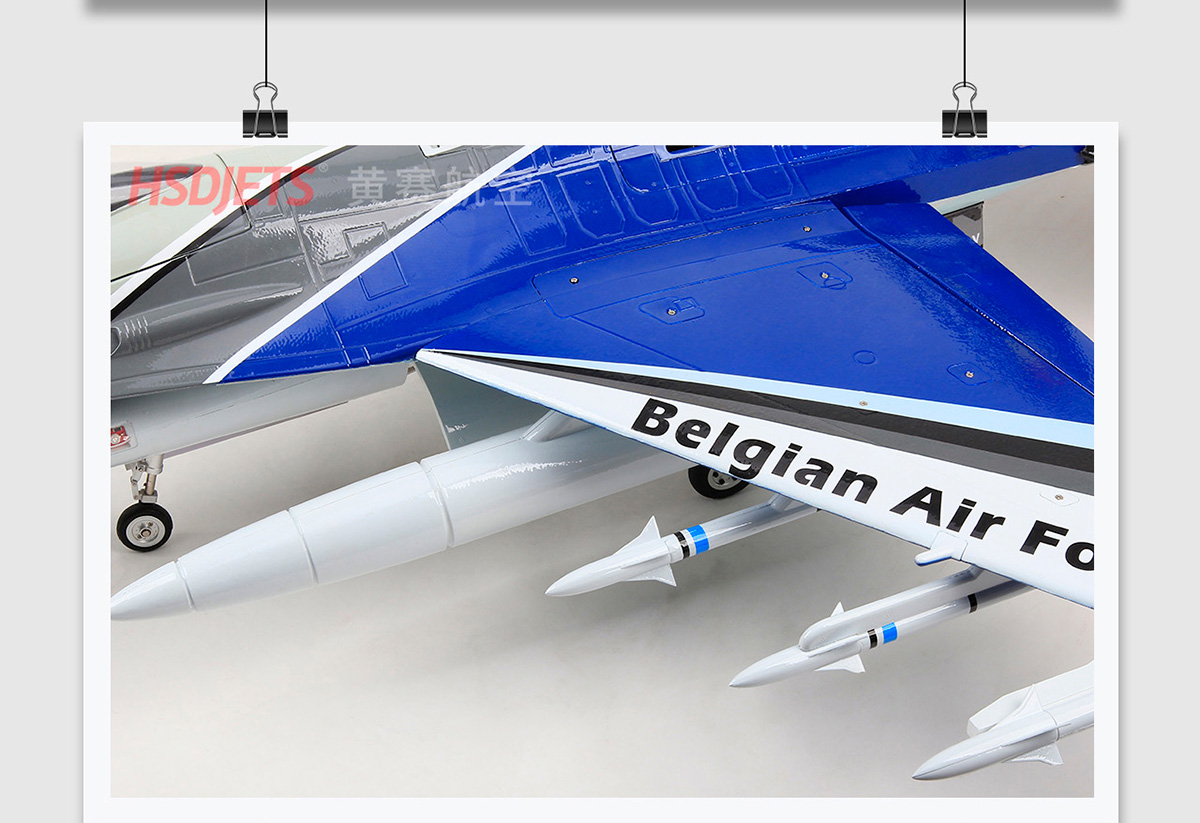

  • L/R Auxiliary tank ×1
  • L/R wingtip missile ×1
  • L/R wingtip missile pylon ×1
  • L/R No.1 missile ×1
  • L/R No.2 missile ×1
  • L/R tail fins ×1
  • Main wing carbon tube L=400mm external diameter 10mm×2
  • Accessories Bag ×1
    • Fuselage antenna ×1
    • Pitot×1
    • Screw (HA3×14mm)×10 (Nose & Engine)
    • Screw (HM3×6mm)×2 (Horizontal tail)
    • Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
    • Screw (KA3×16mm)×8 (Missile)
    • Screw (KA3×20mm)×8 (Missile)
    • Screw (KM3×60mm)×8 (Auxiliary tank)
    • Screw (HM3×10mm)×8 (Main wing)
  • HF-16 V2 Manual×1
  • MFC-2085 Manual×1


  • Turbine 6~8KG Thrust (required & not included)
  • 6 channel radio system(radio & receiver) (required & not included)
  • 2S, 7.4V, 3300~5200mAh×2 LiPo with XT60 plug (required & not included)
  • LiPo battery charger (required & not included)





HSDJETS F-16 v2 Foam Turbine Assembly and debugging guide.pdf
