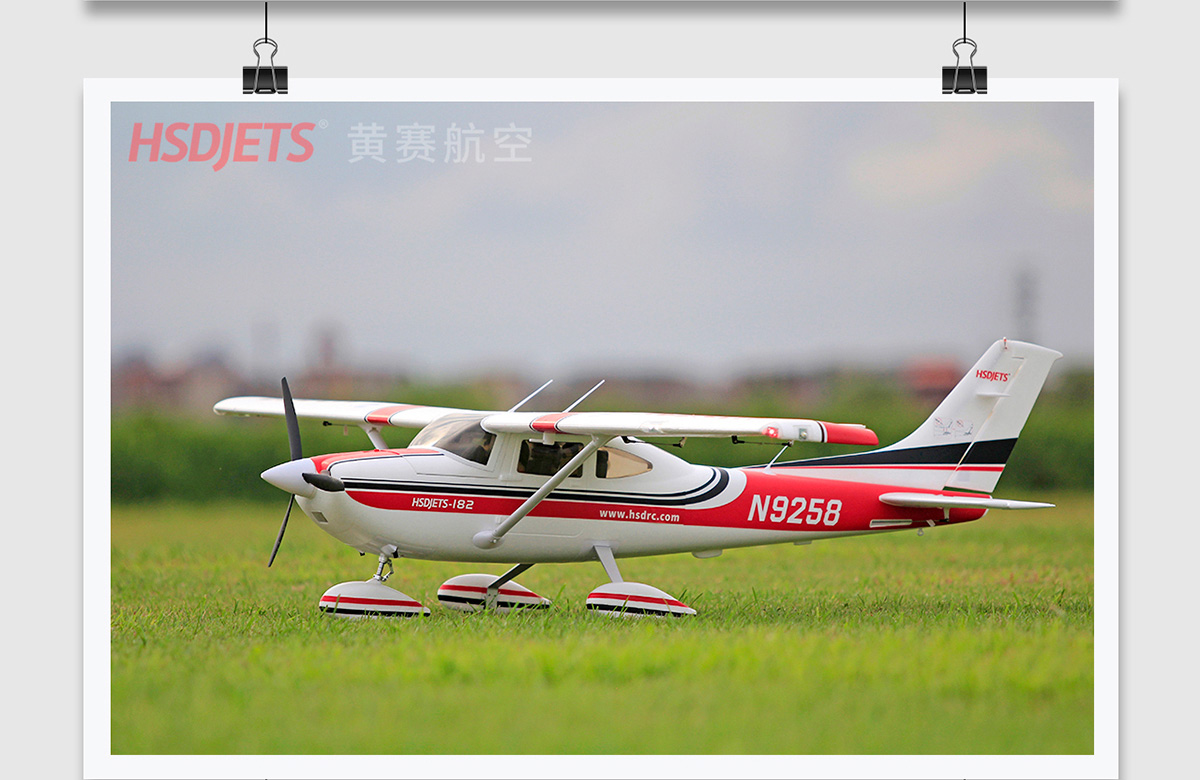

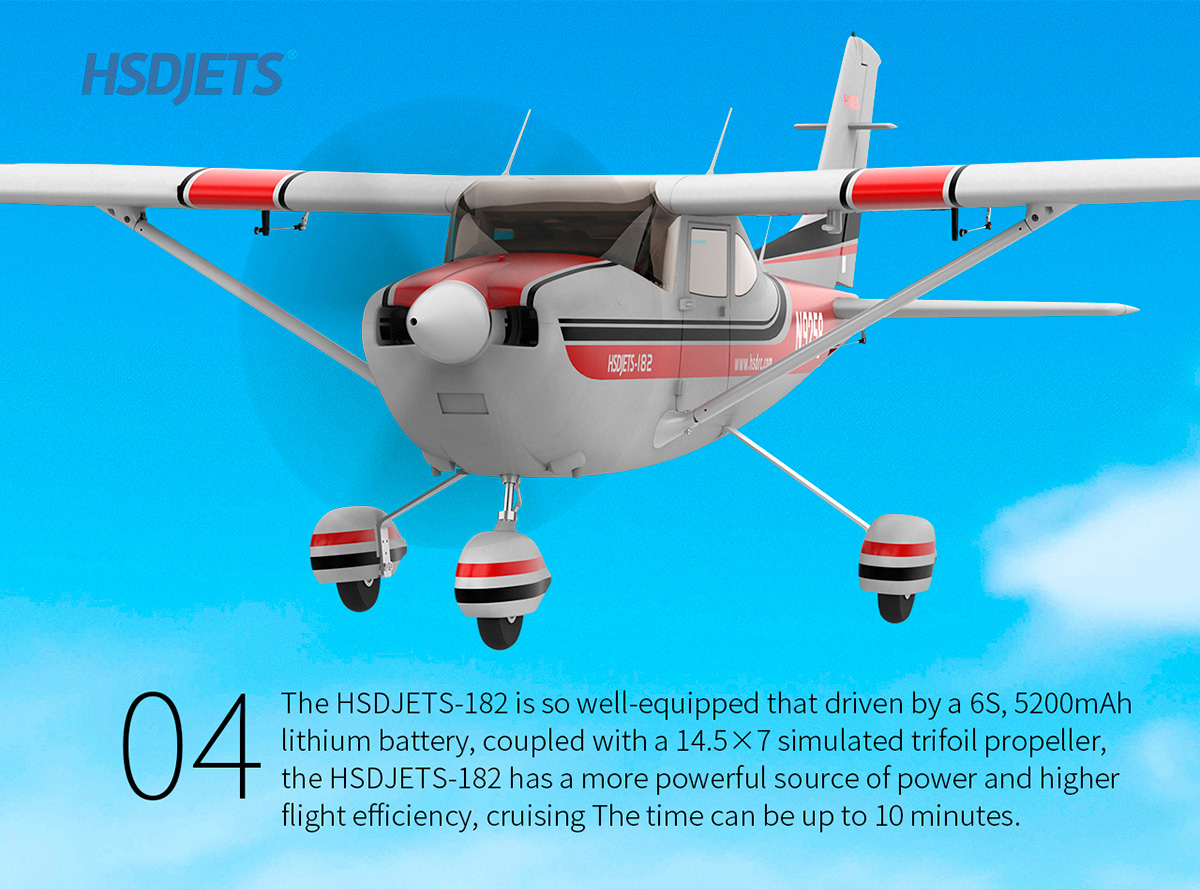

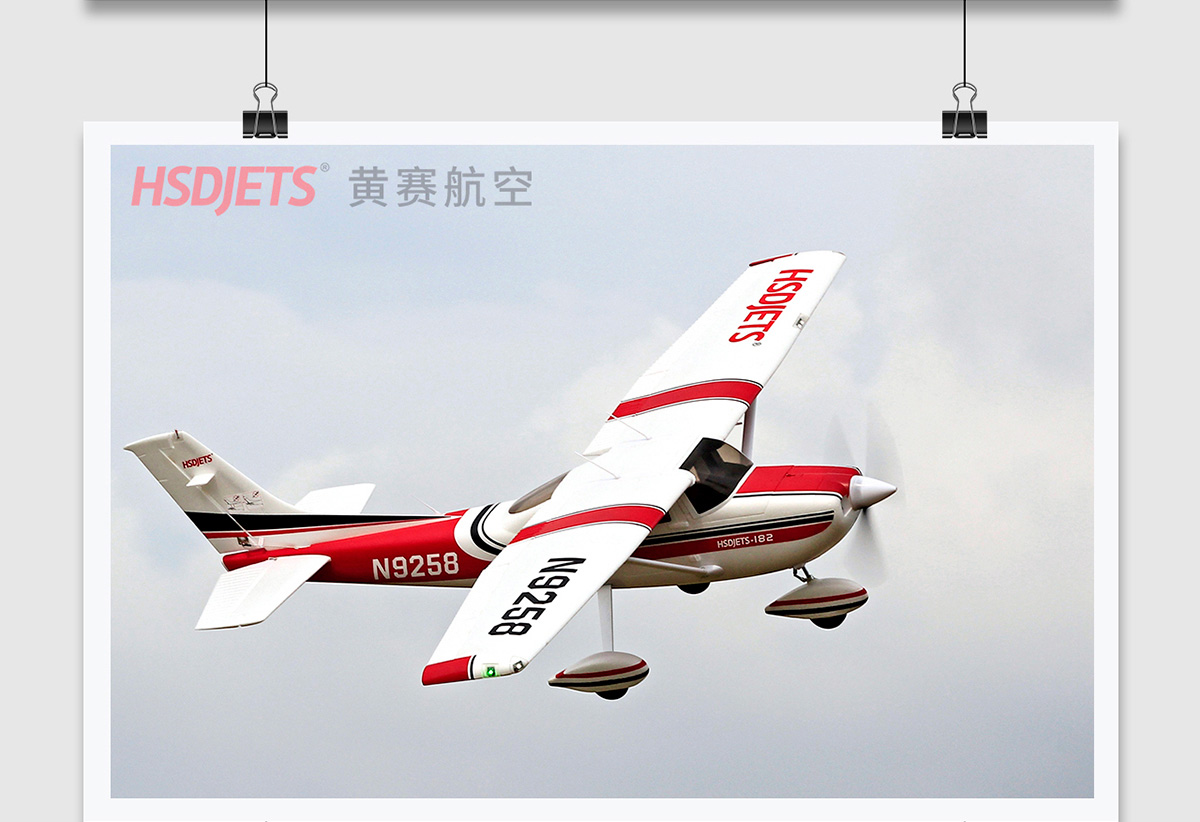

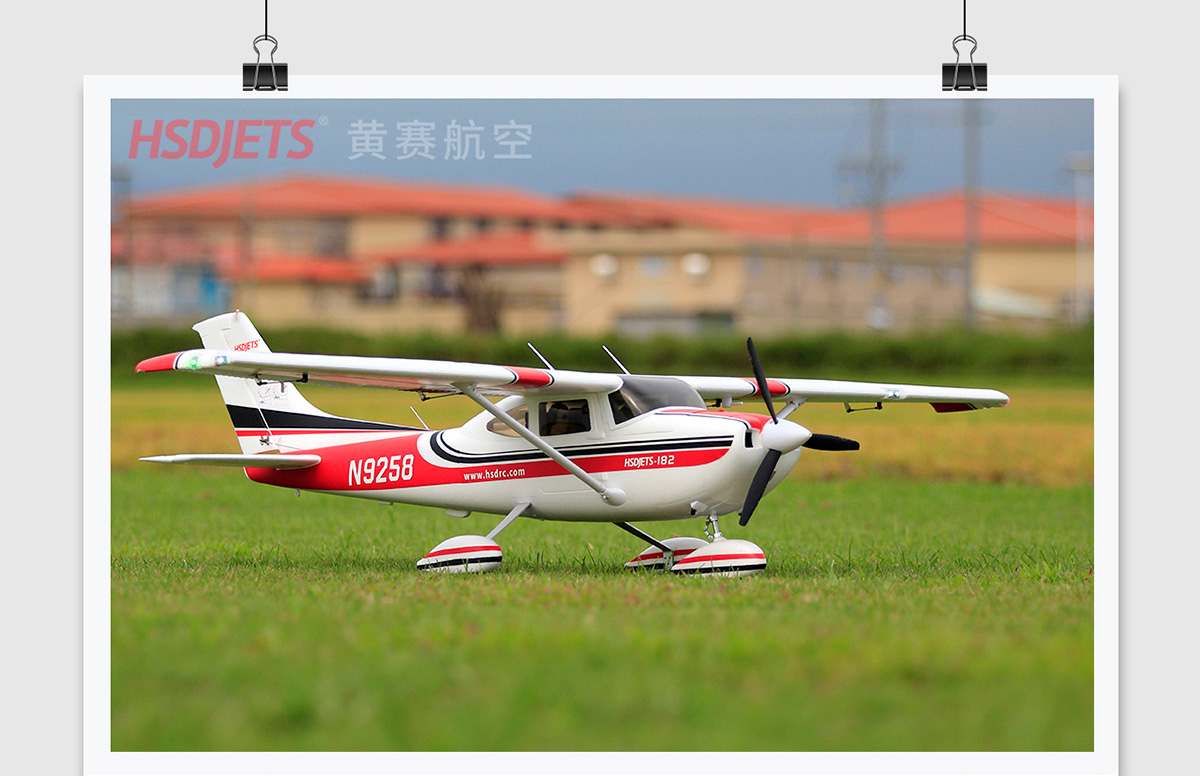

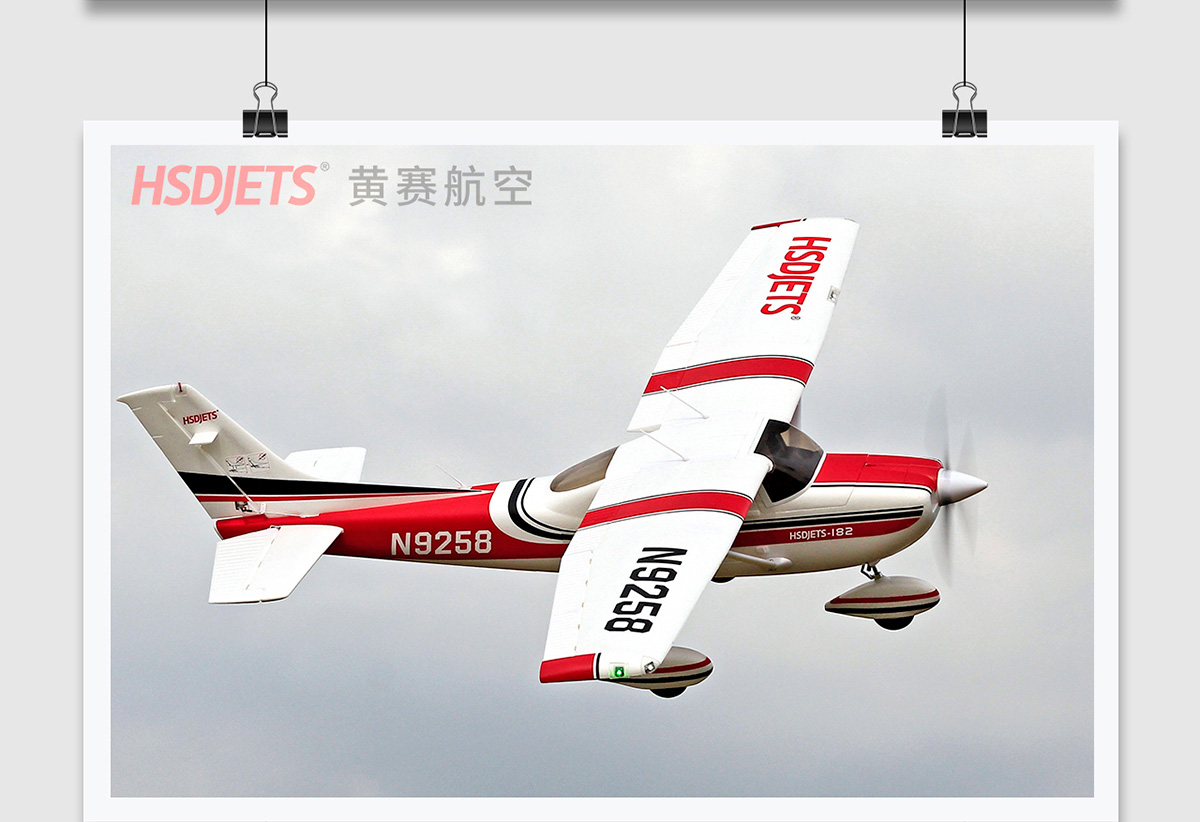

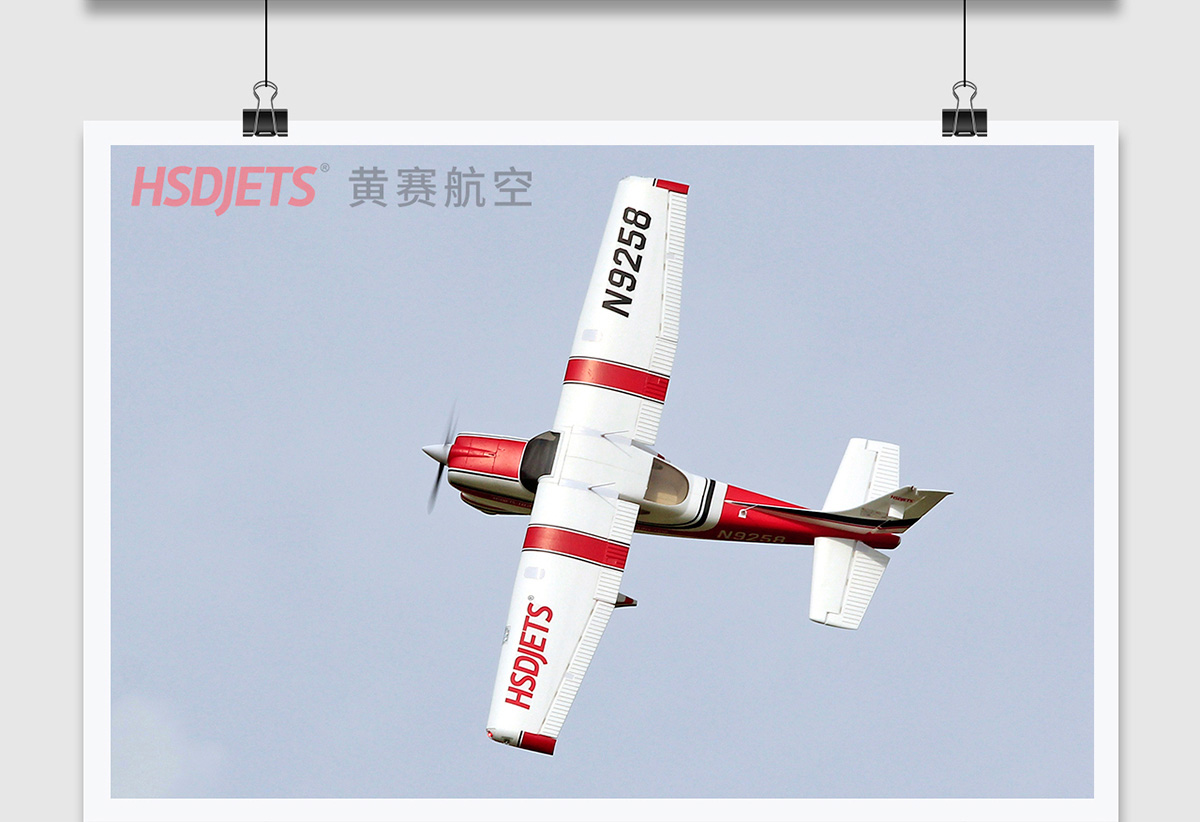

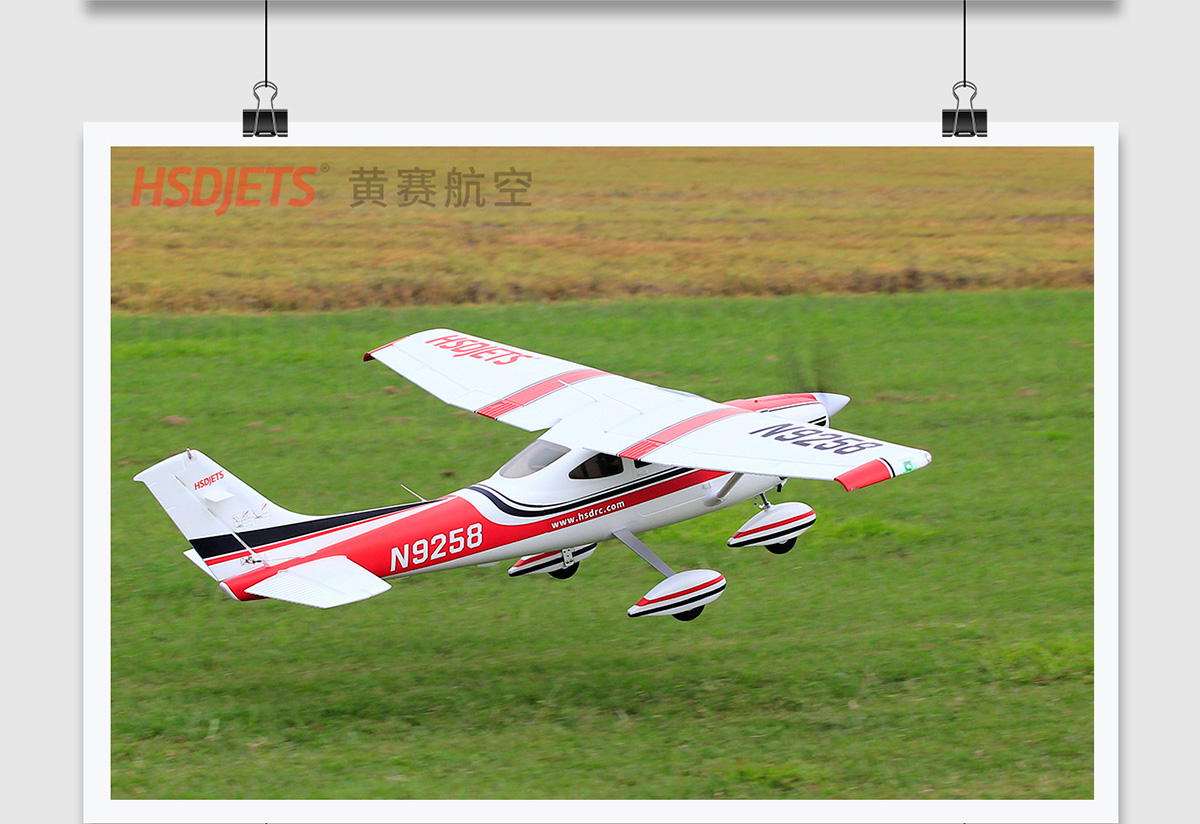

HSDJETS – 182 2000mm Red Colour PNP 6S

£389.00

Out of stock

Email when back in stock

SKU: A63 01 02 00 Category:

Please see our recommended flight battery set up Here





Q: What does PNP mean?

A: It means the aircraft has equipment already installed and tested, for example: servos, ESC, power system, landing gear, control system (UBEC is included but no power supply), light cables (according to the model of aircraft), but clients will have to supply or buy a remote control, receiver, battery, and charger themselves. The aircraft is 90% installed

EPO Glue recommended for extra strength and gluing some of the small parts

HSDJETS-2000mm-HSDJETS-182-PNP-Assembly-and-Pre-Flight-Instructions.pdf

Weight2.0000 kg
Dimensions10.0000 × 5.0000 × 5.0000 cm

Specifications

Wingspan2000 mm (78.7 in)
Length1586 mm (62.4 in)
Flying Weight5kg (11 lb)(with 22.2v 5200mAh 45C battery)
Cruising speed80~90 km/h
Flying time8~10 mins
Wing area56.1 dm2
Wing load89.1 g/dm2
Main material35 times EPO
Painting surfaceMatte environmental water-borne paint + decal
Suitable experience level□Zero basis ■Beginner □Intermediate □Advanced
PNP Assembly difficulty■☆10mins □★☆30mins □★★60mins
Suitable for ambient temperature0℃~40℃
Radio System6 channel (required & not included)

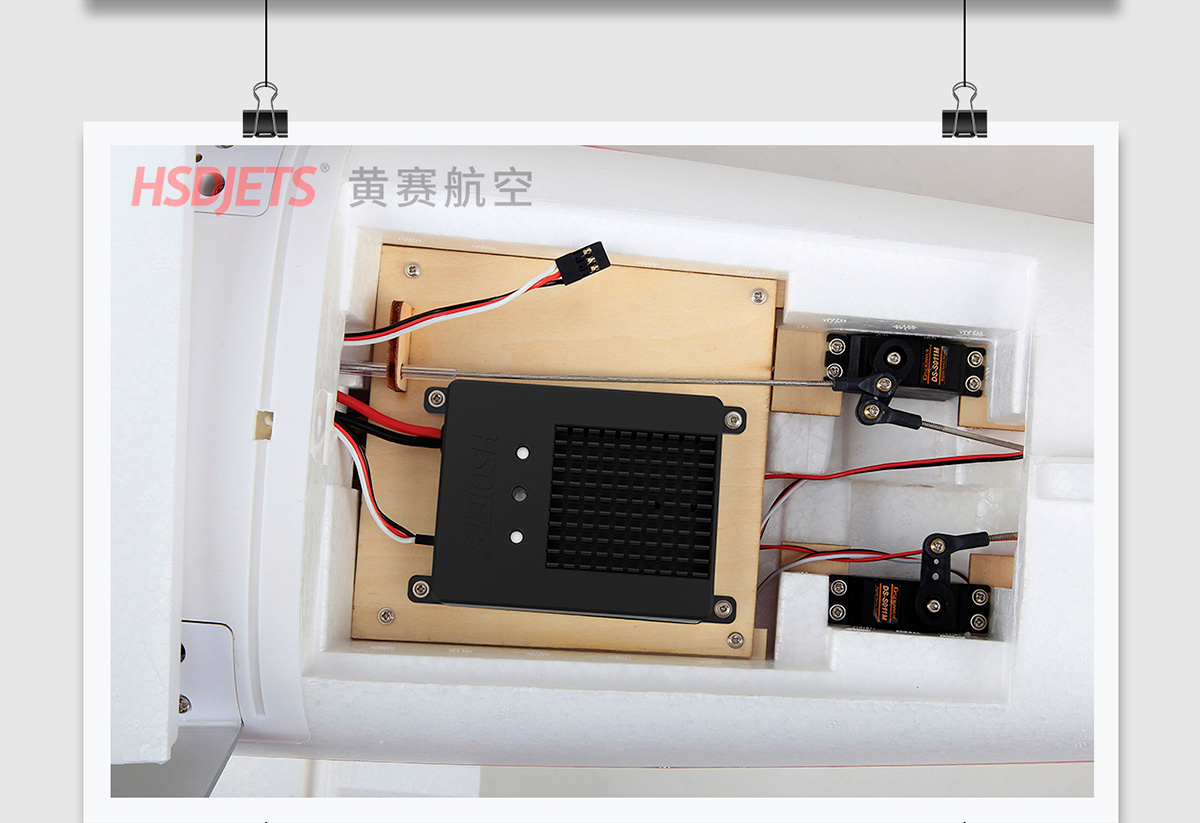

Control SystemMFC-2065
Motor5055-KV500
ESCHobbywing 80A
Propeller14.5×7 Trefoil oar
Servos7.4V 25g×4 Metal gear with 80mm lead (L/R Flaps & L/R ailerons forward)
7.4V 25g×2 Metal gear with 190mm lead (Elevator×1 & Rudder×1 forward)
Recommended Power Battery22.2V,5000~6000 mAh,45C Li-Po with AS150 type plug(required & not included)
Recommended Receiver Battery7.4V,2000~3000 mAh, Li-Po with XT60 type plug(required & not included)
AileronsYes
FlapsYes
Elevator(Horizontal tail)Yes

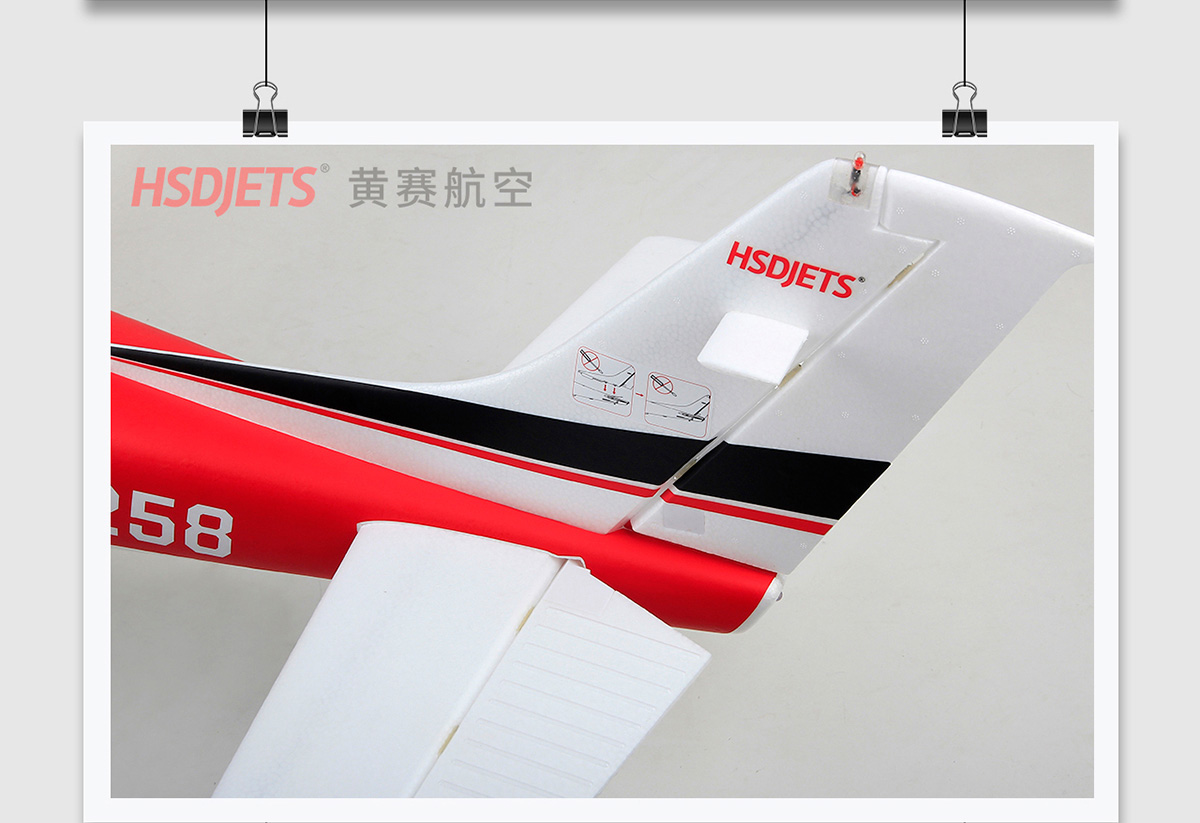

Rudder(Vertical tail)Yes

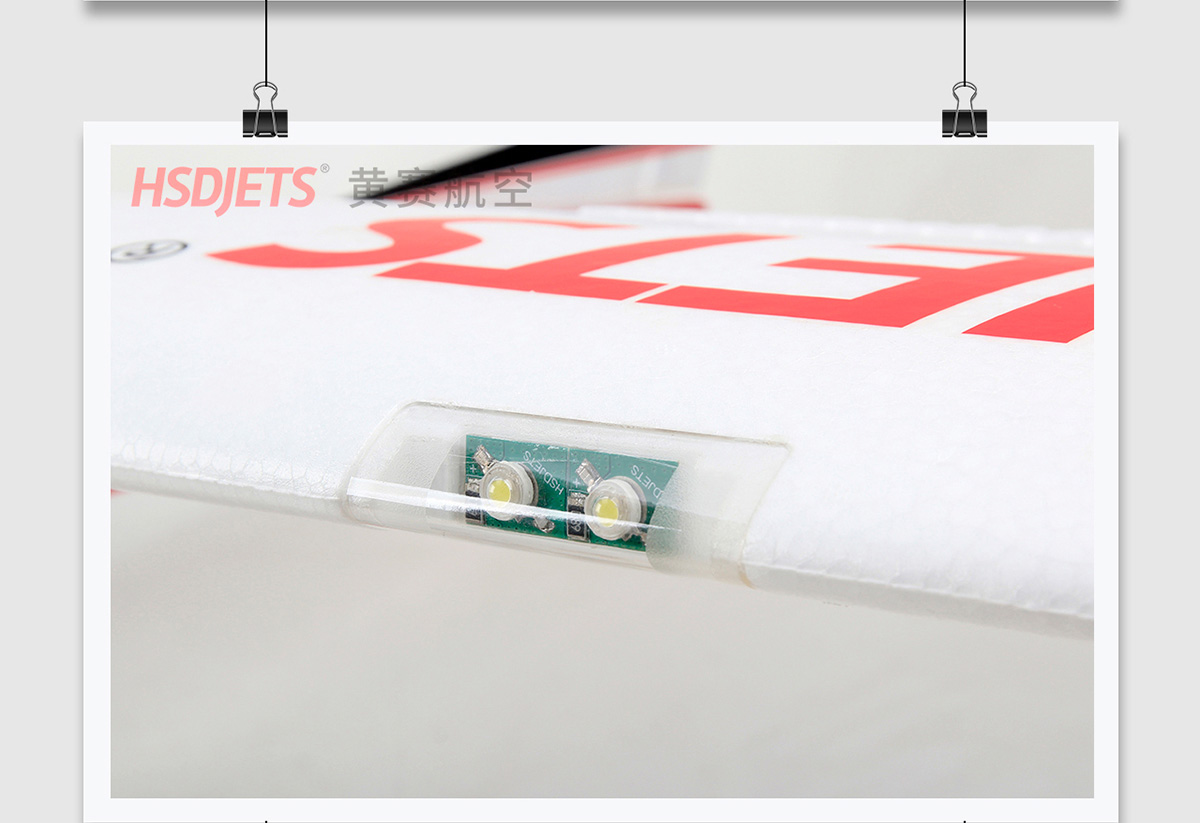

LED lights systemYes
Electromagnetic brake systemSelective configuration (not included)
Reinforced gyroSelective configuration (not included)
PontoonSelective configuration (not included)
Packaging / SizePacking Box + Outer Box(Card mark)/55.71×14.76×14.57 in
CG (Centre of Gravity)96mm from the leading edge of the Main Wing
Landing GearsFront three-point all-metal fixed landing gear×3
Battery ChargerLiPo battery charger (required & not included)

PACKAGE INCLUDES:

  • Fuselage×1 pcs
  • Left main wing×1 pcs
  • Right main wing×1 pcs
  • Probeller×1 pcs
  • Vertical tail×1 pcs
  • Landing gear×1 pcs
  • Left Horizontal tail ×1 pcs
  • Right Horizontal tail×1 pcs
  • L/R wing diagonal tube×1 pcs
  • 1# Main wing bolt rod L=625mm external diameter 16mm×1 pcs
  • 2# Main wing bolt rod L=420mm external diameter 10mm×1 pcs
  • Horizontal Stabilizer bolt rod L=500mm external diameter 6mm×1 pcs
  • Vertical tail diversion stabilizer×1 pcs
  • Accessories Bag 1 ×1 pcs
    • Screw (HA3×10mm)×4 pcs (Nose landing gear)
    • Screw (PM3×15mm)×8 pcs (Rear landing gear)
    • Screw (PM3×10mm)×1 pcs (Fairing)
    • Screw (HM3×10mm)×4 pcs (Paddle clamp)
    • Screw (PA3×18mm)×4 pcs (Wing brace)
    • Diagonal brace bolt and safety×2 pcs (Wing brace)
  • Accessories Bag 2 ×1 pcs
    • 100mm signal line(JR male+JR male) ×4 pcs
  • Manual×1 pcs

REQUIRES:

  • 6 channel radio system(radio & receiver) (required & not included)
  • 22.2V,5000~6000 mAh,45C Li-Po with AS150 type plug (required & not included)
  • 7.4V,2000~3000 mAh, Li-Po with XT60 type plug (required & not included)
  • LiPo battery charger (required & not included)

Videos





Manuals

HSDJETS-2000mm-HSDJETS-182-PNP-Assembly-and-Pre-Flight-Instructions.pdf

Images

Parts

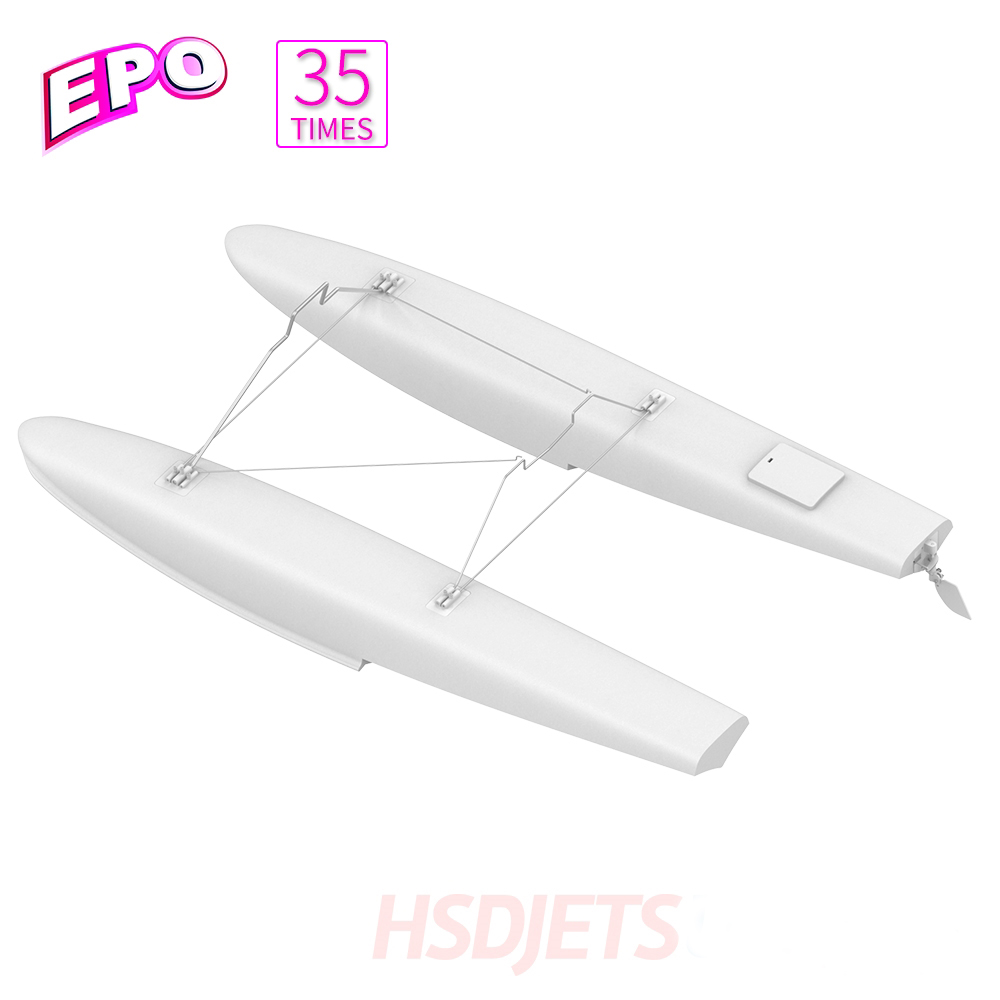

HSDJETS Cessna 182 Float Set 2000mm (Requires Servo)
